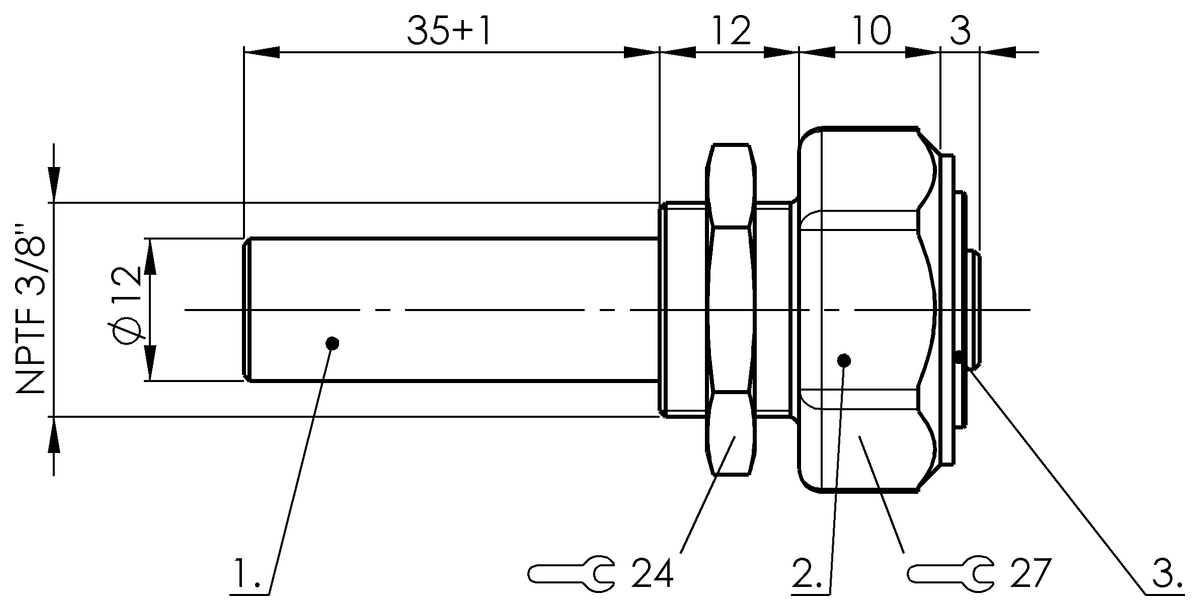

BCS00A5 (BCS S10T403-XXSFNC-SZ02-T07) - Capacitive sensors with special properties - Dimension: Ø 18 x 61 mm, Series: S10, Thread (A): J 3/8" NPTF, Installation: non-flush, Connection: Connector, Special connector-Special connector, Switching frequency: 100 Hz, Interface: Special interface, Sensitivity: adjustable on base unit, Housing material: 1.4301 stainless steel, Material sensing surface: PTFE, Ambient temperature: -10...180 °C, Pressure rating max.: 6 bar, Approval/Conformity: CE, WEEE, EAC, IP rating: IP68
Series
S10
Thread (A)
J 3/8" NPTF
Installation
non-flush
Connection
Connector, Special connector-Special connector
Switching frequency
100 Hz
Interface
Special interface
Sensitivity
adjustable on base unit
Housing material
1.4301 stainless steel
Material sensing surface
PTFE
Ambient temperature
-10...180 °C
Pressure rating max.
6 bar
Approval/Conformity
CEWEEEEAC
IP rating
IP68
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Manual
BCS HT-SENSOREN | (German)
Taric code
85365019
Disposal instructions
Download
