Balluff
BCS M08T4E1-NOM30G-EP02
Remplacement recommandé:
Prix hors TVA
Demander un devis

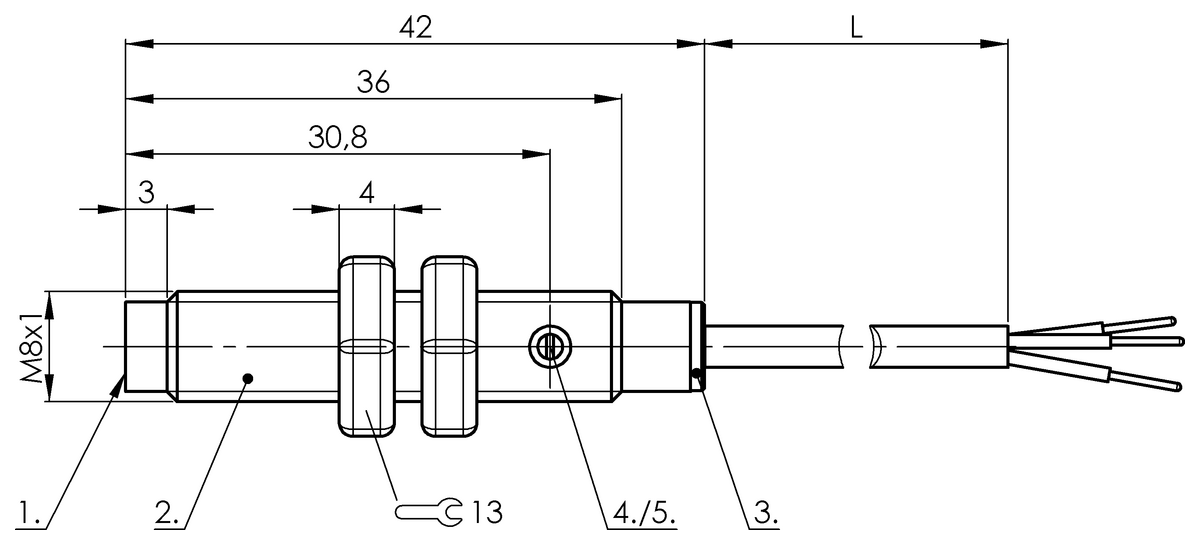

BCS002L (BCS M08T4E1-NOM30G-EP02) - Capacitive proximity switches for object detection - Dimension: Ø 8 x 42 mm, Series: M08, Thread (A): M8x1, Installation: non-flush, Connection: Cable, 2.00 m, PUR, Switching output: NPN normally closed (NC), Switching frequency: 100 Hz, Range: 0.1...3 mm, Sensitivity: Switching distance adjustable, Housing material: 1.4301 stainless steel, Material sensing surface: PTFE, Ambient temperature: -10...70 °C, Operating voltage Ub: 11...30 VDC, Approval/Conformity: CE, cULus, EAC, WEEE, IP rating: IP65
Series
M08
Thread (A)
M8x1
Installation
non-flush
Connection
Cable, 2.00 m, PUR
Switching output
NPN normally closed (NC)
Switching frequency
100 Hz
Range
0.1...3 mm
Sensitivity
Switching distance adjustable
Housing material
1.4301 stainless steel
Material sensing surface
PTFE
Ambient temperature
-10...70 °C
Operating voltage Ub
11...30 VDC
Approval/Conformity
CEcULusEACWEEE
IP rating
IP65
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Manual
BCS STANDARD | (German)
Taric code
85365019
Disposal instructions
Download
Manuels, modèles CAO, certificats et autres documents — sur le site du fabricant :
Ouvrir la page produit sur le site du fabricant
