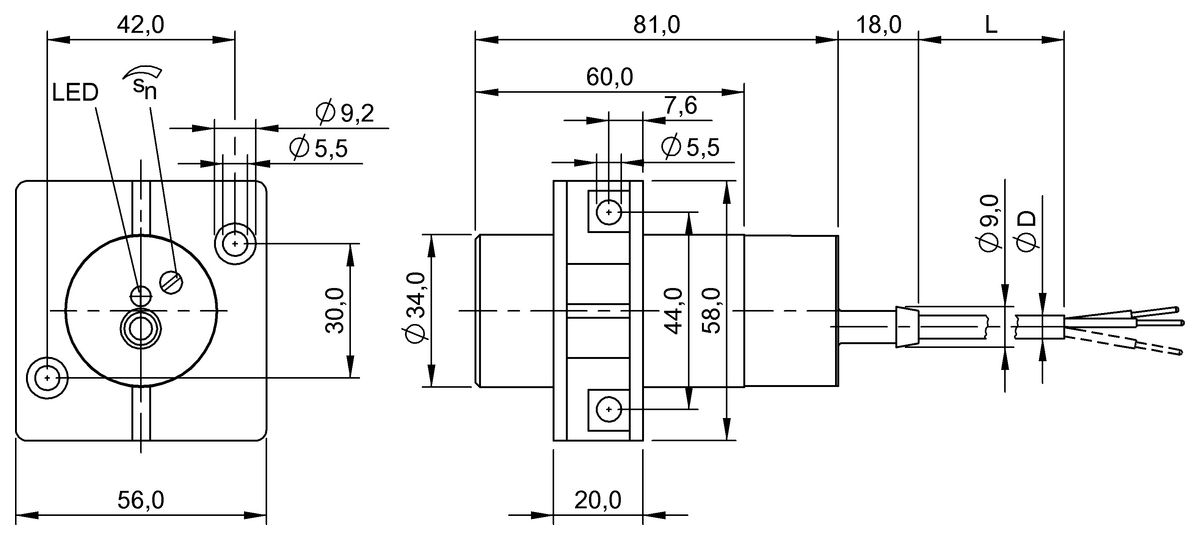

BCS0006 (BCS G34KN2-UOT20G-AV02) - Capacitive proximity switches for object detection - Dimension: Ø 34 x 99 mm, Installation: non-flush, Connection: Cable, 2.00 m, PVC, Switching output: Normally closed (NC), Switching frequency: 40 Hz, Range: 0...16.2 mm, Sensitivity: Switching distance adjustable, Housing material: PBT, Material sensing surface: PBT, Ambient temperature: -25...70 °C, Operating voltage Ub: 20...250 VDC/20...250 VAC, Approval/Conformity: CE, WEEE, IP rating: IP65
Installation
non-flush
Connection
Cable, 2.00 m, PVC
Switching output
Normally closed (NC)
Switching frequency
40 Hz
Range
0...16.2 mm
Sensitivity
Switching distance adjustable
Housing material
PBT
Material sensing surface
PBT
Ambient temperature
-25...70 °C
Operating voltage Ub
20...250 VDC/20...250 VAC
Approval/Conformity
CEWEEE
IP rating
IP65
Manufacturer
Balluff GmbH
Taric code
85365019
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
