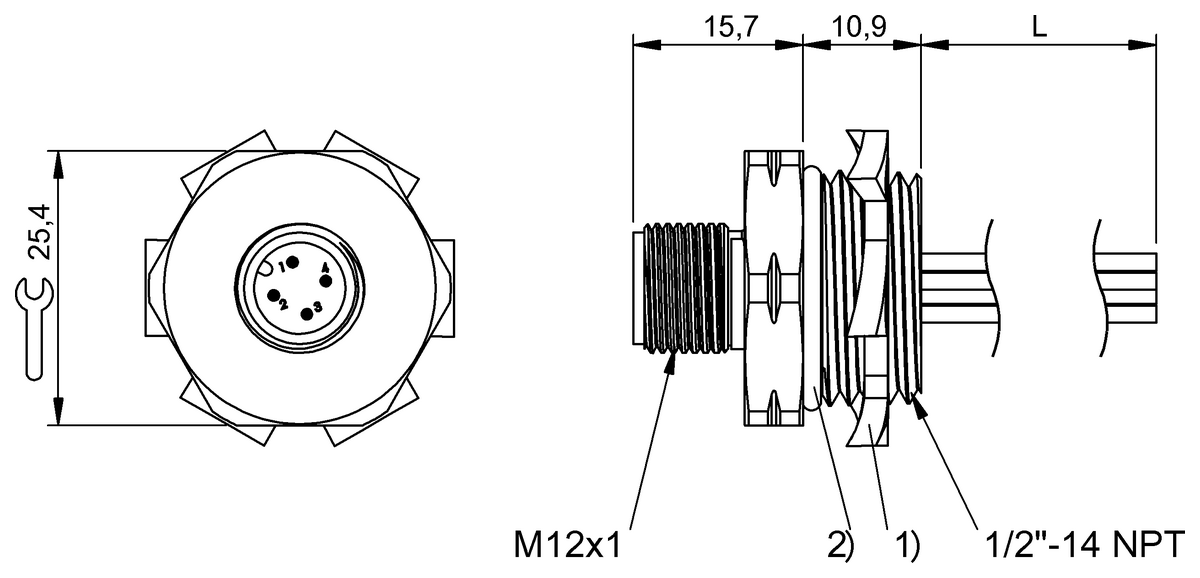

BCC0CUM (BCC S454-0000-2A-RN060-006) - Receptacles - Connection: M12x1-Male, straight, 4-pin, A-coded, Number of conductors: 4, Conductor cross-section: 22 AWG, Lead length L: 0.60 m, Operating voltage Ub: 300 VDC / 300 VAC, Rated current (40 °C): 4.0 A, IP rating: IP67, Approval/Conformity: cULus, WEEE
Connection
M12x1-Male, straight, 4-pin, A-coded
Number of conductors
4
Conductor cross-section
22 AWG
Lead length L
0.60 m
Operating voltage Ub
300 VDC / 300 VAC
Rated current (40 °C)
4.0 A
IP rating
IP67
Approval/Conformity
cULusWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Taric code
85444290
Substances of concern
Download
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
