Balluff
BCC M62L-M61L-70-350-PX0LP4-050
Remplacement recommandé:
Prix hors TVA
Demander un devis

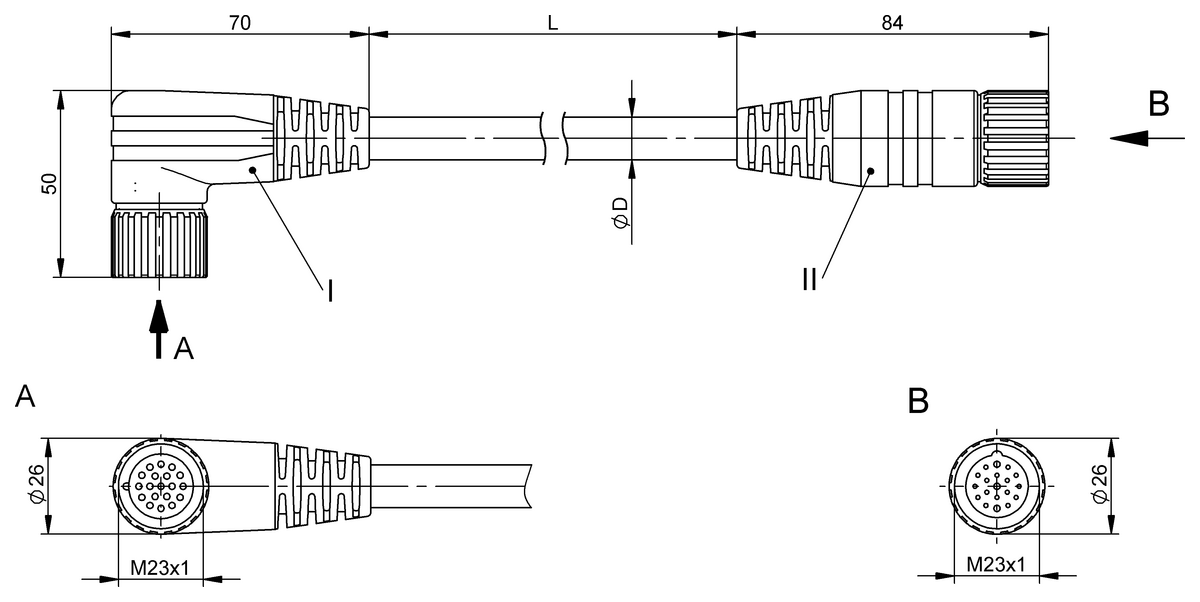

BCC0CP1 (BCC M62L-M61L-70-350-PX0LP4-050) - Double-ended cordsets - Connection 1: M23x1-Female, angled, 19-pin, Connection 2: M23x1-Male, Straight, 19-pin, Cable: PUR black, 5 m, drag chain compatible, Number of conductors: 19, Cable temperature, fixed routing: -50...80 °C, Cable temperature, flexible routing: -25...80 °C, Operating voltage Ub: 150 VDC / 150 VAC, IP rating: IP67/IP67, Approval/Conformity: CE, EAC, WEEE
Connection 1
M23x1-Female, angled, 19-pin
Connection 2
M23x1-Male, Straight, 19-pin
Cable
PUR black, 5 m, drag chain compatible
Number of conductors
19
Cable temperature, fixed routing
-50...80 °C
Cable temperature, flexible routing
-25...80 °C
Operating voltage Ub
150 VDC / 150 VAC
IP rating
IP67/IP67
Approval/Conformity
CEEACWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Taric code
85444290
Disposal instructions
Download
Manuels, modèles CAO, certificats et autres documents — sur le site du fabricant :
Ouvrir la page produit sur le site du fabricant
