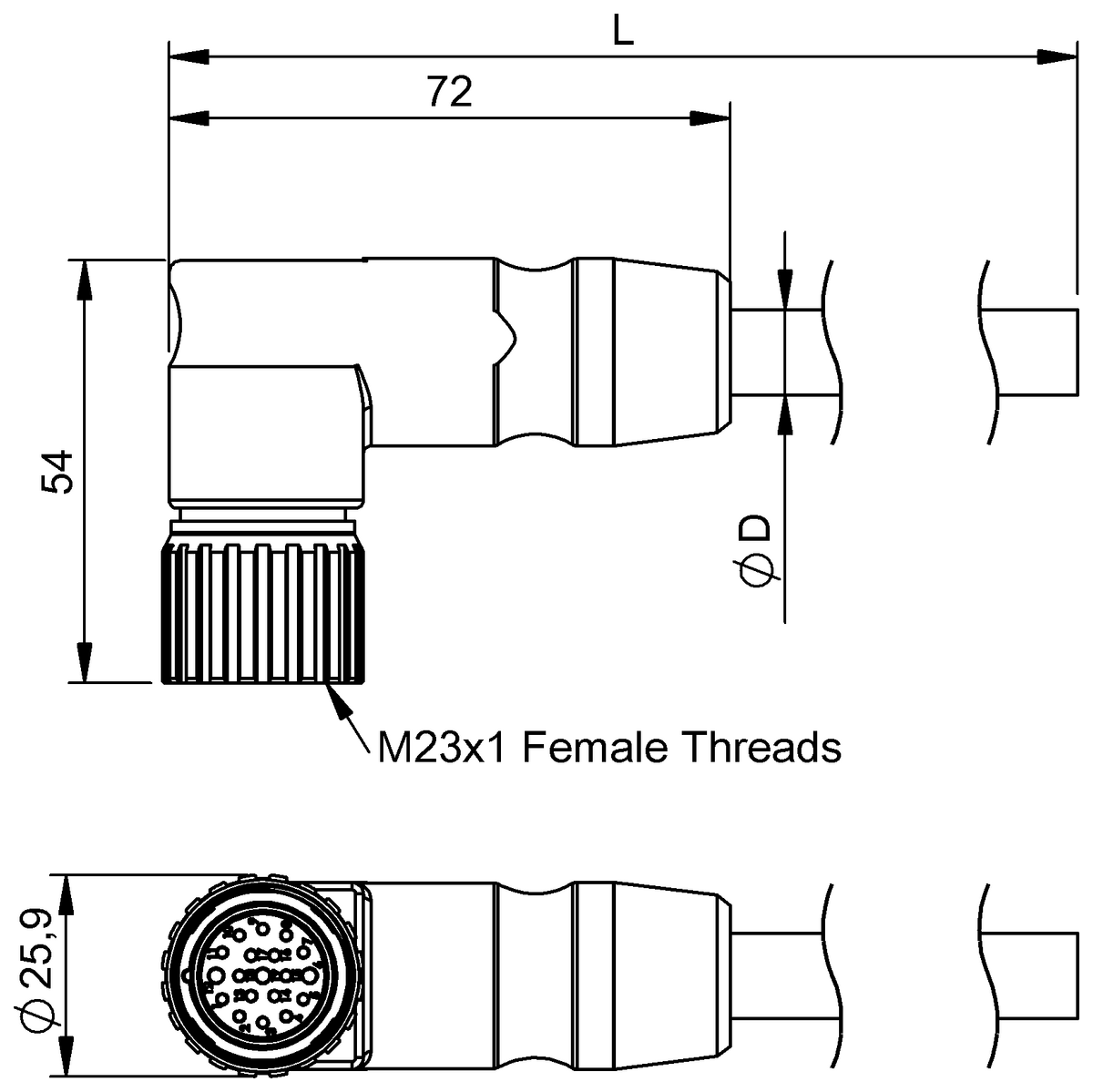

BCC0FT0 (BCC M62L-0000-10-022-PX0LP5-100) - Single-ended cordsets - List price Deutschland: 273,11 EUR - Connection: M23x1-Female, angled, 19-pin, Cable: PUR black, 10 m, Number of conductors: 19, Conductor cross-section: 18 AWG/22 AWG, Cable temperature, fixed routing: -40...80 °C, Operating voltage Ub: 150 VDC / 150 VAC, IP rating: IP67, Approval/Conformity: CE, cULus, WEEE
Connection
M23x1-Female, angled, 19-pin
Cable
PUR black, 10 m
Number of conductors
19
Conductor cross-section
18 AWG/22 AWG
Cable temperature, fixed routing
-40...80 °C
Operating voltage Ub
150 VDC / 150 VAC
IP rating
IP67
Approval/Conformity
CEcULusWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Taric code
85444290
Substances of concern
Download
Disposal instructions
Download
Juhendid, CAD-mudelid, sertifikaadid ja muud materjalid on tootja veebisaidil:
Ava toote leht tootja veebisaidil
