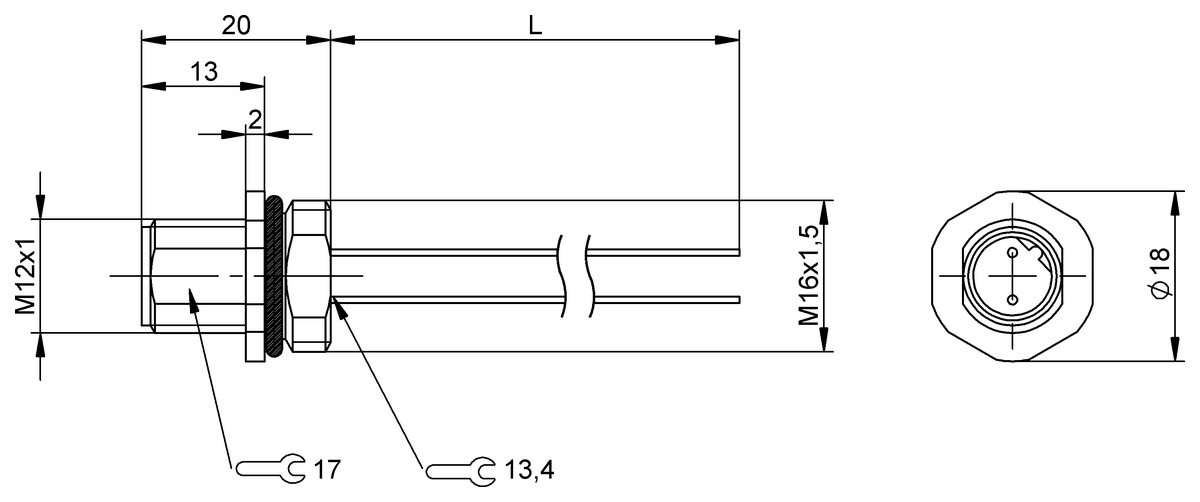

BCC0E40 (BCC M452-0000-2B-RM080-002) - Receptacles - Connection: M12x1-Male, straight, 2-pin, B-coded, Number of conductors: 2, Conductor cross-section: 0.25 mm², Lead length L: 0.20 m, Operating voltage Ub: 30 VDC / 30 VAC, Rated current (40 °C): 4.0 A, IP rating: IP68, Approval/Conformity: EAC, WEEE
Connection
M12x1-Male, straight, 2-pin, B-coded
Number of conductors
2
Conductor cross-section
0.25 mm²
Lead length L
0.20 m
Operating voltage Ub
30 VDC / 30 VAC
Rated current (40 °C)
4.0 A
IP rating
IP68
Approval/Conformity
EACWEEE
Manufacturer
Balluff GmbH
Taric code
85444290
Disposal instructions
Download
