BCC0K7Z (BCC M434-0000-2T-000-61X4A5-000) - Field attachables - List price Deutschland: 21,68 EUR - Connection: M12x1-Male, straight, 4-pin, T-coded, Number of connectable contacts: 4, Connection cross-section: 1.50 mm², Type of wire mounting: Screw terminals, Cable diameter D: 8...10 mm, Operating voltage Ub: 63 VDC / 63 VAC, Rated current (40 °C): 12.0 A, IP rating: IP67, Ambient temperature: -40...85 °C, Approval/Conformity: CE, WEEE
Connection

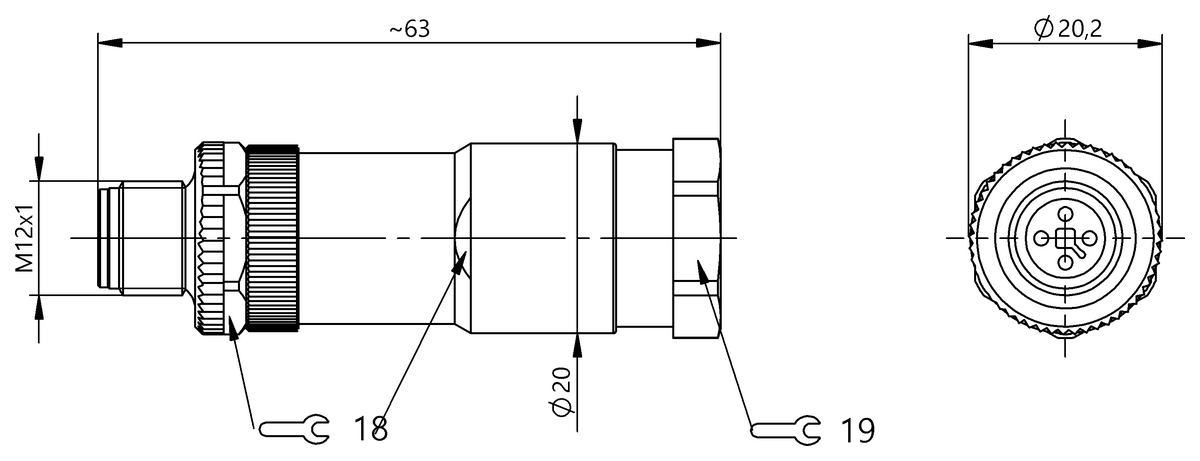

M12x1-Male, straight, 4-pin, T-coded
Number of connectable contacts
4
Connection cross-section
1.50 mm²
Type of wire mounting
Screw terminals
Cable diameter D
8...10 mm
Operating voltage Ub
63 VDC / 63 VAC
Rated current (40 °C)
12.0 A
IP rating
IP67
Ambient temperature
-40...85 °C
Approval/Conformity
CEWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Taric code
85366990
Substances of concern
Download
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
