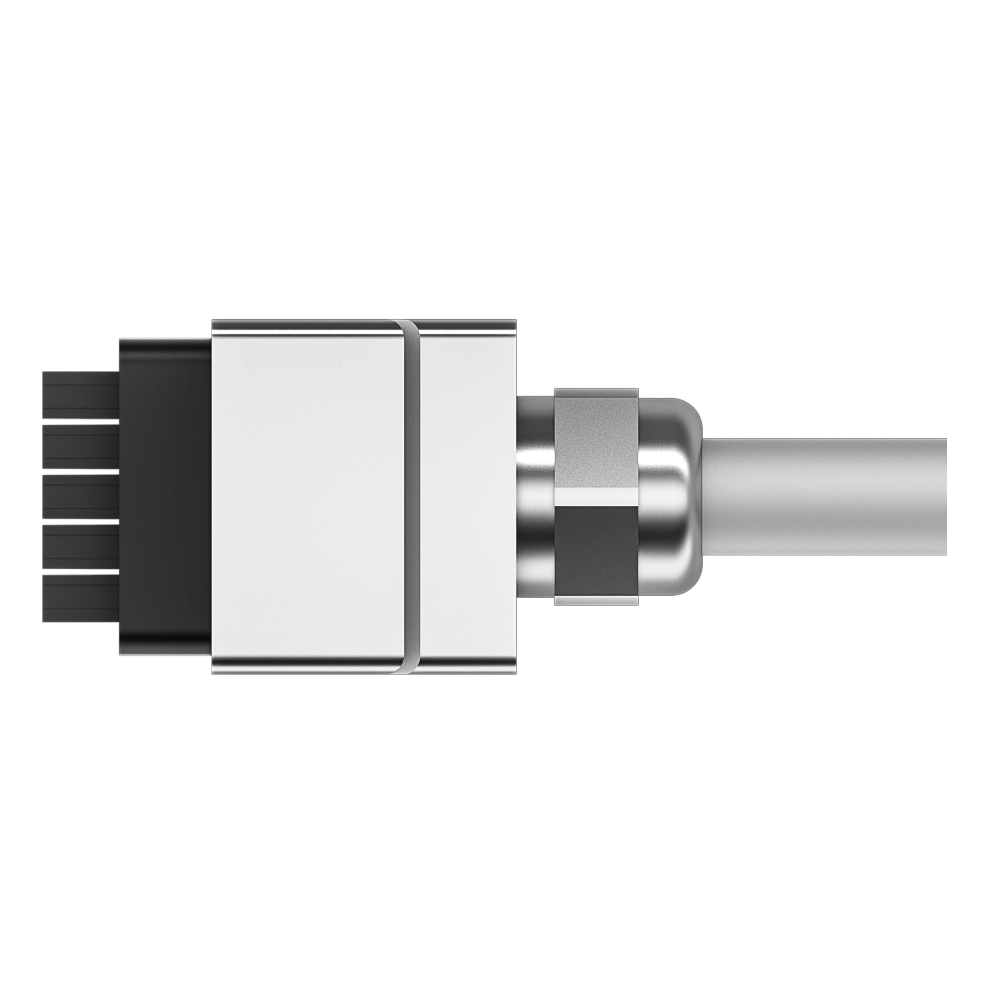

BCC0F4K (BCC HB75-0000-PA-121-VX85B5-050) - Single-ended cordsets - Connection: Push-Pull power-Female, straight, 5-pin, Cable: PVC gray, 5 m, Number of conductors: 5, Conductor cross-section: 2.5 mm², Cable temperature, fixed routing: -40...70 °C, Cable temperature, flexible routing: -5...70 °C, Operating voltage Ub: 24 VDC, Rated current (40 °C): 16.0 A, IP rating: IP67, Approval/Conformity: CE, WEEE
Connection
Push-Pull power-Female, straight, 5-pin
Cable
PVC gray, 5 m
Number of conductors
5
Conductor cross-section
2.5 mm²
Cable temperature, fixed routing
-40...70 °C
Cable temperature, flexible routing
-5...70 °C
Operating voltage Ub
24 VDC
Rated current (40 °C)
16.0 A
IP rating
IP67
Approval/Conformity
CEWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Taric code
85444290
Disposal instructions
Download
