Balluff
BCC C3C4-C3C4-30-304-YX84A5-020-C009
Recommended replacements:
Price excluding VAT
Request a quote

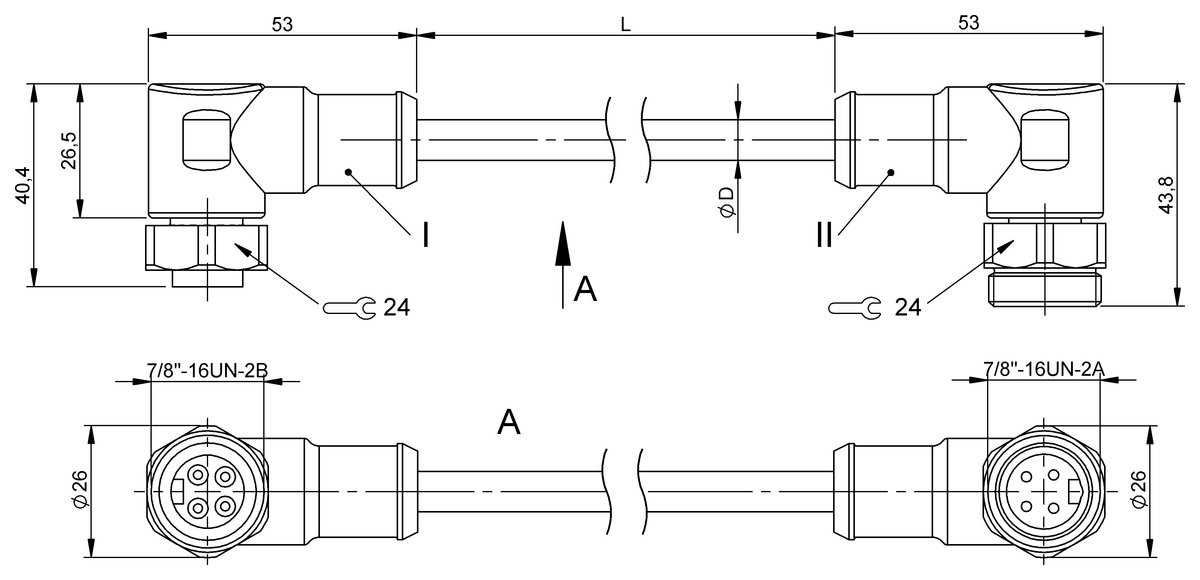

BCC0LNE (BCC C3C4-C3C4-30-304-YX84A5-020-C009) - Double-ended cordsets - Special characteristics: Washdown, Connection 1: 7/8"-Female, angled, 4-pin, Connection 2: 7/8"-Male, angled, 4-pin, Cable: TPE-V gray, 2 m, Number of conductors: 4, Cable temperature, fixed routing: -50...105 °C, Cable temperature, flexible routing: -25...105 °C, Operating voltage Ub: 300 VDC / 300 VAC, Rated current (40 °C): 10.0 A, IP rating: IP69K/IP69K, Approval/Conformity: CE, Ecolab, WEEE
Special characteristics
Washdown
Connection 1
7/8"-Female, angled, 4-pin
Connection 2
7/8"-Male, angled, 4-pin
Cable
TPE-V gray, 2 m
Number of conductors
4
Cable temperature, fixed routing
-50...105 °C
Cable temperature, flexible routing
-25...105 °C
Operating voltage Ub
300 VDC / 300 VAC
Rated current (40 °C)
10.0 A
IP rating
IP69K/IP69K
Approval/Conformity
CEEcolabWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Taric code
85444290
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
