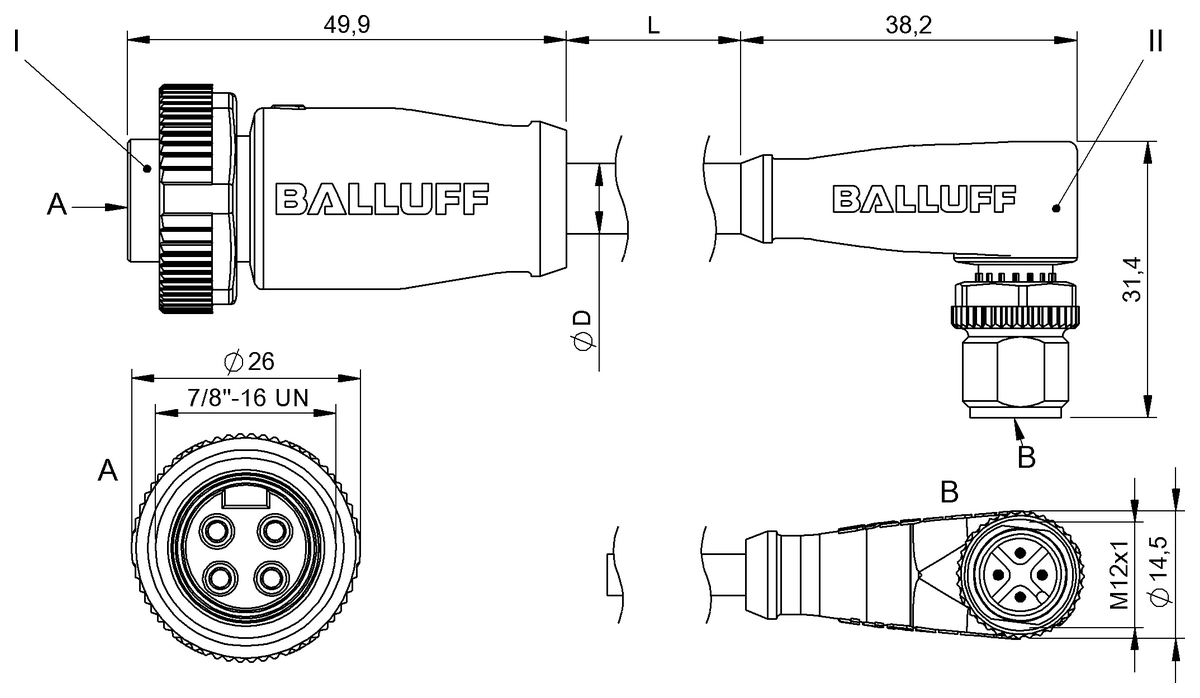

BCC0H66 (BCC A314-M424-3E-304-EX44T2-003) - Double-ended cordsets - Connection 1: 7/8"-Female, straight, 4-pin, Connection 2: M12x1-Male, angled, 4-pin, A-coded, Cable: TPE Yellow, 0.30 m, Drag chain compatible, Number of conductors: 4, Cable temperature, fixed routing: -50...105 °C, Cable temperature, flexible routing: -25...105 °C, Rated current (40 °C): 4.0 A, IP rating: IP67, IP68/IP67, IP68, IP69K, Approval/Conformity: cULus, EAC, WEEE
Connection 1
7/8"-Female, straight, 4-pin
Connection 2
M12x1-Male, angled, 4-pin, A-coded
Cable
TPE Yellow, 0.30 m, Drag chain compatible
Number of conductors
4
Cable temperature, fixed routing
-50...105 °C
Cable temperature, flexible routing
-25...105 °C
Rated current (40 °C)
4.0 A
IP rating
IP67, IP68/IP67, IP68, IP69K
Approval/Conformity
cULusEACWEEE
Manufacturer
Balluff GmbH
Taric code
85444290
Disposal instructions
Download
Juhendid, CAD-mudelid, sertifikaadid ja muud materjalid on tootja veebisaidil:
Ava toote leht tootja veebisaidil
