Balluff
BAW M12MD-UAC40F-S04G
Soovitatavad asendused:
Hind käibemaksuta
Küsi pakkumist

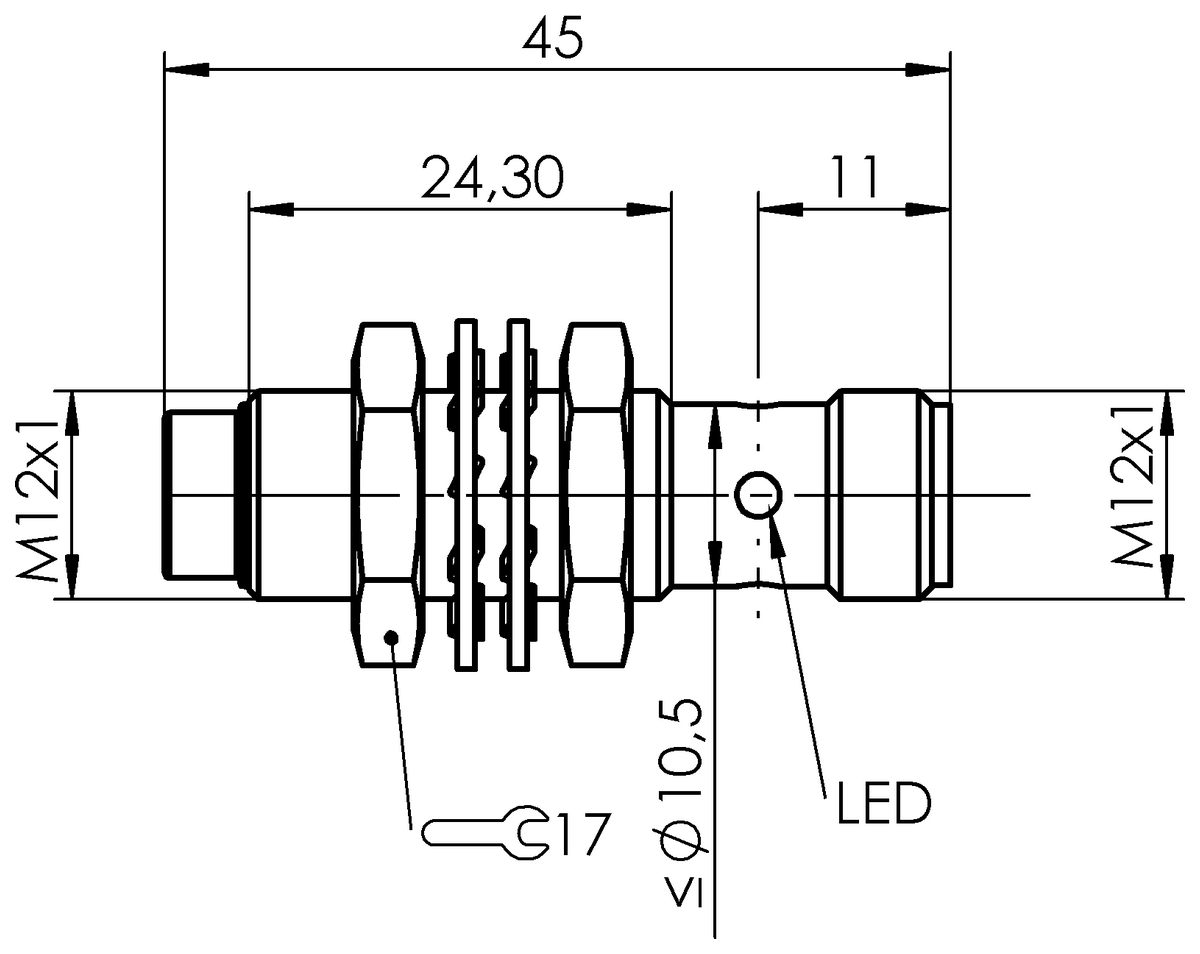

BAW000Z (BAW M12MD-UAC40F-S04G) - Inductive distance sensors - Dimension: Ø 12 x 45 mm, Style Housing: M12x1, Installation: non-flush, Range: 1...4 mm, Analog output: Analog, voltage 0...10 V, Output characteristic: falling on approach, Limit frequency –3 dB: 500 Hz, Repeat accuracy per BWN: ±10 µm, Non-linearity max.: ±90 µm, Housing material: Brass, nickel-plated, Material sensing surface: PBT, Connection: Connector, M12x1-Male, 3-pin, Operating voltage Ub: 15...30 VDC, Ambient temperature: -10...70 °C, IP rating: IP67, Approval/Conformity: CE, cULus, WEEE
Style Housing
M12x1
Installation
non-flush
Range
1...4 mm
Analog output
Analog, voltage 0...10 V
Output characteristic
falling on approach
Limit frequency –3 dB
500 Hz
Repeat accuracy per BWN
±10 µm
Non-linearity max.
±90 µm
Housing material
Brass, nickel-plated
Material sensing surface
PBT
Connection
Connector, M12x1-Male, 3-pin
Operating voltage Ub
15...30 VDC
Ambient temperature
-10...70 °C
IP rating
IP67
Approval/Conformity
CEcULusWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Taric code
85365019
Disposal instructions
Download
Juhendid, CAD-mudelid, sertifikaadid ja muud materjalid on tootja veebisaidil:
Ava toote leht tootja veebisaidil
