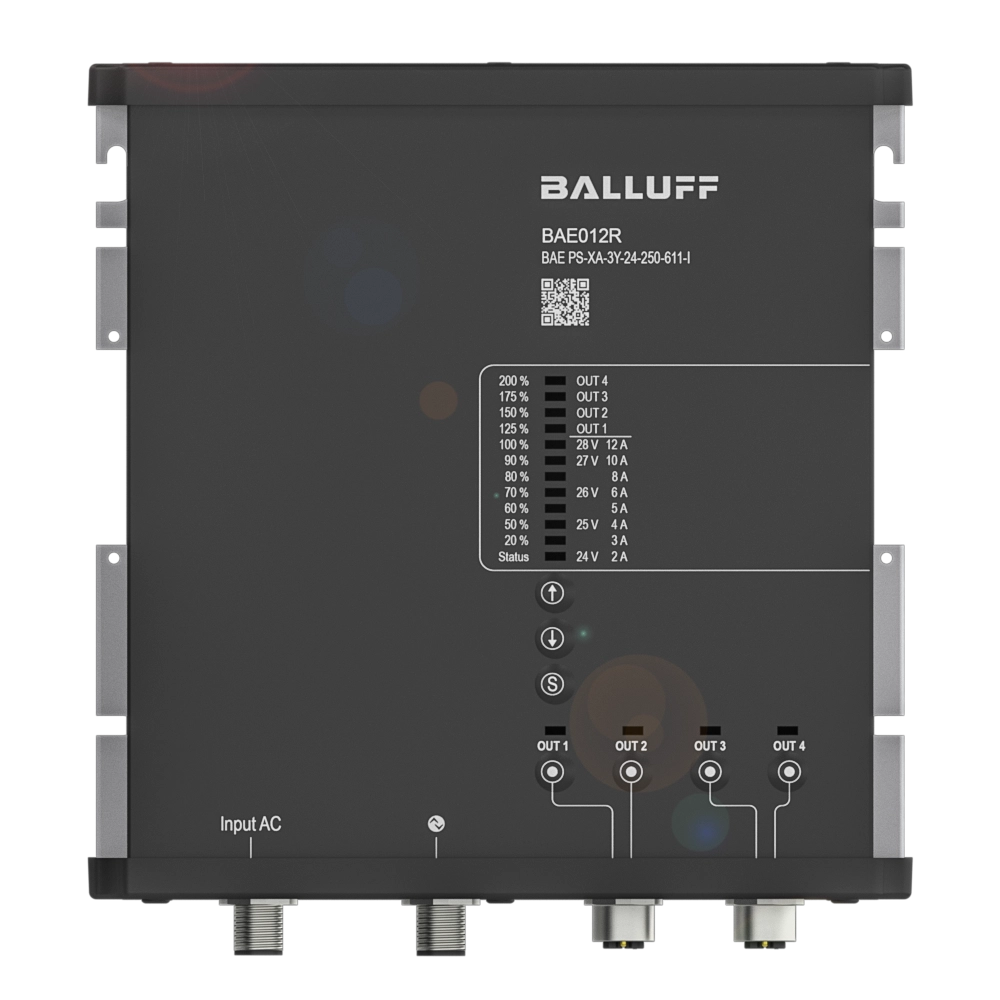

BAE012R (BAE PS-XA-3Y-24-250-611-I) - Field power supplies with IO-Link interface - List price Deutschland: 816,20 EUR - Output capacity max.: 600 W, Output voltage: 24 - 28 V DC, Rated output current: 25 A, Input voltage: 323...552 V AC, Connection (supply voltage IN): M12x1-Male, 4-pin, S-coded-coded, Connection (supply voltage OUT): M12x2-Female, 5-pin, L-coded-coded, Ambient temperature: -25...70 °C, IP rating: IP67/IP65, Dimension: 181 x 59 x 183 mm, Mounting part: Flange mounting, Housing material: Aluminium, PET, Approval/Conformity: CE, UKCA, cULus, WEEE
Output capacity max.
600 W
Output voltage
24 - 28 V DC
Rated output current
25 A
Input voltage
323...552 V AC
Connection (supply voltage IN)
M12x1-Male, 4-pin, S-coded-coded
Connection (supply voltage OUT)
M12x2-Female, 5-pin, L-coded-coded
Ambient temperature
-25...70 °C
IP rating
IP67/IP65
Mounting part
Flange mounting
Housing material
AluminiumPET
Approval/Conformity
CEUKCAcULusWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Taric code
85044095
Disposal instructions
Download
