Balluff
BAE PS-XA-3Y-24-100-006
Recommended replacement:
212,84 €
Price excluding VAT
Request a quote

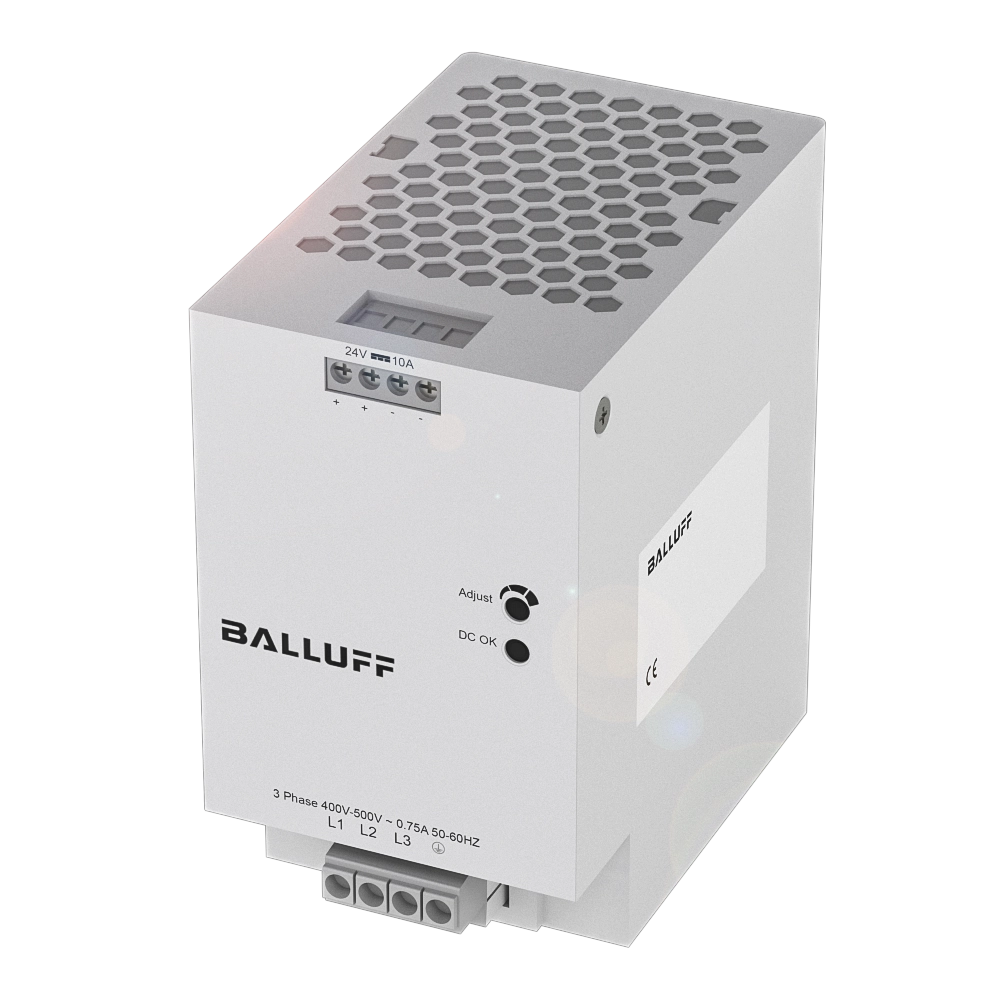

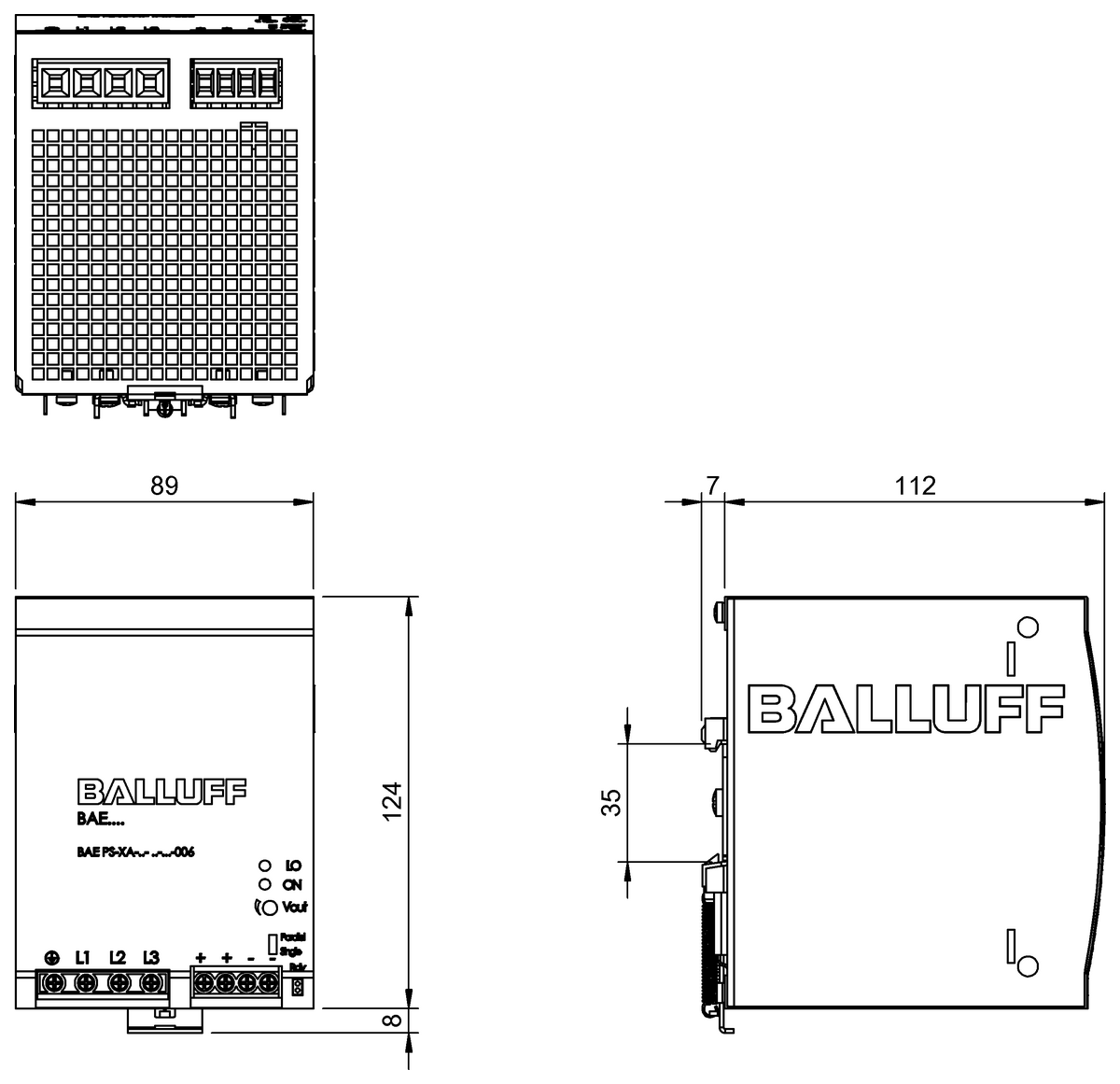

BAE0008 (BAE PS-XA-3Y-24-100-006) - Power supplies for the control cabinet - Dimension: 89 x 124 x 111.9 mm, Version: DIN rail, Mounting part: DIN rail mount, Housing material: Metal, Connection: Terminal, 0.25...4 mm², Input voltage: 400…500 V AC 3-phase, Rated output voltage DC: 24 V, Rated output current: 10 A, IP rating: IP20, Approval/Conformity: CE, CCC, cULus, WEEE, Ambient temperature: -40...70 °C
Version
DIN rail
Mounting part
DIN rail mount
Housing material
Metal
Connection
Terminal, 0.25...4 mm²
Input voltage
400…500 V AC 3-phase
Rated output voltage DC
24 V
Rated output current
10 A
IP rating
IP20
Approval/Conformity
CECCCcULusWEEE
Ambient temperature
-40...70 °C
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Short guide
BAE PS-XA-3Y-24-100-006 | (German, English)
Taric code
85044095
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
