Balluff
BAE PS-XA-1W-24-050-003
Soovitatav asendus:
110,57 €
Hind käibemaksuta
Küsi pakkumist

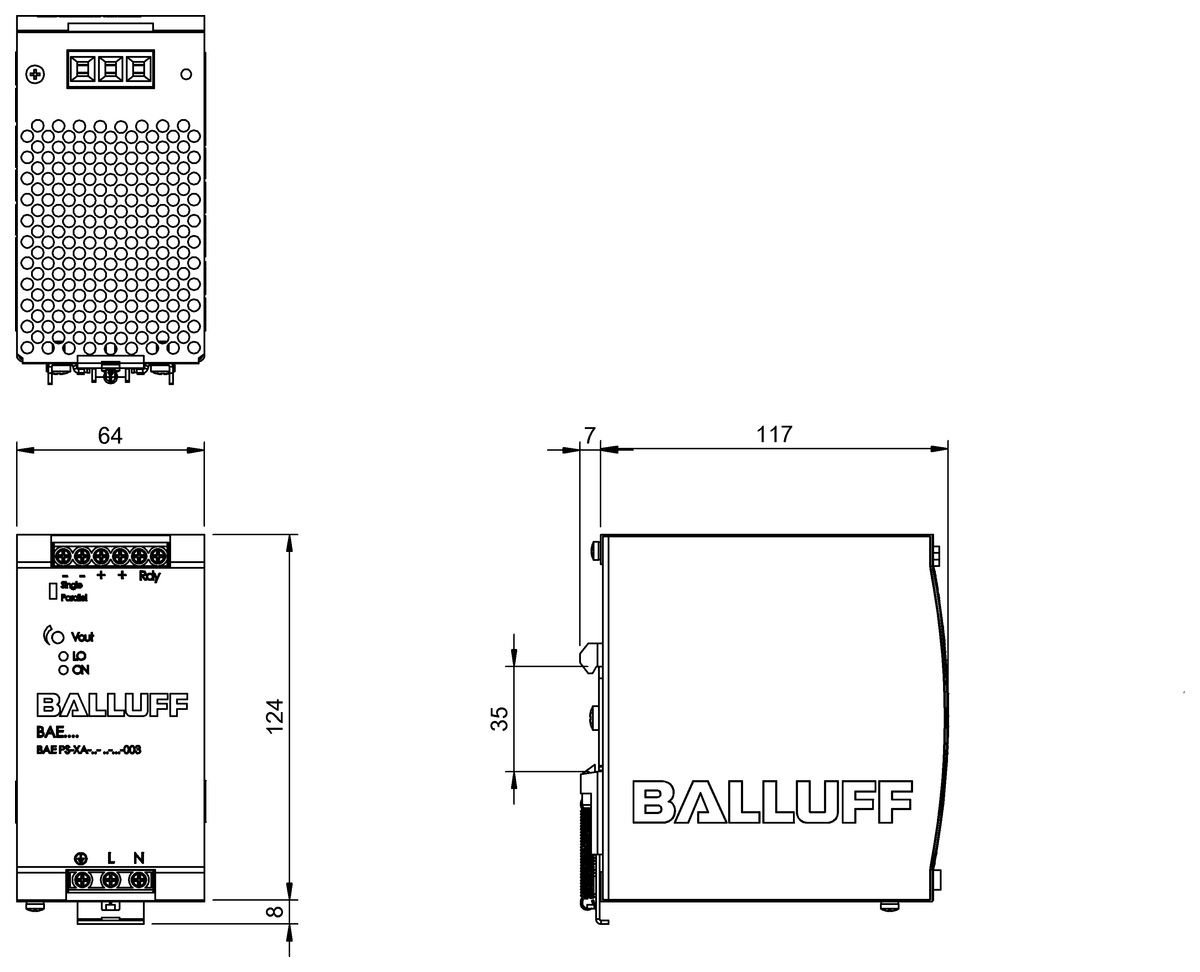

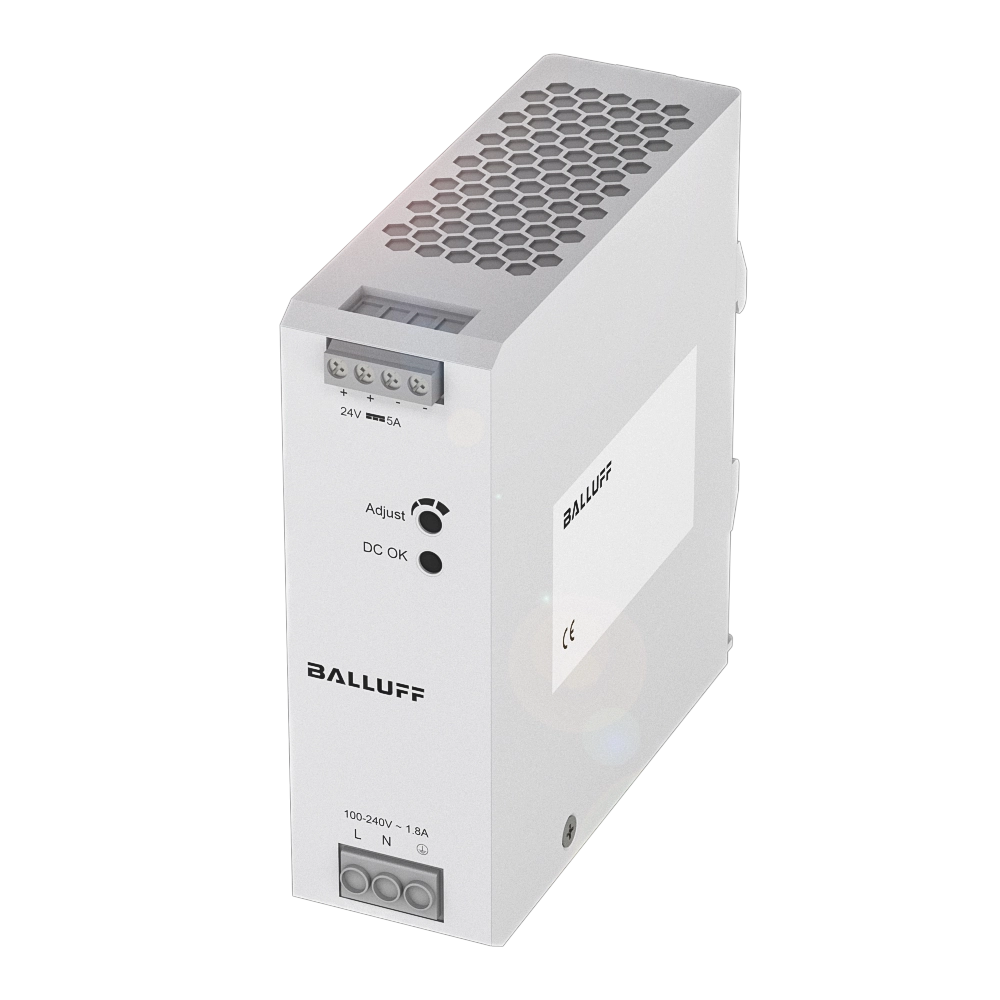

BAE0006 (BAE PS-XA-1W-24-050-003) - Power supplies for the control cabinet - Dimension: 64 x 124.5 x 116.6 mm, Version: DIN rail, Mounting part: DIN rail mount, Housing material: Metal, Connection: Terminal, 0.25...4 mm², Input voltage: 115/230 V AC automatic selection, Rated output voltage DC: 24 V, Rated output current: 5 A, IP rating: IP20, Approval/Conformity: CE, CCC, cULus, WEEE, Ambient temperature: -35...70 °C
Version
DIN rail
Mounting part
DIN rail mount
Housing material
Metal
Connection
Terminal, 0.25...4 mm²
Input voltage
115/230 V AC automatic selection
Rated output voltage DC
24 V
Rated output current
5 A
IP rating
IP20
Approval/Conformity
CECCCcULusWEEE
Ambient temperature
-35...70 °C
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Short guide
BAE PS-XA-1W-24-050-003 | (German, English)
Taric code
85044095
Disposal instructions
Download
Juhendid, CAD-mudelid, sertifikaadid ja muud materjalid on tootja veebisaidil:
Ava toote leht tootja veebisaidil
