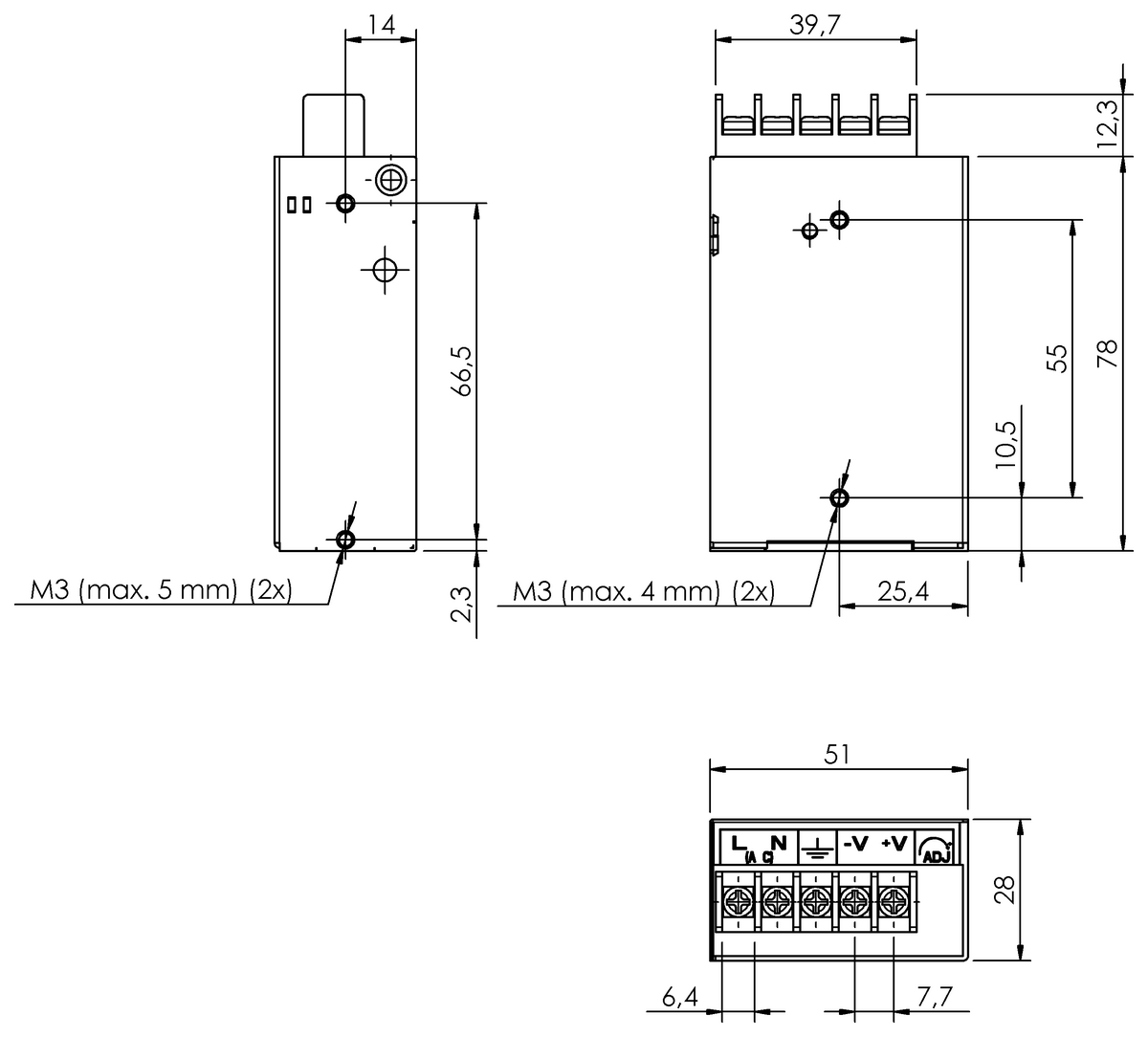

BAE00MM (BAE PS-XA-1W-15-024-052) - Power supply units in the compact format - Dimension: 54 x 28 x 92 mm, Version: Enclosed, Mounting part: Flange mounting, Housing material: Metal, Connection type: Terminal, Connector design: 0.2 mm²...2.5 mm², Input voltage: 100…240 V AC, 1-phase, Rated output voltage DC: 15 V, Rated output current: 2.4 A, Output capacity max.: 36 W, IP rating: IP20, Approval/Conformity: CE, cULus, WEEE, Ambient temperature: -20...71 °C
Version
Enclosed
Mounting part
Flange mounting
Housing material
Metal
Connection type
Terminal
Connector design
0.2 mm²...2.5 mm²
Input voltage
100…240 V AC, 1-phase
Rated output voltage DC
15 V
Rated output current
2.4 A
Output capacity max.
36 W
IP rating
IP20
Approval/Conformity
CEcULusWEEE
Ambient temperature
-20...71 °C
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Taric code
85044095
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
