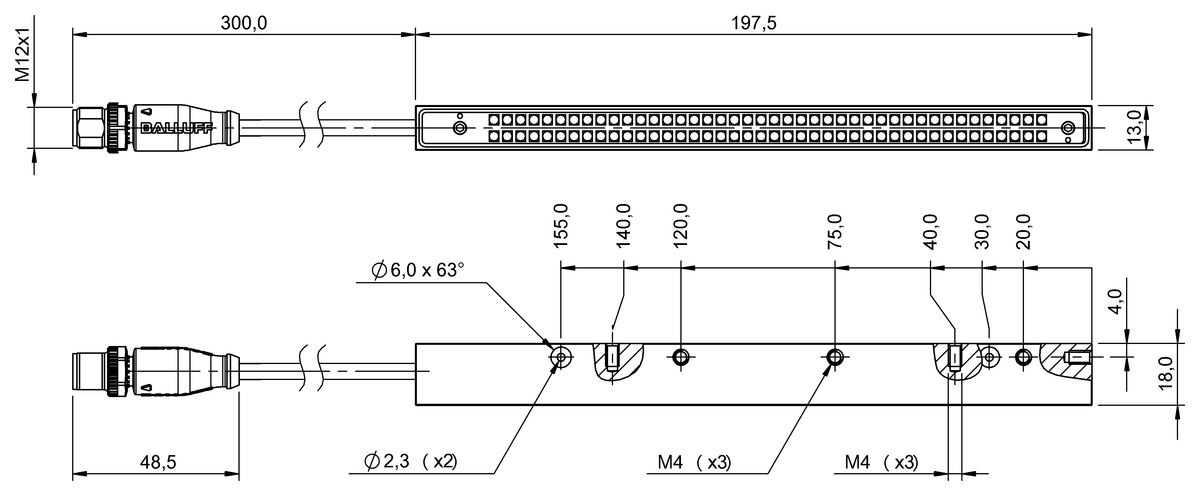

BAE00AW (BAE LX-VS-LW170) - Strip lights - Connection: Cable with connector, M12x1-Male, 4-pin, 0.30 m, Version: Strip light, Dimension: 13 x 197.5 x 18 mm, Rated operating voltage Ue DC: 24 V, Current draw max.: 300 mA, 500 mA (Boost mode), Operating mode: Normal, Boost, Digital inputs: Trigger, Material: Aluminum anodized, black, Glass, Illumination area: 160 x 10 mm, Light type: LED white light, Ambient temperature: -10...55 °C, Approval/Conformity: CE, IP rating: IP54
Connection
Cable with connector, M12x1-Male, 4-pin, 0.30 m
Version
Strip light
Rated operating voltage Ue DC
24 V
Current draw max.
300 mA, 500 mA (Boost mode)
Operating mode
NormalBoost
Digital inputs
Trigger
Material
Aluminum anodized, blackGlass
Illumination area
160 x 10 mm
Light type
LED white light
Ambient temperature
-10...55 °C
Approval/Conformity
CE
IP rating
IP54
Manufacturer
Balluff GmbH
Taric code
94054990
