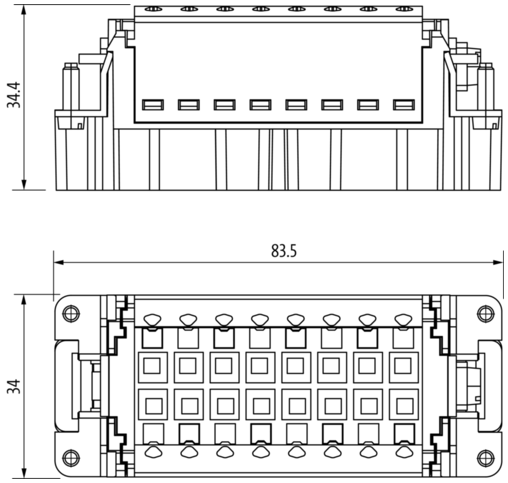

B16 male 6+2-pole, Push-in, 800/500 V, 16 A
B16 male 6+2-pole, Push-in, 800/500 V, 16 A
B16 male 6+2-pole, Push-in, 800/500 V, 16 A
Murrelektronik

B16 male 6+2-pole, Push-in, 800/500 V, 16 A

SKU: 70MH-ES6U2-FP05020 Available to order
Price excluding VAT
Request a quote

Request a quote

    B16 Male 6+2-pole Push-In terminals Technical data will be only guaranteed with Murrelektronik components. Please use wire end ferrule.

    Weight
    0,022 kg
    Country of origin
    CN
    Model designation
    MSMH-EST-B16-P-6+2pol. 800/500 V 16 A
    Operating current
    16 A
    Operating voltage AC per power contact max.
    830 V
    Operating voltage DC per power contact max.
    830 V
    Operating voltage AC per signal contact max.
    500 V
    Operating voltage DC per signal contact max.
    500 V
    Connection cross section min.
    0,14 mm²
    Connection cross section max.
    2,5 mm²
    AWG number min.
    26
    AWG number max.
    13
    Gender
    male
    Connection
    Push-In spring clamp terminals
    Mating cycles min.
    500
