Profiling systems | Axle Classification System | AXC310 | Application: Toll booth | Items supplied: multiScan136 variant 3D LiDAR sensor, APU TEMS Standard 3D with preinstalled software, Mounting bracket, 20 m Ethernet and power cable | Scanner design: 1-scanner solution | Vehicle data: Vehicle class, Number of axles, confidence level for all vehicle datas, driving direction, point cloud
Application

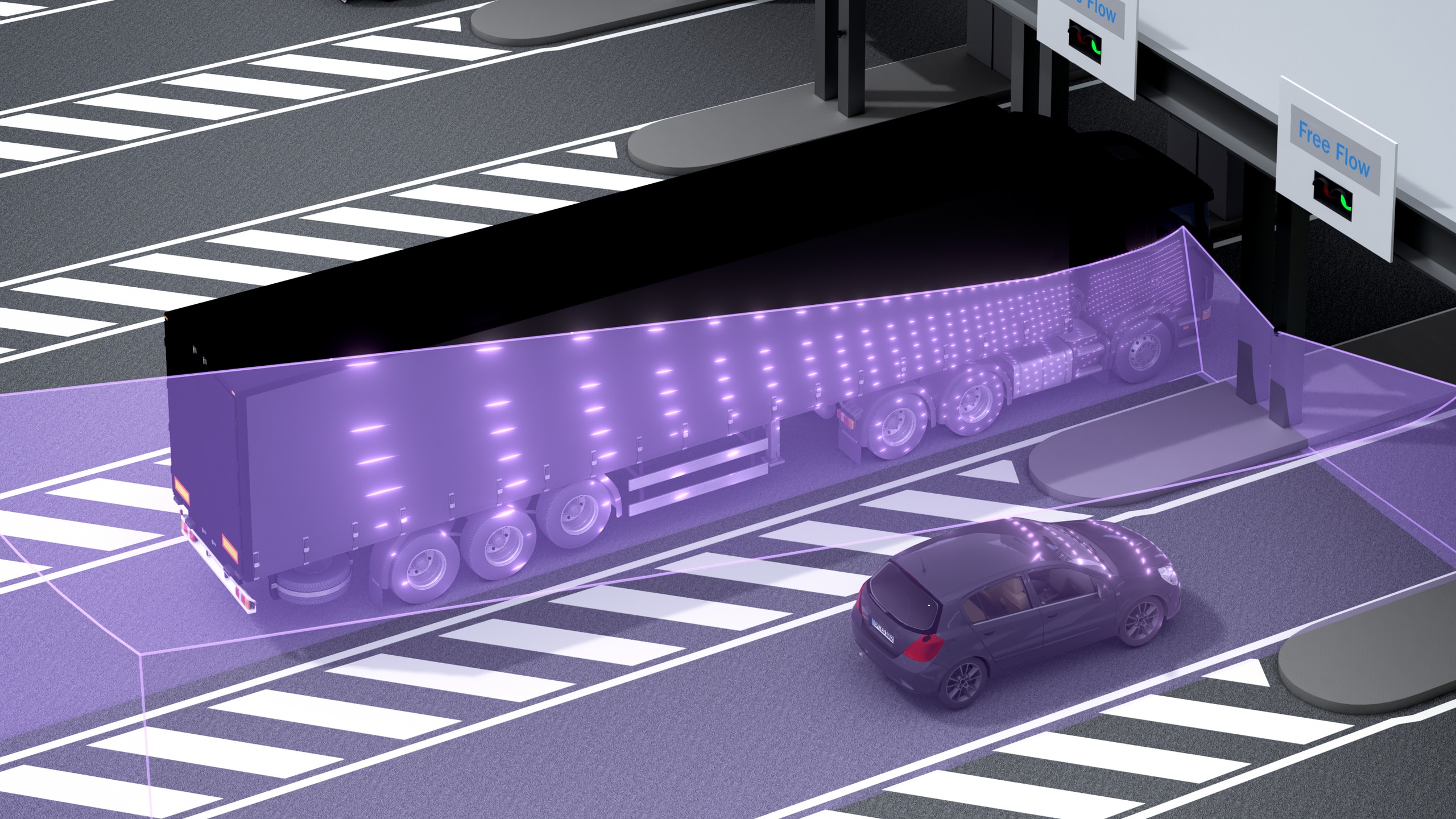

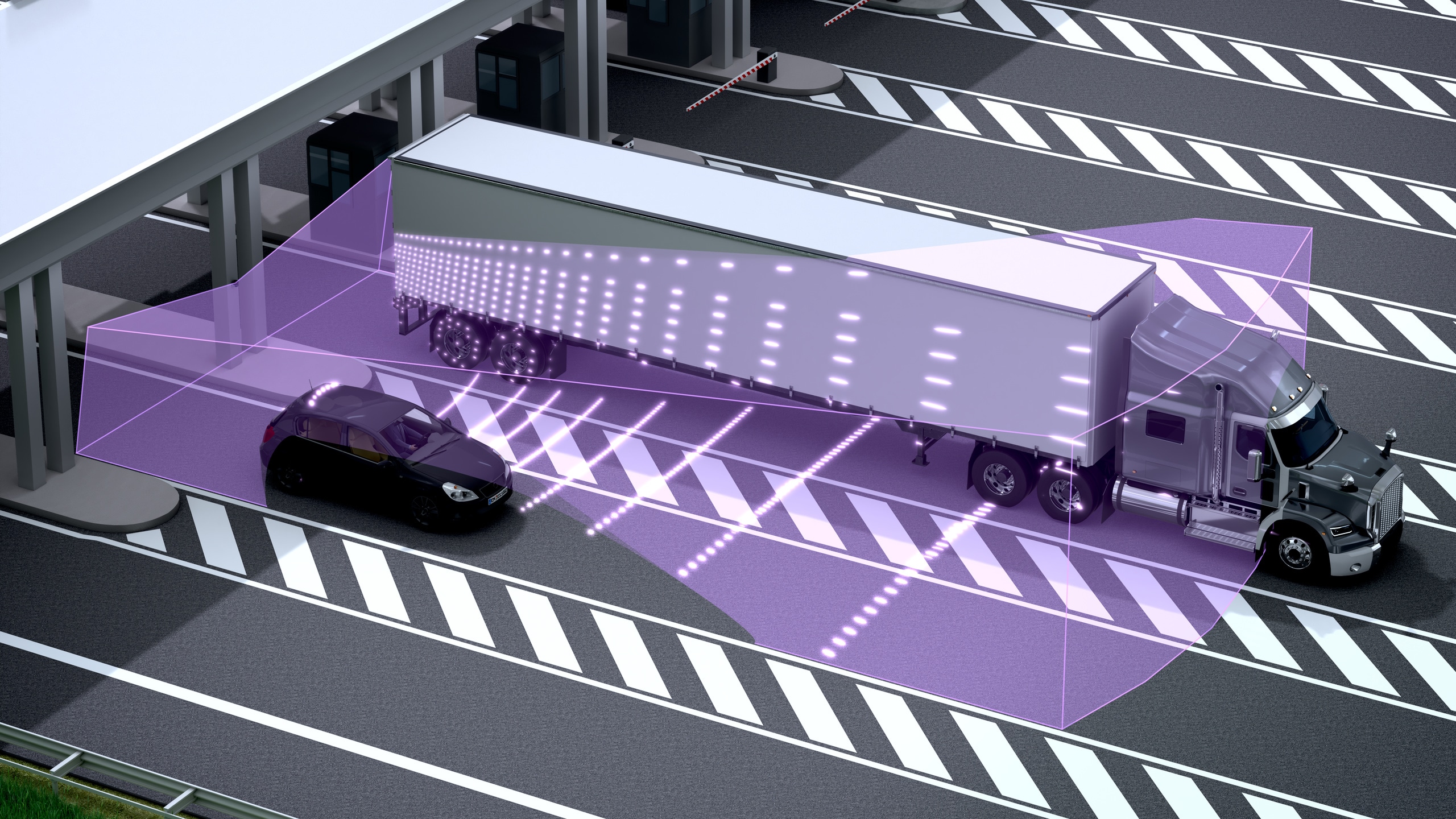

Toll booth
Number of covered lanes
1 or 2
Scanner design
1-scanner solution
Vehicle data
Vehicle classNumber of axlesConfidence level for all vehicle datasDriving directionPoint cloud
Stop-and-go functionality
Yes
Laser class
1, eye-safe (IEC 60825-1:2014)
Internal computer
APU TEMS Standard 3D
Supply voltage
24 V DC (9 V DC ... 30 V DC)
Housing dimensions (W x D x H)
100.3 mm x 100.3 mm x 93.5 mm (3D LiDAR sensor)155 mm x 110 mm x 60 mm (APU TEMS Standard 3D)
Вес
0.7 kg (3D LiDAR sensor)
Installation position
Beside the lane
Detection accuracy
> 99.9 % (vehicle)≥ 99 % (Axes)
Classification accuracy
≥ 95 % (Axes)
Driving speed
≤ 60 km/h
NTP synchronization
✔
Ethernet
✔
Function
Operator interface, sensor interface
Protocol
TEMS Info Interface (TCP/IP Interface)TEMS Manager (HTTP configuration software)
Ambient operating temperature
–40 °C ... +60 °C
Items supplied
multiScan136 variant 3D LiDAR sensorAPU TEMS Standard 3D with preinstalled softwareMounting bracket20 m Ethernet and power cable
ECLASS 5.1.4
27280190
ECLASS 6.0
27280190
ECLASS 7.0
27280190
ECLASS 8.0
27280190
ECLASS 9.0
27280190
ECLASS 10.0
27280190
ECLASS 11.0
27280190
ECLASS 12.0
27280190
ECLASS 13.0
27280190
ECLASS 14.0
27280190
ECLASS 15.0
27280190
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
ETIM 9.0
EC002550
ETIM 10.0
EC002550
UNSPSC 091201.0
43211701
UNSPSC 100501.0
43211701
UNSPSC 111201.0
43211701
UNSPSC 120901.0
43211701
UNSPSC 131201.0
43211701
UNSPSC 140801.0
43211701
UNSPSC 151101.0
43211701
UNSPSC 160901.0
43211701
UNSPSC 171001.0
43211701
UNSPSC 180801.0
43211701
UNSPSC 190501.0
43211701
UNSPSC 200601.0
43211701
UNSPSC 210901.0
43211701
UNSPSC 220601.0
43211701
UNSPSC 230701.0
43211701
UNSPSC 240301.0
43211701
UNSPSC 250901.0
43211701
UNSPSC 260801.0
43211701
