APS-5101
APS-5101
SICK

APS-5101

SKU: 1069176 Saadaval tellimisel
Hind käibemaksuta
Küsi pakkumist

Küsi pakkumist

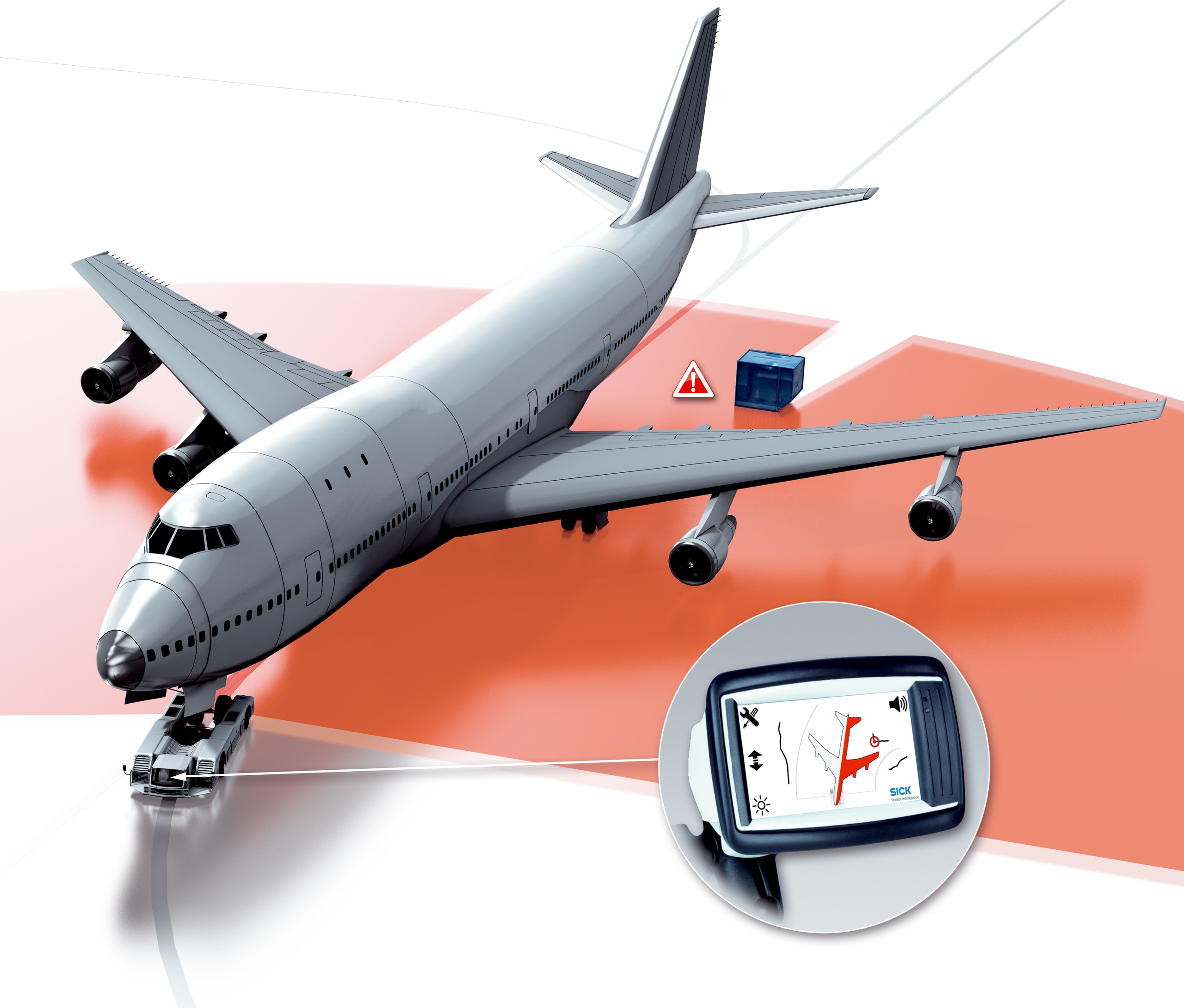

    Object detection systems | APS | APS-5101 | Items supplied: LMS511 2D LiDAR sensor, Mounting kit 1 for mounting the LMS511, Mounting kit 2 for adjusting the LMS511 on mounting kit 1, operator display, mounting set for operator display, Ethernet switch, Buzzer, USB stick with operating instructions, Power supply cable (female connector open) for LMS511 (20m), Connecting cables for operator display (5 m), Connecting cables for operator display (10 m), Ethernet connection cable (angled) for operator display (5 m), Power supply cable (female connector open) for Ethernet switch (10 m) | Vehicle: Pushback tractors without towbar | Functions: Audible and visual collision warning, Maneuver assistant, Aircraft type detection | Monitored area: Area under the docked aircraft behind the aircraft tractor

    Areas of application
    Airport
    Number of sensors
    1
    Scanning frequency
    25 Hz
    Aperture angle
    180°, horizontal
    Angular resolution
    0.25°
    Vehicles
    Pushback tractors without towbar
    Requirements for objects to be protected
    Aircraft properties:Aircraft fuselage height: > 80 cmTrack: 4.5 m–15 mWheelbase: 10 m–32 m
    Heating
    ✔
    Dimensions display (W x D x H)
    142 mm x 44 mm x 98 mm (with mounting 130 mm depth)
    Kaal
    3.7 kg, 4.286 kg with brackets (LMS511)360 g, 600 g with mounting (Display)
    Supply voltage
    24 V DC (19.2 V DC ... 28.8 V DC)
    Power consumption
    27 W (≤ 92 W), With heating
    Installation position
    Pushback tractor, rear side left or rear side right, 20 cm - 60 cm from ground (LMS511)
    Laser class
    1, eye-safe (IEC 60825-1:2014)
    Working range
    0.7 m ... 80 m
    Display
    4.3″ touch display
    Functions
    Audible and visual collision warningManeuver assistantAircraft type detection
    Number of laserscanners
    1
    Monitored area
    Area under the docked aircraft behind the aircraft tractor
    Warning zones
    3
    Self-diagnostics
    ✔
    Function
    Software updates via web interface
    Electrical connection
    M12, 4-pin
    Operator interface
    Touch display
    Ambient operating temperature
    –25 °C ... +50 °C
    Ambient temperature, storage
    –25 °C ... +60 °C
    Items supplied
    LMS511 2D LiDAR sensorMounting kit 1 for mounting the LMS511Mounting kit 2 for adjusting the LMS511 on mounting kit 1Operator displayMounting set for operator displayEthernet switchBuzzerUSB stick with operating instructionsPower supply cable (female connector open) for LMS511 (20m)Connecting cables for operator display (5 m)Connecting cables for operator display (10 m)Ethernet connection cable (angled) for operator display (5 m)Power supply cable (female connector open) for Ethernet switch (10 m)
    EU declaration of conformity
    ✔
    UK declaration of conformity
    ✔
    China RoHS
    ✔
    ECLASS 5.1.4
    27280801
    ECLASS 6.0
    27280890
    ECLASS 7.0
    27280890
    ECLASS 8.0
    27280890
    ECLASS 9.0
    27280890
    ECLASS 10.0
    27280890
    ECLASS 11.0
    27280890
    ECLASS 12.0
    27280890
    ECLASS 13.0
    27280890
    ECLASS 14.0
    27280890
    ECLASS 15.0
    27280890
    ETIM 9.0
    EC004807
    ETIM 10.0
    EC004807
    UNSPSC 091201.0
    43211701
    UNSPSC 100501.0
    43211701
    UNSPSC 111201.0
    43211701
    UNSPSC 120901.0
    43211701
    UNSPSC 131201.0
    43211701
    UNSPSC 140801.0
    43211701
    UNSPSC 151101.0
    43211701
    UNSPSC 160901.0
    43211701
    UNSPSC 171001.0
    43211701
    UNSPSC 180801.0
    43211701
    UNSPSC 190501.0
    43211701
    UNSPSC 200601.0
    43211701
    UNSPSC 210901.0
    43211701
    UNSPSC 220601.0
    43211701
    UNSPSC 230701.0
    43211701
    UNSPSC 240301.0
    43211701
    UNSPSC 250901.0
    43211701
    UNSPSC 260801.0
    43211701
