Murrelektronik

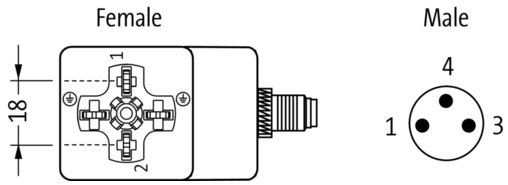

Adaptor M8 on rear A-cod. / MSUD valve plug A-18mm
Цена без НДС
Запросить цену

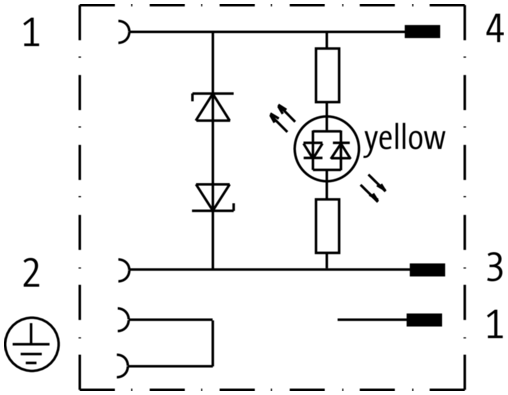

Form A (18 mm) – M8, connector at the rear 24 V AC ±20% / DC ±25% LED and suppression 3-pole Plastic housings with good resistance against chemicals and...
Вес
0,039 kg
Страна происхождения
CZ
Обозначение модели
MSKL3-I
Operating voltage AC
24 V
Operating voltage AC min.
19,2 V
Operating voltage AC max.
28,8 V
Operating voltage DC
24 V
Operating voltage DC min.
18 V
Operating voltage DC max.
30 V
Current operating per contact max.
4 A
Cut-off peak voltage max.
55 V
Current consumption max.
15 mA
Status indication LED
yellow
Tightening torque
0,4 Nm
Mounting set
M3 / M8
