Murrelektronik
Adaptor M8 male / M12 female A-cod.
Price excluding VAT
Request a quote

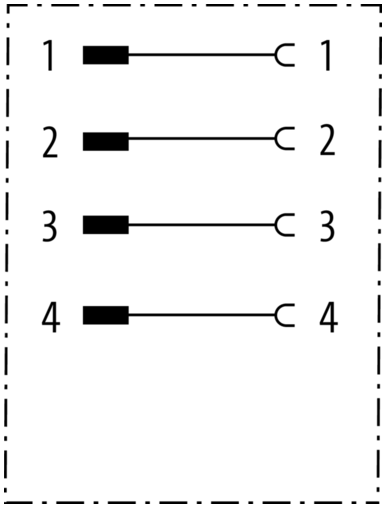

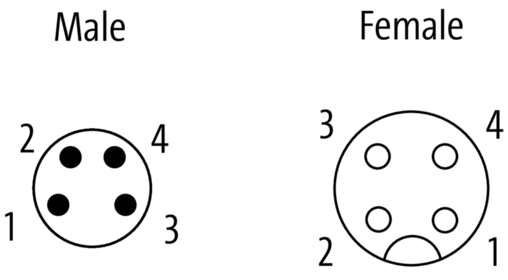

Adapter Male - female M8 – M12, 4-pole for M8 distribution box 4-pole
Weight
0,015 kg
Country of origin
DE
Model designation
MSB04L0-H-T
Family construction form
M8
Threaded hole
M8 x 1
Tightening torque
0,4 Nm
Operating voltage AC max.
50 V
Operating voltage DC max.
60 V
Current operating per contact max.
4 A
Operating voltage AC max. (UL-listed)
30 V
Operating voltage DC max. (UL-listed)
30 V
Degree of protection (EN IEC 60529)
IP67
Additional condition protection degree
inserted, screwed
Rated insulation voltage
800 V
Material housing
PUR
