Murrelektronik
Adaptor M12 on top A-cod. / MSUD valve plug C-8mm
Hind käibemaksuta
Küsi pakkumist

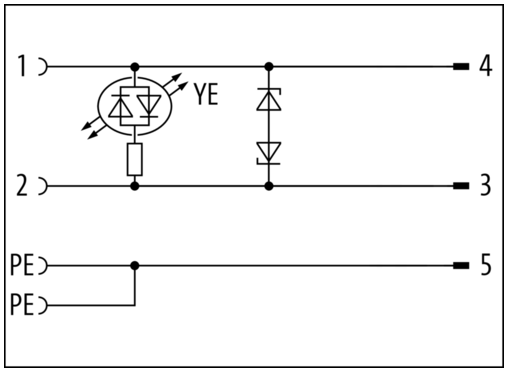

Adapter Form C (8 mm) – M12, connector top entry 24 V AC ±20% / DC ±25% LED and suppression 3-pole Plastic housings with good resistance against...
Kaal
0,035 kg
Päritoluriik
CZ
Mudeli tähistus
MSTL3-A
Family construction form
M12
No. of poles
2 + PE
Tightening torque
0,6 Nm
Degree of protection (EN IEC 60529)
IP67
Coding
A
Mounting method
inserted, screwed
Threaded hole
M12 x 1
Width across flats
SW13
Material contact
Copper alloy
Coating contact
gold plated
Operating voltage AC
24 V
Operating voltage AC min.
19,2 V
