A3 female 5-pole, crimp t., 400 V, 16 A
A3 female 5-pole, crimp t., 400 V, 16 A
A3 female 5-pole, crimp t., 400 V, 16 A
Murrelektronik

A3 female 5-pole, crimp t., 400 V, 16 A

SKU: 70MH-EB005-AC02020 Доступно к заказу
Цена без НДС
Запросить цену

Запросить цену

    A3 Female 5-pole Crimp Technical data will be only guaranteed with Murrelektronik components.

    Вес
    0,018 kg
    Страна происхождения
    CZ
    Обозначение модели
    MSMH-EBU-A03-C-5pol. 400 V 16 A
    Operating current
    16 A
    Operating voltage AC per power contact max.
    400 V
    Operating voltage DC per power contact max.
    400 V
    Operating voltage AC per signal contact max.
    230 V
    Operating voltage DC per signal contact max.
    230 V
    Connection cross section min.
    0,5 mm²
    Connection cross section max.
    4 mm²
    AWG number min.
    20
    AWG number max.
    11
    Gender
    female
    Connection
    Crimp
    Mating cycles min.
    500

    Похожие товары

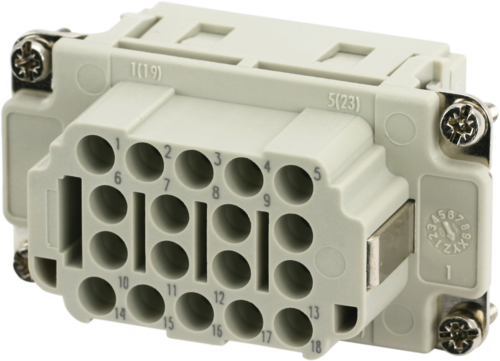

    B10 female 18-pole, crimp t., 500 V, 16 A
    B10 female 18-pole, crimp t., 500 V, 16 A
    70MH-EB018-EC03020

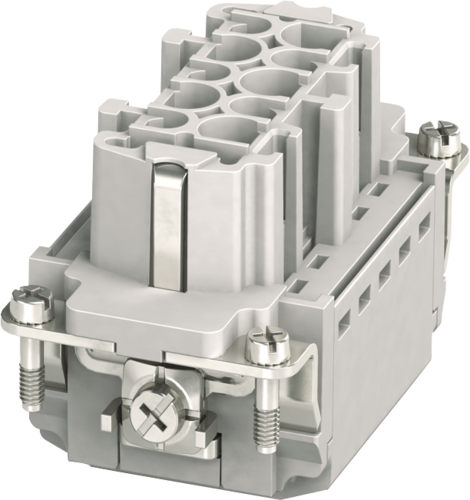

    B10 female 10-pole, Push-in, 500 V, 16 A
