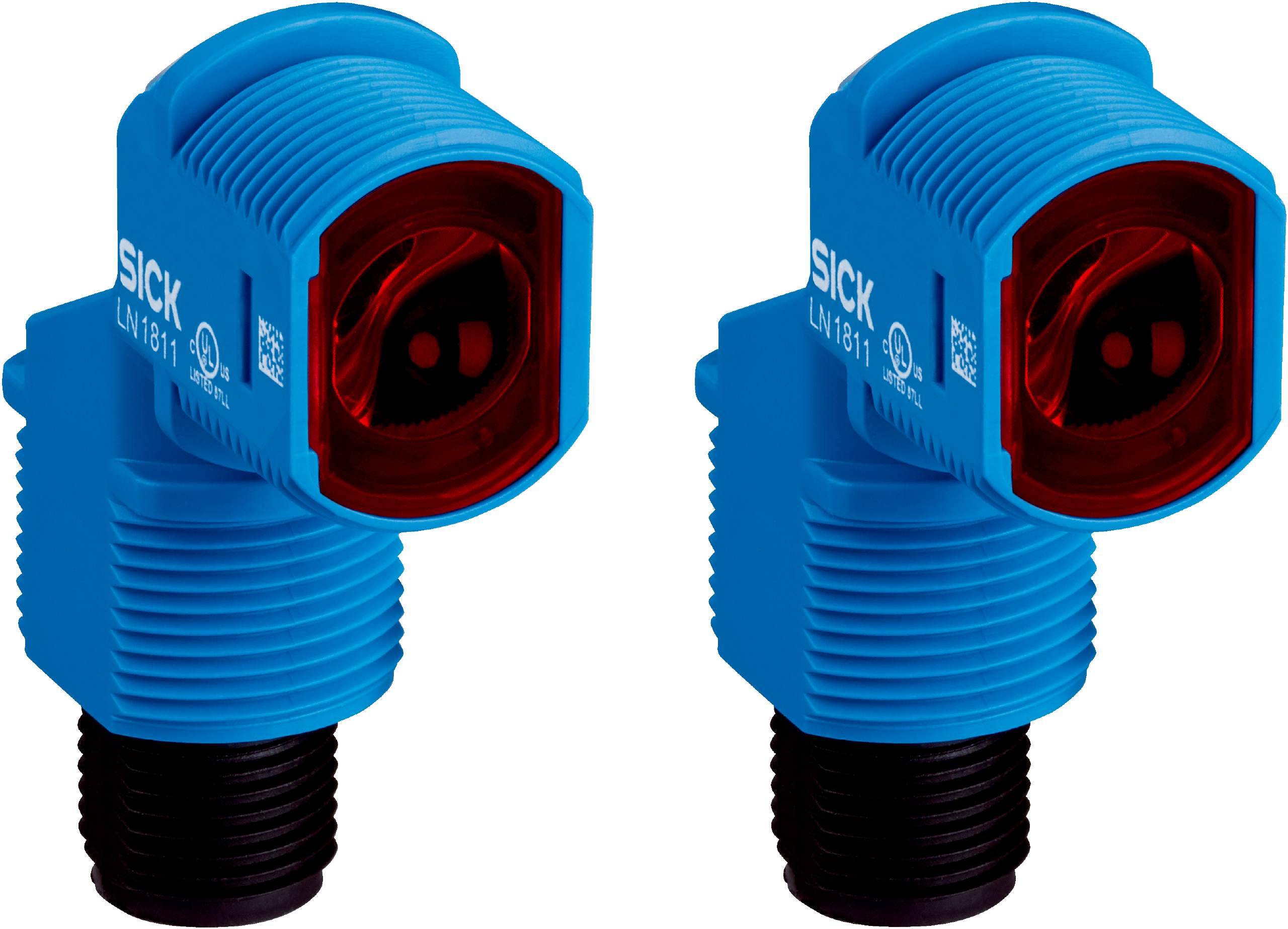

Photoelectric sensors | Z18 Simple Sense | ZSE18-8AB1G3 | Communication interface: - | Mounting system type: 24 mm, ball, without alignment aid | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 17 m | Light source, light type: LED, Infrared light | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Connection type: Cable open end, 4-wire, 2,000 mm
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
23.3 mm x 24 mm x 26 mm
Housing design (light emission)
Hybrid
Thread diameter (housing)
-
Mounting system type
24 mm, ball, without alignment aid
Housing color
Blue
Sensing range max.
0 m ... 17 m
Sensing range
0 m ... 15 m
Type of light
Infrared light
Light source
LED
Light spot size (distance)
Ø 20 mm (500 mm)
Wave length
850 nm
Supply voltage UB
10 V DC ... 30 V DC
Ripple
< 10 %
Current consumption
≤ 15 mA1)
Switching output
Push-pull: PNP/NPN
Switching mode
Light switching, Dark switching
Switching output Q1
Push-pull: PNP/NPN, Light switching
Switching output Q2
Push-pull: PNP/NPN, Dark switching
Output current Imax.
100 mA
Response time
≤ 500 µs2)
Switching frequency
1,000 kHz3)
Connection type
Cable open end, 4-wire, 2,000 mm
Circuit protection
A4)B5)D6)
Protection class
III
Kaal
4.6 g
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP67
Ambient operating temperature
–40 °C ... +55 °C
Ambient temperature, storage
–40 °C ... +70 °C
UL File No.
E189383
Cable material
Plastic
Conductor cross section
0.13 mm²
BN
+ (L+)
WH
Q2
BU
- (M)
BK
Q1
