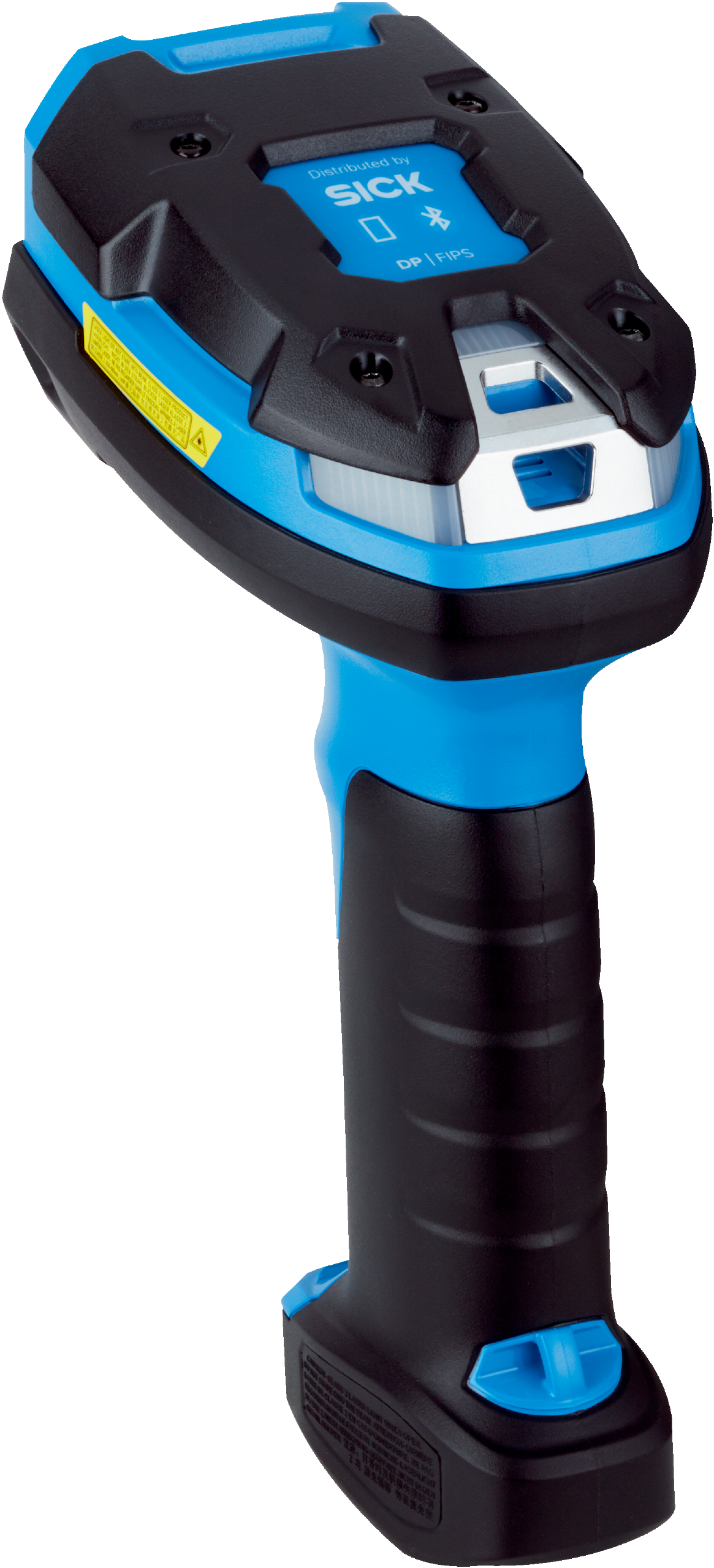

Mobile handheld scanners | Zx36 | ZS3678-DP2F263VZWW | Readable code structures: 1D codes, 2D codes, Stacked, direct-marked codes | Reading distance: 0 mm ... 86 mm | Application: Industrial application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, USB, Bluetooth | Ambient operating temperature: –20 °C ... +50 °C | Country approval: World-wide (except India, Korea) | Code resolution: ≥ 0.08 mm, ≥ 0.13 mm
Application
Industrial application
Version
High Density (DP)
Country approval
World-wide (except India, Korea)
Scanner design
Wireless variant
Sensor resolution
1,280 px x 960 px
Light source
LED, Visible, Warm white, DirectLED, Visible, Red, 634 nm, diffuse
Alignment aid
LED, Red, 630 nm
Reading distance
0 mm ... 86 mm
Code resolution
≥ 0.08 mm1)≥ 0.13 mm2)
Supply voltage
5 V DC, ± 10 %, Via host12 V DC, ± 5 %, External supply
Current consumption
Operation (full charge mode): 1,200 mAOperation (minimum charge mode): 400 mAStandby current: 80 mA
Housing color
Blue, black
Enclosure rating
IP65IP68
Weight
402 g, incl. rechargeable battery
Dimensions (L x W x H)
132 mm x 77 mm x 185 mm
Readable code structures
1D codes, 2D codes, Stacked, direct-marked codes
Bar code types
Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, GS1 DataBar, Australian Post, US Planet, US Postnet, British Post, Japan Post, Dutch KIX Post
2D code types
Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode, TLC-39, Chinese Sensible (Han Xin)
Stacked code types
PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F
Code alignment
Omni-directional
Battery power
3,100 mAh, over 100,000 scans with full battery
Code buffer
9,000 Codes (EAN, for scanning in batch mode)
Ethernet
✔ , TCP/IP
PROFINET
✔
EtherCAT®
✔
Serial
✔ , RS-232 TTL
PROFIBUS DP
✔
Type of fieldbus integration
Optional over external fieldbus module CDF600-2
USB
✔
Bluetooth
✔
Remark
BluetoothTMV4.0, 2.402 ... 2.4830 GHz
Function
Wireless operating range up to 100 m (free view), batch function for expansion of the wireless radius, up to seven scanners communicate with one base station
Data transmission rate
≤ 3 Mbit/s
Optical indicators
3 LEDs (operational status, good read, radio connection status)
Acoustic indicators
Beeper, can be switched off
Vibration
Yes
Configuration software
Z-Up Tool
Shock resistance
Multiple falls onto concrete from a height of 2.4 m
Ambient operating temperature
–20 °C ... +50 °C
Storage temperature
–40 °C ... +70 °C
Relative humidity
95 %, Non-condensing
Ambient light immunity
108,000 lx
Items supplied
The rechargeable battery is included with delivery
Note
Not free of paint wetting impairment substances.
EU declaration of conformity
✔
UN38.3 Test Summary Report
✔
ECLASS 5.0
27280101
ECLASS 5.1.4
27280101
ECLASS 6.0
27280101
ECLASS 6.2
27280101
ECLASS 7.0
27280101
ECLASS 8.0
27280101
ECLASS 8.1
27280101
ECLASS 9.0
27280101
ECLASS 10.0
27280101
ECLASS 11.0
27280101
ECLASS 12.0
27280101
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
UNSPSC 16.0901
43211701
