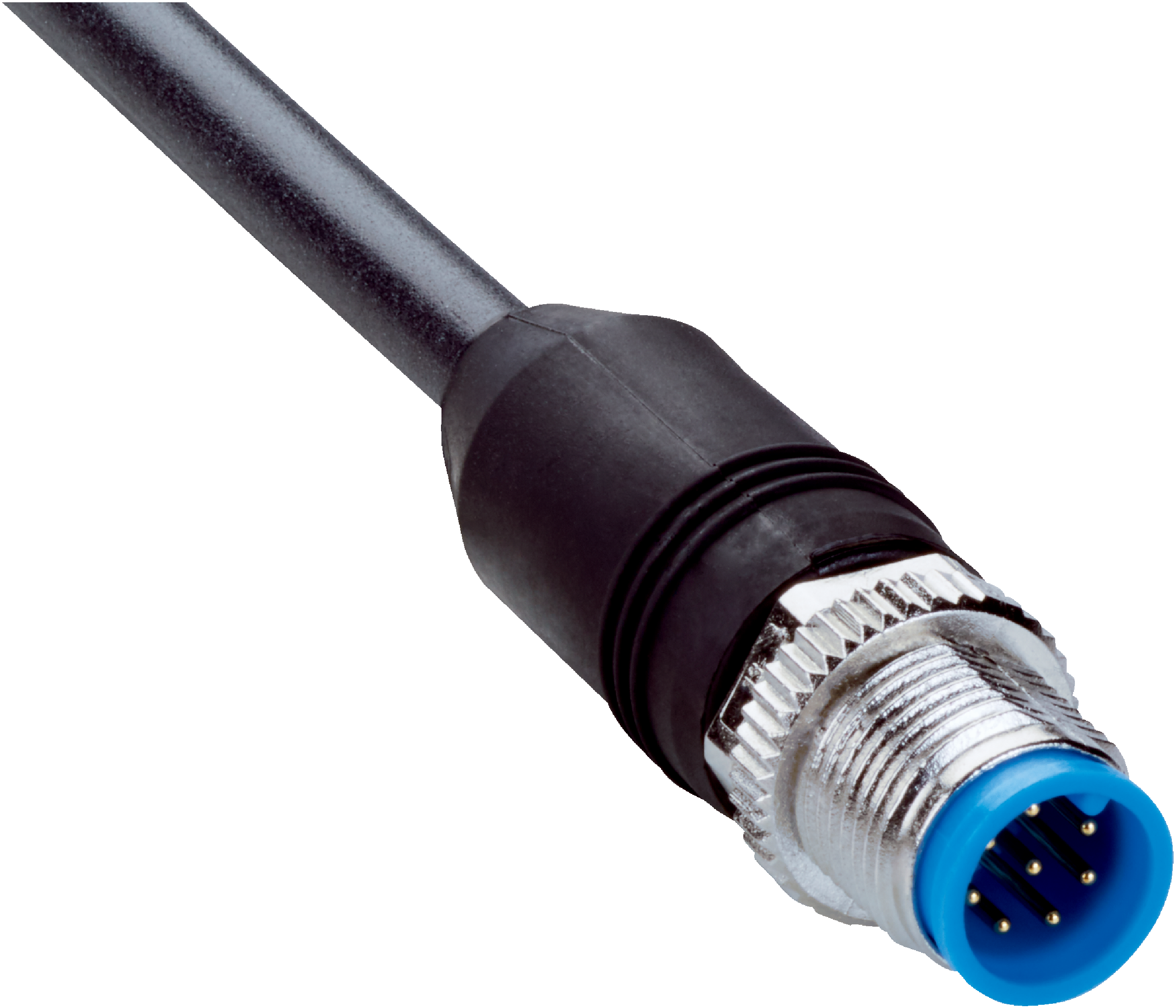

Connectors and cables | Sensor-actuator cables | YM2A18-300UA5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Male connector, M12, 8-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 30 m, 8-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
Connection type head A
Male connector, M12, 8-pin, straight, A-coded
Connection type head B
Flying leads
Locking plug connector
Screw connection
Connector material
TPU
Connector color
Black
Locking nut material
Zinc die-cast, nickel-plated
Tightening torque
0.6 Nm
Width across flats
13
Cable
30 m, 8-wire, PUR, halogen-free
Jacket material
PUR, halogen-free
Jacket color
Black
Cable diameter
5.8 mm
Conductor cross section
0.25 mm²
Shielding
Unshielded
Bending cycles
10,000,000
Rated impulse voltage
0.8 kV
Current loading
2 A
Traversing speed
3 m/s
Travelling distance
10 m
Acceleration
≤ 10 m/s²
Signal type
Sensor/actuator cable
Torsion force
180° / 1 m
Torsion cycles
2,000,000
Cycles per minutes
35
Application
Drag chain operationZones with oils and lubricantsRobot
UL File No.
E335179
Enclosure rating
IP65 / IP66K / IP67
Flexible use
–25 °C ... +80 °C
Stationary position
–40 °C ... +80 °C
Drag chain operation
–25 °C ... +80 °C
Head
–25 °C ... +85 °C
Contamination rating
3
Insulation resistance
100 MΩ
Overvoltage category
III
Specific insulation resistance
30 mΩ
Thermal resistance, piping
Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
ECLASS 5.0
19030312
ECLASS 5.1.4
19030312
ECLASS 6.0
27060304
ECLASS 6.2
27060304
ECLASS 7.0
27060304
ECLASS 8.0
27060304
ECLASS 8.1
27060304
ECLASS 9.0
27060304
ECLASS 10.0
27060304
ECLASS 11.0
27060304
ECLASS 12.0
27060304
ETIM 5.0
EC000830
ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
UNSPSC 16.0901
26121604
