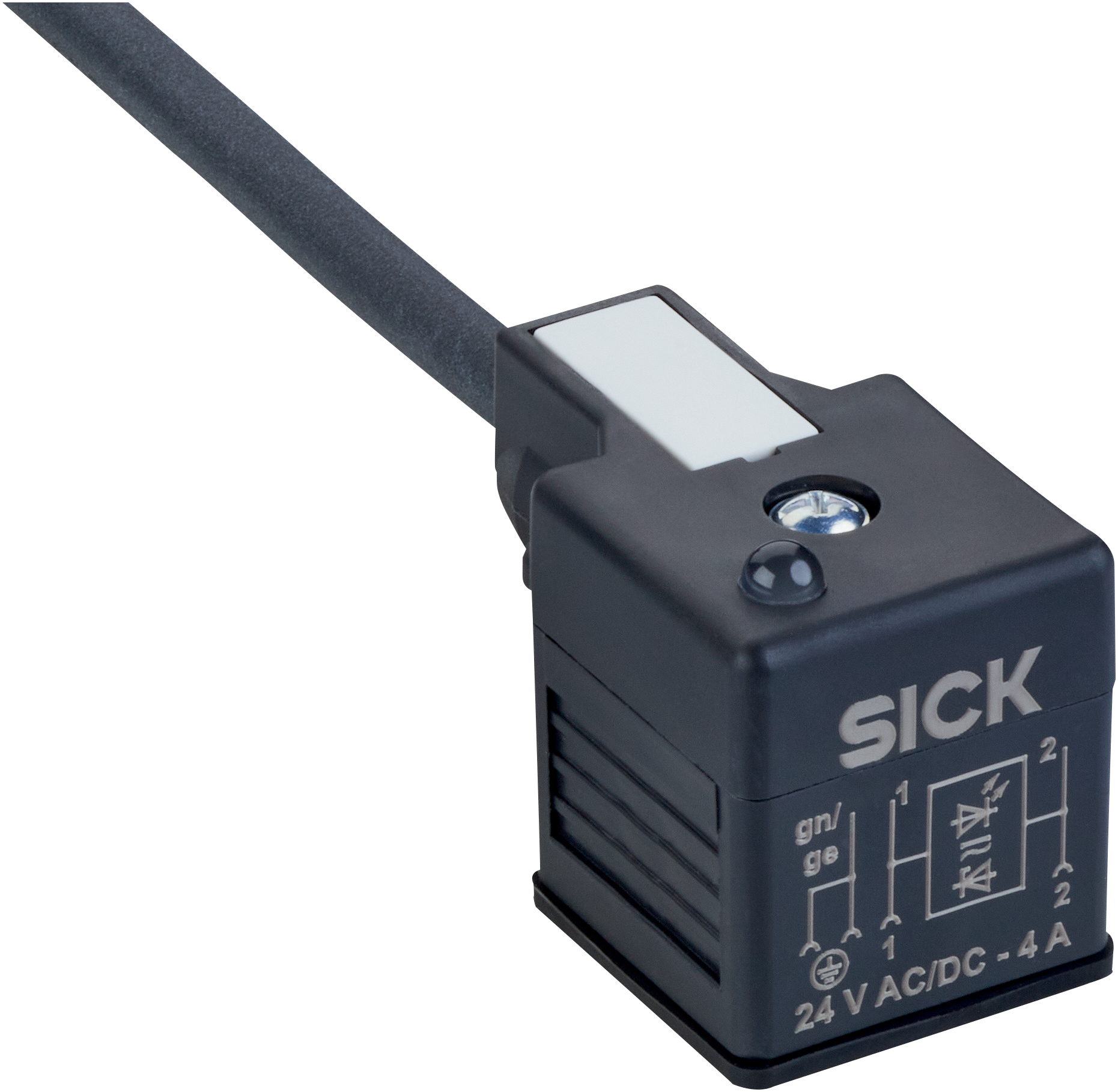

Connectors and cables | Sensor-actuator cables | YIDV14-030UE5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, Valve plug, 4-pin, angled | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 3 m, 3-wire, PUR, halogen-free | Application: Drag chain operation
Connection type head A
Female connector, Valve plug, 4-pin, angled
Connection type head B
Flying leads
Locking plug connector
Screw connection
Connector material
PUR
Connector color
Black
Locking nut material
Steel
Seal material
PUR
Tightening torque
0.4 Nm
Cable
3 m, 3-wire, PUR, halogen-free
Jacket material
PUR, halogen-free
Jacket color
Black
Cable diameter
5.9
Conductor cross section
0,75 mm²
Shielding
Unshielded
Bending cycles
10,000,000
Display LED
✔
Nominal voltage, cable
300 V AC
Test voltage, cable
2,500 V AC
Rated impulse voltage
0.8 kV
Current loading
4 A
Traversing speed
3 m/s
Travelling distance
10 m
Acceleration
≤ 10 m/s²
Signal type
Sensor/actuator cable
Torsion force
180° / 1 m
Torsion cycles
2,000,000
Cycles per minutes
35
Application
Drag chain operation
Enclosure rating
IP67
Flexible use
–25 °C ... +80 °C
Stationary position
–40 °C ... +80 °C
Head
–25 °C ... +85 °C
Contamination rating
3
Insulation resistance
100 MΩ
Overvoltage category
II
Specific insulation resistance
30 mΩ
Thermal resistance, piping
Flame retardant according to UL 1581 VW1 / CSA FT1
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
ECLASS 5.1.4
27269202
ECLASS 6.0
27269202
ECLASS 7.0
27449203
ECLASS 8.0
27449203
ECLASS 9.0
27440392
ECLASS 10.0
27440392
ECLASS 11.0
27440392
ECLASS 12.0
27440392
ECLASS 13.0
27440392
ECLASS 14.0
27440392
ECLASS 15.0
27440392
ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
ETIM 9.0
EC003249
ETIM 10.0
EC003249
UNSPSC 091201.0
26121604
UNSPSC 100501.0
26121604
UNSPSC 111201.0
26121604
UNSPSC 120901.0
26121604
UNSPSC 131201.0
26121604
UNSPSC 140801.0
26121604
UNSPSC 151101.0
26121604
UNSPSC 160901.0
26121604
UNSPSC 171001.0
26121604
UNSPSC 180801.0
26121604
UNSPSC 190501.0
26121604
UNSPSC 200601.0
26121604
UNSPSC 210901.0
26121604
UNSPSC 220601.0
26121604
UNSPSC 230701.0
26121604
UNSPSC 240301.0
26121604
UNSPSC 250901.0
26121604
UNSPSC 260801.0
26121604
