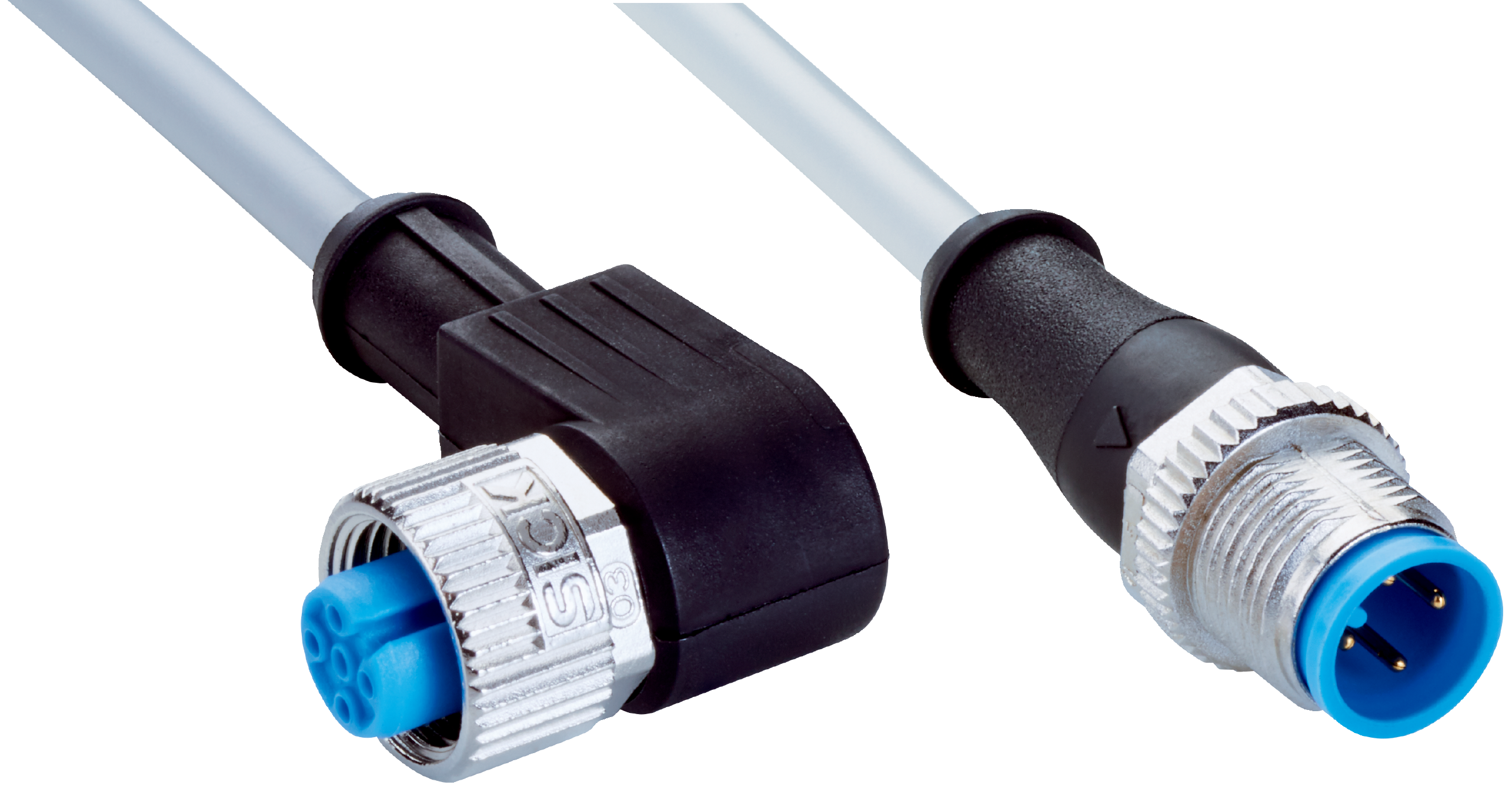

Connectors and cables | Sensor-actuator cables | YG2A24-C60VB4M2A24 | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.6 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
Connection type head A
Female connector, M12, 4-pin, angled, A-coded
Connection type head B
Male connector, M12, 4-pin, straight, A-coded
Locking plug connector
Screw connection
Connector material
TPU
Connector color
Black
Locking nut material
Zinc die-cast, nickel-plated
Seal material
FKM
Tightening torque
0.6 Nm
Width across flats
13
Cable
0.6 m, 4-wire, PVC
Jacket material
PVC
Jacket color
Gray
Cable diameter
5.3 mm
Conductor cross section
0.34 mm²
Shielding
Shielded
Nominal voltage, cable
300 V AC
Test voltage, cable
2,000 V AC
Rated impulse voltage
1.5 kV
Current loading
≤ 4 A
Signal type
Sensor/actuator cable
Application
Uncontaminated zonesZones with chemicals
UL File No.
E335179
Enclosure rating
IP65 / IP66K / IP67
Flexible use
–5 °C ... +80 °C
Stationary position
–30 °C ... +80 °C
Head
–25 °C ... +85 °C
Contamination rating
3
Insulation resistance
100 MΩ
Overvoltage category
III
Specific insulation resistance
30 mΩ
Thermal resistance, piping
Flame retardant according to UL 1581 VW1 / CSA FT1
EU declaration of conformity
✔
UK declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
ECLASS 5.0
19030312
ECLASS 5.1.4
19030312
ECLASS 6.0
27060304
ECLASS 6.2
27060304
ECLASS 7.0
27060304
ECLASS 8.0
27060304
ECLASS 8.1
27060304
ECLASS 9.0
27060304
ECLASS 10.0
27060304
ECLASS 11.0
27060304
ECLASS 12.0
27060304
ETIM 5.0
EC000830
ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
UNSPSC 16.0901
26121604
