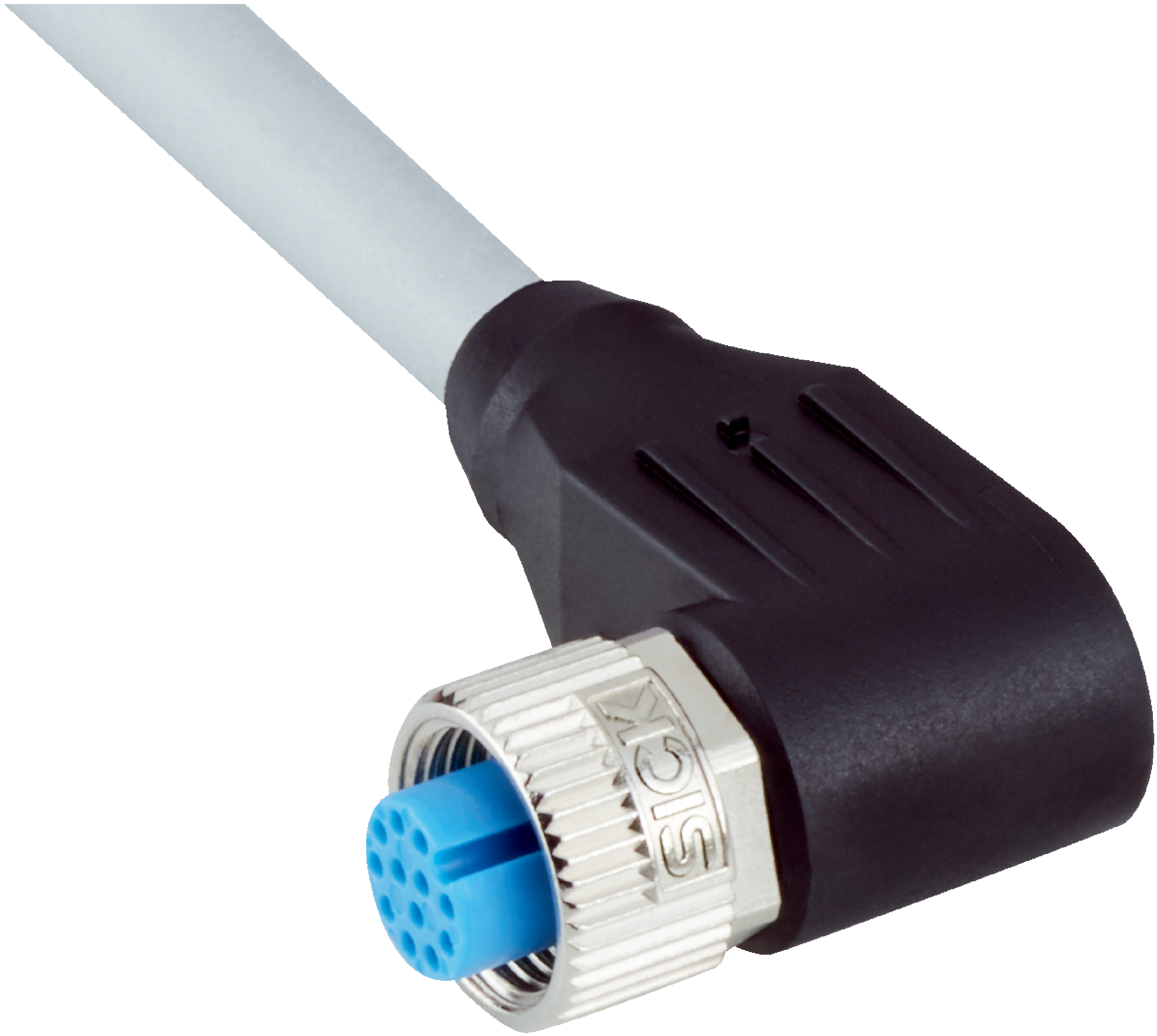

Connectors and cables | Sensor-actuator cables | YG2A1B-100UJ1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 12-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 12-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
Connection type head A
Female connector, M12, 12-pin, angled, A-coded
Connection type head B
Flying leads
Locking plug connector
Screw connection
Connector material
TPU
Connector color
Black
Locking nut material
Zinc die-cast, nickel-plated
Seal material
FKM
Tightening torque
0.6 Nm
Width across flats
13
Cable
10 m, 12-wire, PUR, halogen-free
Jacket material
PUR, halogen-free
Jacket color
Gray
Cable diameter
6.9 mm
Conductor cross section
0.25 mm²
Shielding
Unshielded
Flexible use
> 15 x cable diameter
Stationary position
> 10 x cable diameter
Bending cycles
≤ 3,000,000
Nominal voltage, cable
300 V AC
Test voltage, cable
1,500 V AC
Rated impulse voltage
0.8 kV
Current loading
1.5 A
Traversing speed
2 m/s
Travelling distance
5 m
Acceleration
≤ 10 m/s²
Signal type
Sensor/actuator cable
Torsion force
30°
Application
Drag chain operationZones with oils and lubricantsRobot
Enclosure rating
IP65 / IP66 / IP67
Drag chain operation
–20 °C ... +80 °C
Head
–25 °C ... +85 °C
Contamination rating
3
Insulation resistance
100 MΩ
Overvoltage category
III
Specific insulation resistance
30 mΩ
Thermal resistance, piping
Flame-retardant acc. to VDE 0472 Part 804 Test Type B
EU declaration of conformity
✔
China RoHS
✔
ECLASS 5.0
19030312
ECLASS 5.1.4
19030312
ECLASS 6.0
27060304
ECLASS 6.2
27060304
ECLASS 7.0
27060304
ECLASS 8.0
27060304
ECLASS 8.1
27060304
ECLASS 9.0
27060304
ECLASS 10.0
27060304
ECLASS 11.0
27060304
ECLASS 12.0
27060304
ETIM 5.0
EC000830
ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
UNSPSC 16.0901
26121604
