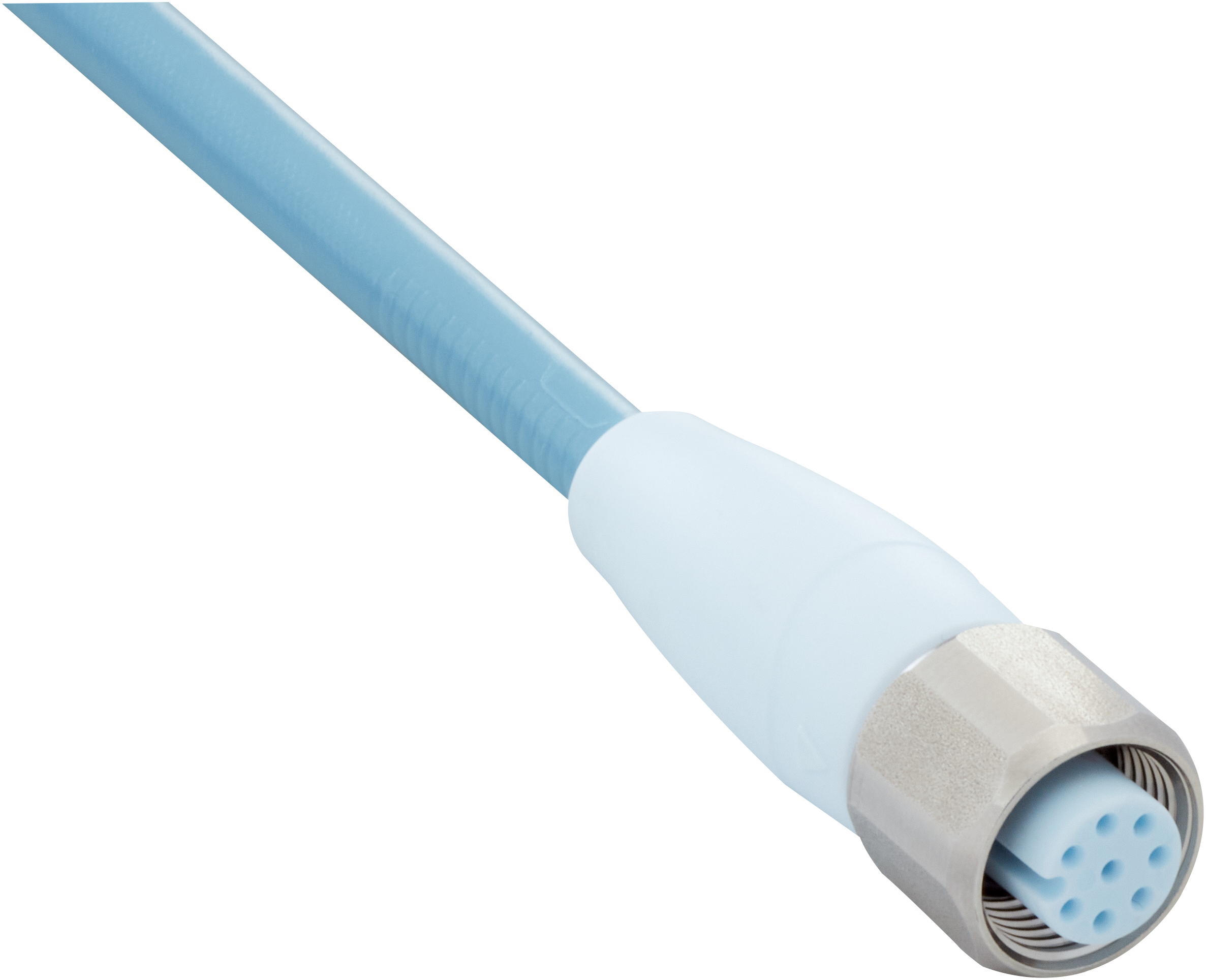

Connectors and cables | Other connectors and cables | YF2AP8-400PA4XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 40 m, 8-wire | Application: Drag chain operation, Robot
Connection type head A
Female connector, M12, 8-pin, straight, A-coded
Connection type head B
Flying leads
Locking plug connector
Screw connection
Connector material
PP
Connector color
Blue
Locking nut material
Stainless steel (V4A/1.4404)
Seal material
FKM
Tightening torque
0.6 Nm
Width across flats
14
Cable
40 m, 8-wire
Cable diameter
6.3 mm
Conductor cross section
0.25 mm²
Shielding
Unshielded
Bending cycles
4,000,000
Rated impulse voltage
0.8 kV
Current loading
2 A
Traversing speed
3 m/s
Travelling distance
10 m
Acceleration
≤ 10 m/s²
Signal type
Sensor/actuator cable
Torsion force
180° / 1 m
Torsion cycles
2,000,000
Cycles per minutes
35
Application
Drag chain operationRobot
UL File No.
E335179
Enclosure rating
IP65/ IP68/ IP69K
Flexible use
–25 °C ... +105 °C
Stationary position
–40 °C ... +105 °C
Drag chain operation
–25 °C ... +105 °C
Head
–25 °C ... +85 °C
Contamination rating
3
Insulation resistance
100 MΩ
Overvoltage category
III
Specific insulation resistance
30 mΩ
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
ECLASS 5.1.4
27069090
ECLASS 6.0
27069090
ECLASS 7.0
27069090
ECLASS 8.0
27069090
ECLASS 9.0
27069090
ECLASS 10.0
27069090
ECLASS 11.0
27069090
ECLASS 12.0
27069090
ECLASS 13.0
27069090
ECLASS 14.0
27069090
ECLASS 15.0
27069090
ETIM 6.0
EC002584
ETIM 7.0
EC002584
ETIM 8.0
EC002584
ETIM 9.0
EC002584
ETIM 10.0
EC002584
UNSPSC 091201.0
39121421
UNSPSC 100501.0
39121421
UNSPSC 111201.0
39121421
UNSPSC 120901.0
39121421
UNSPSC 131201.0
39121421
UNSPSC 140801.0
39121421
UNSPSC 151101.0
39121421
UNSPSC 160901.0
39121421
UNSPSC 171001.0
39121421
UNSPSC 180801.0
39121421
UNSPSC 190501.0
39121421
UNSPSC 200601.0
39121421
UNSPSC 210901.0
39121421
UNSPSC 220601.0
39121421
UNSPSC 230701.0
39121421
UNSPSC 240301.0
39121421
UNSPSC 250901.0
39121421
UNSPSC 260801.0
39121421
