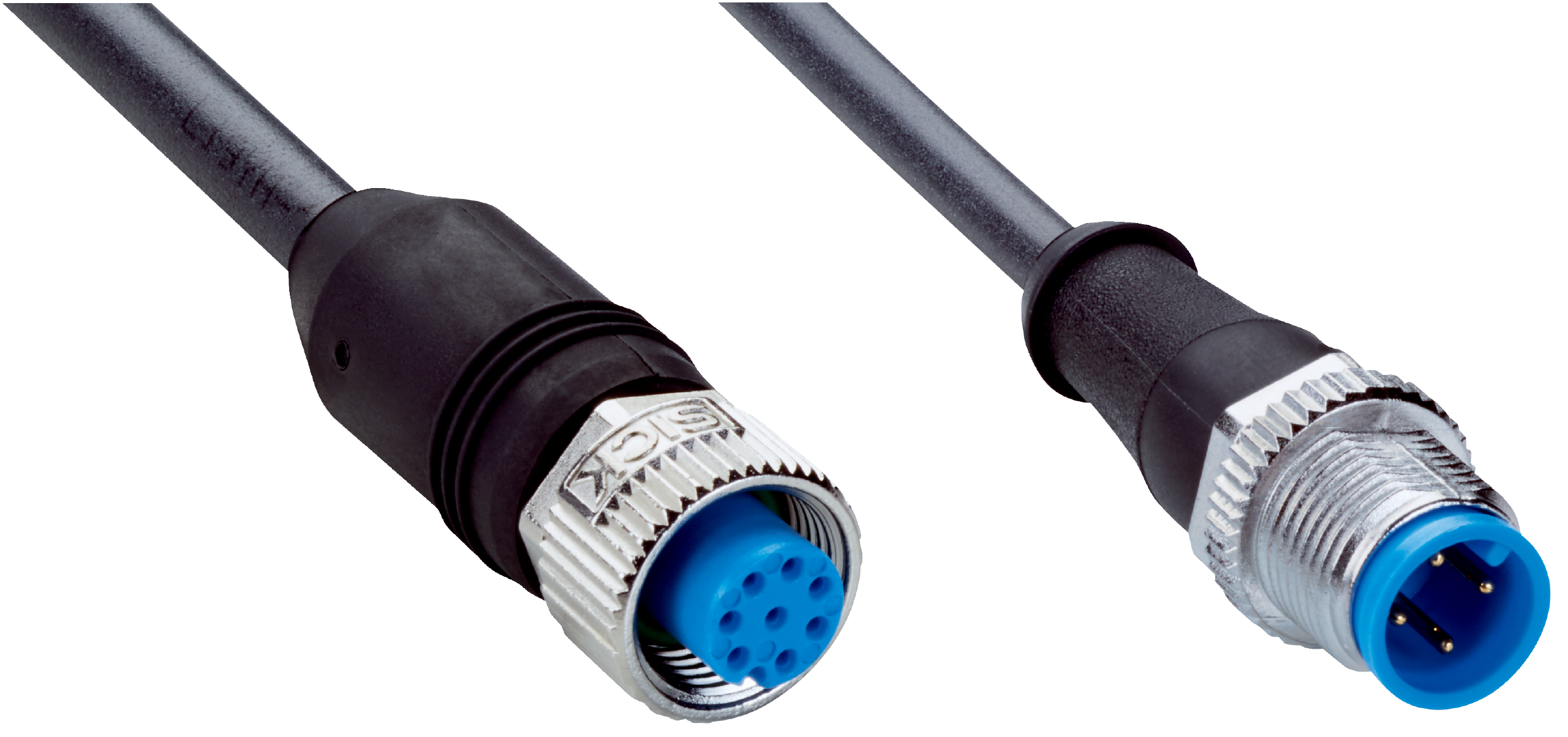

Connectors and cables | Other connectors and cables | YF2A24-C30S01M2A24 | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.5 m, 4-wire, PUR, halogen-free | Application: Zones with oils and lubricants, Drag chain operation, Robot
Connection type head A
Female connector, M12, 8-pin, straight, A-coded
Connection type head B
Male connector, M12, 4-pin, straight, A-coded
Locking plug connector
Screw connection
Connector material
TPU
Connector color
Black
Locking nut material
Zinc die-cast, nickel-plated
Seal material
FKM
Tightening torque
0.6 Nm
Width across flats
13
Cable
0.5 m, 4-wire, PUR, halogen-free
Jacket material
PUR, halogen-free
Jacket color
Black
Cable diameter
5.3 mm
Conductor cross section
0.34 mm²
Shielding
Shielded
Bending cycles
5,000,000
Rated impulse voltage
1.5 kV
Current loading
4 A
Traversing speed
3.3 m/s
Travelling distance
5 m
Acceleration
≤ 5 m/s²
Signal type
Sensor/actuator cable
Torsion force
1 m
Torsion cycles
2,000,000
Cycles per minutes
35
Application
Zones with oils and lubricantsDrag chain operationRobot
Enclosure rating
IP65/ IP67
Flexible use
–25 °C ... +80 °C
Stationary position
–40 °C ... +80 °C
Drag chain operation
–25 °C ... +80 °C
Head
–25 °C ... +85 °C
Contamination rating
3
Insulation resistance
100 MΩ
Overvoltage category
III
Specific insulation resistance
30 mΩ
Thermal resistance, piping
Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
EU declaration of conformity
✔
China RoHS
✔
ECLASS 5.1.4
27069090
ECLASS 6.0
27069090
ECLASS 7.0
27069090
ECLASS 8.0
27069090
ECLASS 9.0
27069090
ECLASS 10.0
27069090
ECLASS 11.0
27069090
ECLASS 12.0
27069090
ECLASS 13.0
27069090
ECLASS 14.0
27069090
ECLASS 15.0
27069090
ETIM 6.0
EC002584
ETIM 7.0
EC002584
ETIM 8.0
EC002584
ETIM 9.0
EC002584
ETIM 10.0
EC002584
UNSPSC 091201.0
39121421
UNSPSC 100501.0
39121421
UNSPSC 111201.0
39121421
UNSPSC 120901.0
39121421
UNSPSC 131201.0
39121421
UNSPSC 140801.0
39121421
UNSPSC 151101.0
39121421
UNSPSC 160901.0
39121421
UNSPSC 171001.0
39121421
UNSPSC 180801.0
39121421
UNSPSC 190501.0
39121421
UNSPSC 200601.0
39121421
UNSPSC 210901.0
39121421
UNSPSC 220601.0
39121421
UNSPSC 230701.0
39121421
UNSPSC 240301.0
39121421
UNSPSC 250901.0
39121421
UNSPSC 260801.0
39121421
