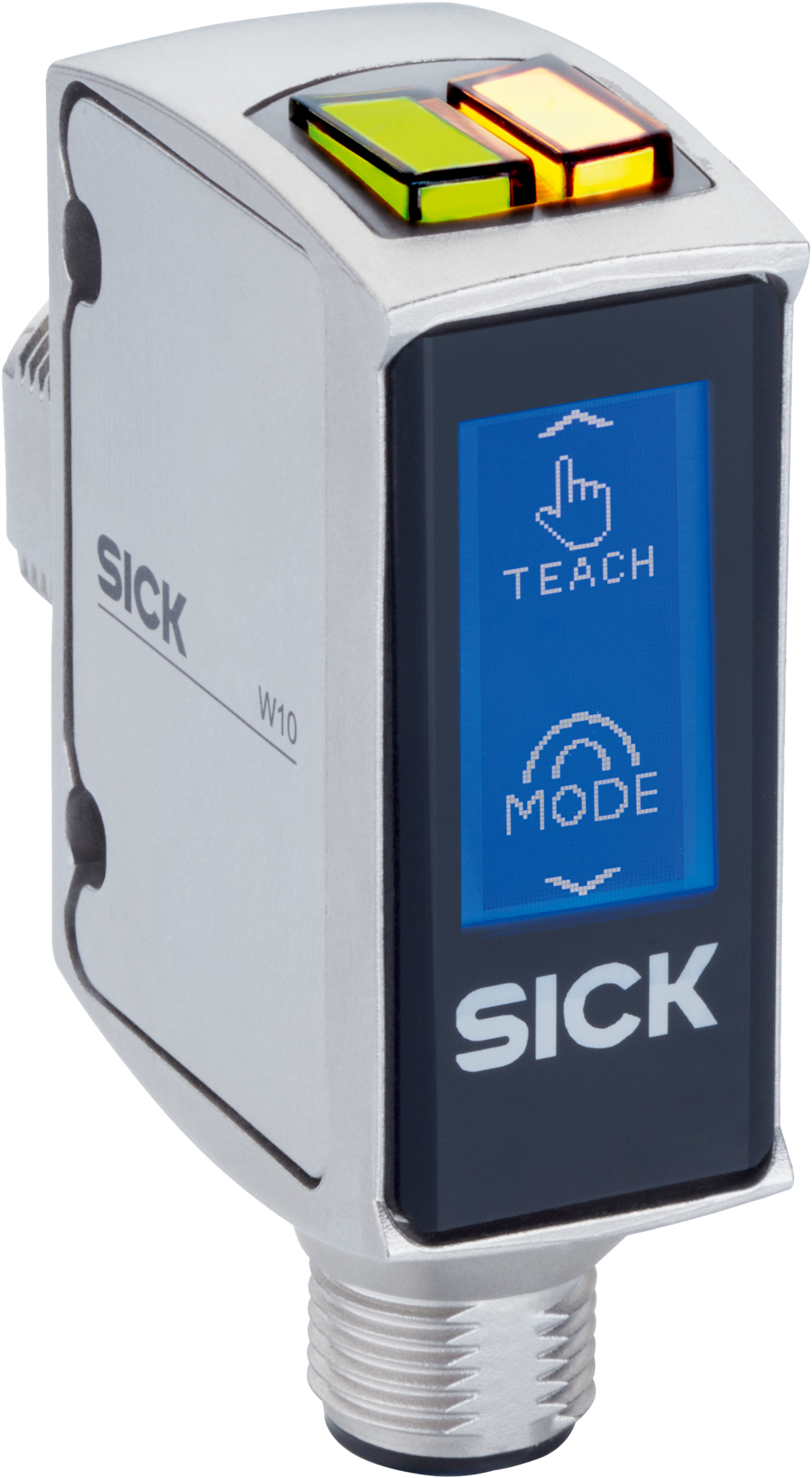

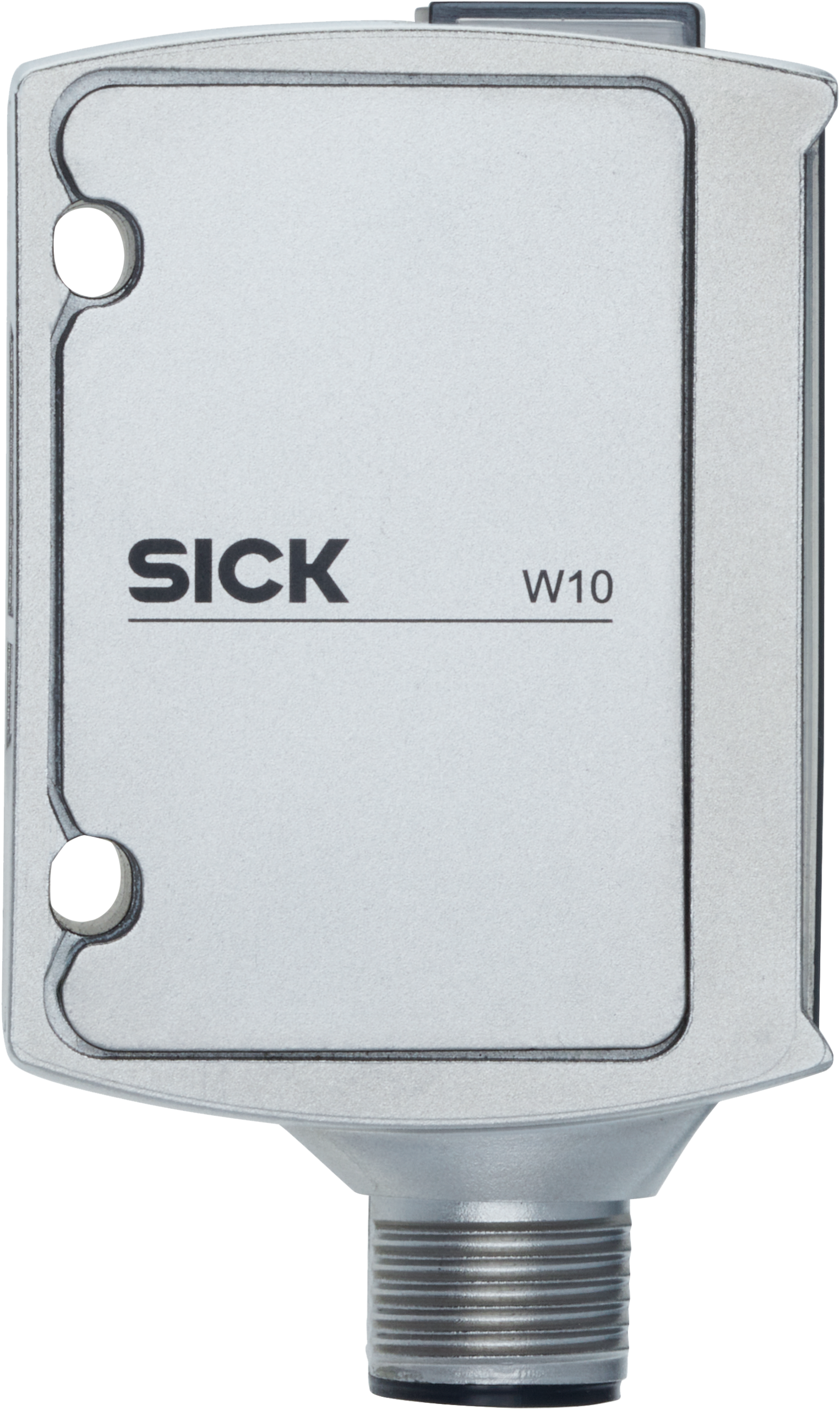

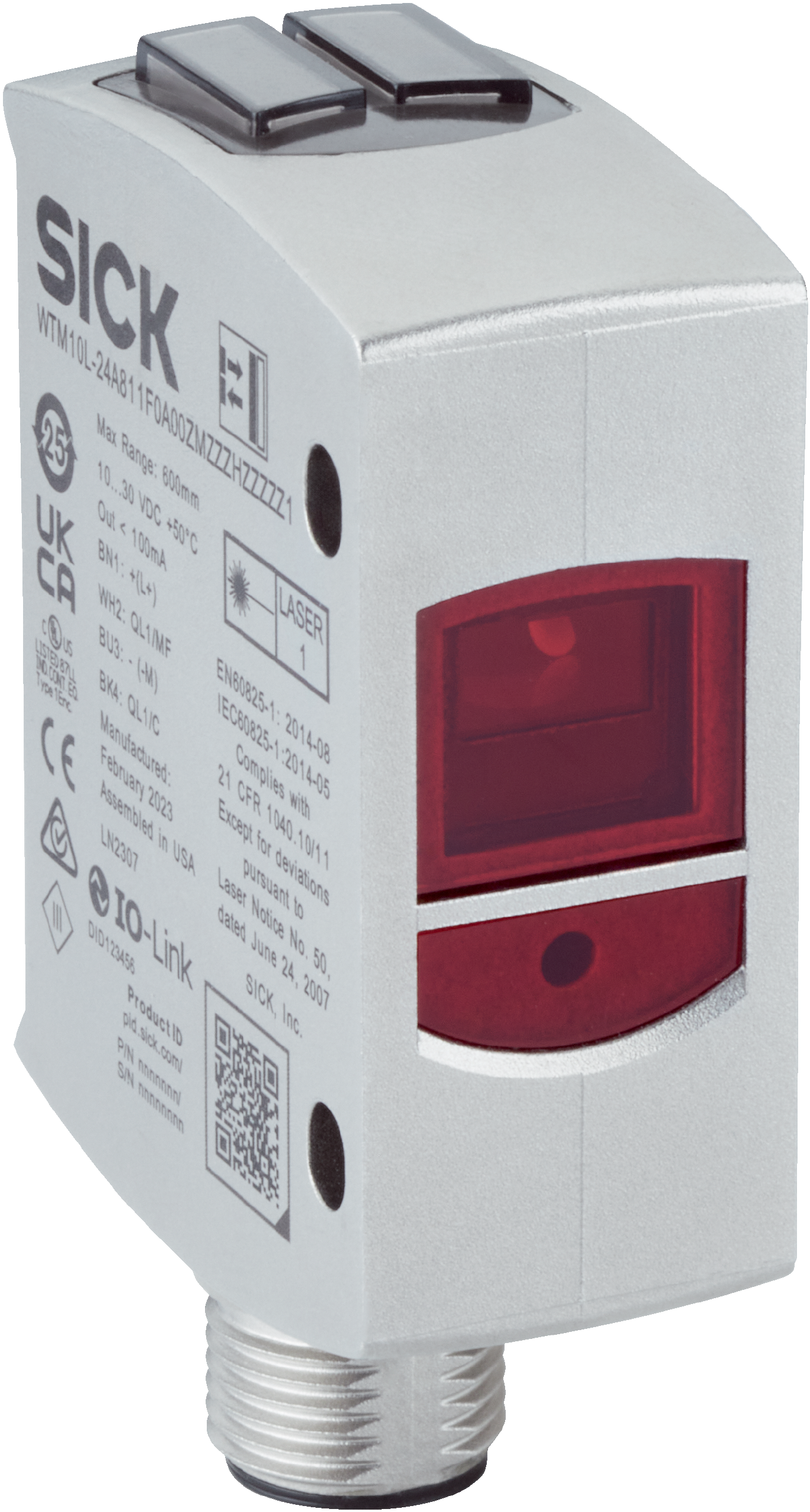

Photoelectric sensors | W10 | WTM10L-241612D0A00ZVZZZZZZZZZ1 | Sensing range min. / max.: 25 mm / 220 mm, 25 mm / 300 mm, 25 mm / 400 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Foreground suppression, MultiMode | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Display, IO-Link | Communication interface: IO-Link V1.1 | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task name: Base logics | Special features: MultiMode | Housing: Rectangular
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression, Foreground suppression, MultiMode
MultiMode
Background suppressionForeground suppressionSingle value teach-inTwo Value Teach-inManual teach-inApplicationSelect (Mode 1 - Speed, Mode 2 - Standard, Mode 3 - Precision)Measurement
Sensing range min.
25 mm (Mode 1 - Speed)
Sensing range max.
220 mm (Mode 1 - Speed)
Adjustable switching threshold for background suppression
25 mm ... 220 mm (Mode 1 - Speed)
Reference object
Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum distance between set sensing range and background (black 6% / white 90%)
2 mm, at a distance of 150 mm (Mode 1 - Speed)
Recommended sensing range for the best performance
50 mm ... 150 mm (Mode 1 - Speed)
Resolution
1 mm
Repeatability
< 0.5 %1)2)3)
Accuracy
< 3 %1)
Distance value output
Via IO-Link + display
Light source
Laser
Type of light
Visible red light
Shape of light spot
Point-shaped
Light spot size (distance)
Ø 0.2 mm (150 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)
< +/- 1.0° (at TU= +23 °C)
Normative reference
IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11, EN 60825-1:2014, IEC 60825-1:2014 (except for tolerances according to Laser Notice No. 56 dated May 8, 2019)
Laser class
14)
Wave length
655 nm
Pulse duration
4 µs
Maximum pulse power
< 2.5 mW
Average service life
50,000 h at TU= +25 °C
Touch display
For setting the sensing range and configuring the sensor parameters
Display
Display of mode, display of output states, display of the distance value, display of the set value
LED green
Operating indicatorStatic on: power onFlashing: IO-Link mode
LED yellow
Status of received light beamStatic on: object presentStatic off: object not present
Special features
MultiMode
Special applications
Detecting small objects, Detection of objects moving at high speeds, Detecting flat objects, Detecting uneven, shiny objects, Detection of poorly remitting and tilted objects
MTTFD
473 years
DCavg
0 %
TM(mission time)
10 years
IO-Link
✔ , IO-Link V1.1
Data transmission rate
COM2 (38,4 kBaud)
Cycle time
3.4 ms
Process data length
32 Bit
Process data structure
Bit 0 = switching signal QL1
VendorID
26
DeviceID HEX
0x80032D
DeviceID DEC
8389421
Compatible master port type
A
SIO mode support
Yes
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
≤ 5 Vpp
Usage category
DC-12 (According to EN 60947-5-2)DC-13 (According to EN 60947-5-2)
Current consumption
≤ 25 mA, without load. At UB= 24 V
Protection class
III
Number
2
Type
Push-pull: PNP/NPN, Individually adjustable
Switching mode
Light/dark switching
Output characteristic
Individually adjustable
Signal voltage PNP HIGH/LOW
Approx. UB-2.0 V / 0 V
Signal voltage NPN HIGH/LOW
Approx. UB-1.0 V / < 2.5 V
Output current Imax.
≤ 100 mA
Circuit protection outputs
Reverse polarity protected
Response time
1.8 ms2)3)
Repeatability (response time)
< 0,5 %
Switching frequency
275 Hz (Mode 1 - Speed)6)
BN 1
+ (L+)
WH 2
ǬL1/MFDigital output, dark switching, object present → output ǬL1 LOW (background suppression)
BU 3
- (M)
BK 4
QL1/CDigital output, light switching, object present → output QL1 HIGH (background suppression)
Dimensions (W x H x D)
18 mm x 57 mm x 42.2 mm
Connection
Male connector M12, 4-pin
Housing
Metal, Stainless steel V4A (1.4404, 316L)
Front screen
Plastic, PMMA
Display cover
Plastic, PMMA
LED
Plastic, ABS
Male connector
Metal, Stainless steel V4A (1.4404, 316L)
Weight
Approx. 100 g
Maximum tightening torque of the fixing screws
0.56 Nm
Enclosure rating
IP67 (EN 60529)IP69 (Replaces IP69K with ISO 20653: 2013-03)
Ambient operating temperature
–10 °C ... +55 °C
Ambient temperature, storage
–40 °C ... +75 °C
Warm-up time
Observe min. warm-up time of 15 minutes1)
Typ. Ambient light immunity
Artificial light: ≤ 15,000 lxSunlight: ≤ 15,000 lx
Air humidity
35 % ... 95 %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)
EN 60947-5-2, The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.
Smart Task name
Base logics
Logic function
DirectANDORWindowHysteresis
Timer function
DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
Inverter
Yes
Switching signal QL1
Switching output
Switching signal ǬL1
Switching output
Measuring range
Very cold, cold, moderate, warm, hot
Device status
Yes
Detailed device status
Yes
Operating hour counter
Yes
Operating hours counter with reset function
Yes
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
IO-Link certificate
✔
Laser safety (IEC 60825-1) certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.0
27270904
ECLASS 5.1.4
27270904
ECLASS 6.0
27270904
ECLASS 6.2
27270904
ECLASS 7.0
27270904
ECLASS 8.0
27270904
ECLASS 8.1
27270904
ECLASS 9.0
27270904
ECLASS 10.0
27270904
ECLASS 11.0
27270904
ECLASS 12.0
27270903
ETIM 5.0
EC002719
ETIM 6.0
EC002719
ETIM 7.0
EC002719
ETIM 8.0
EC002719
UNSPSC 16.0901
39121528
