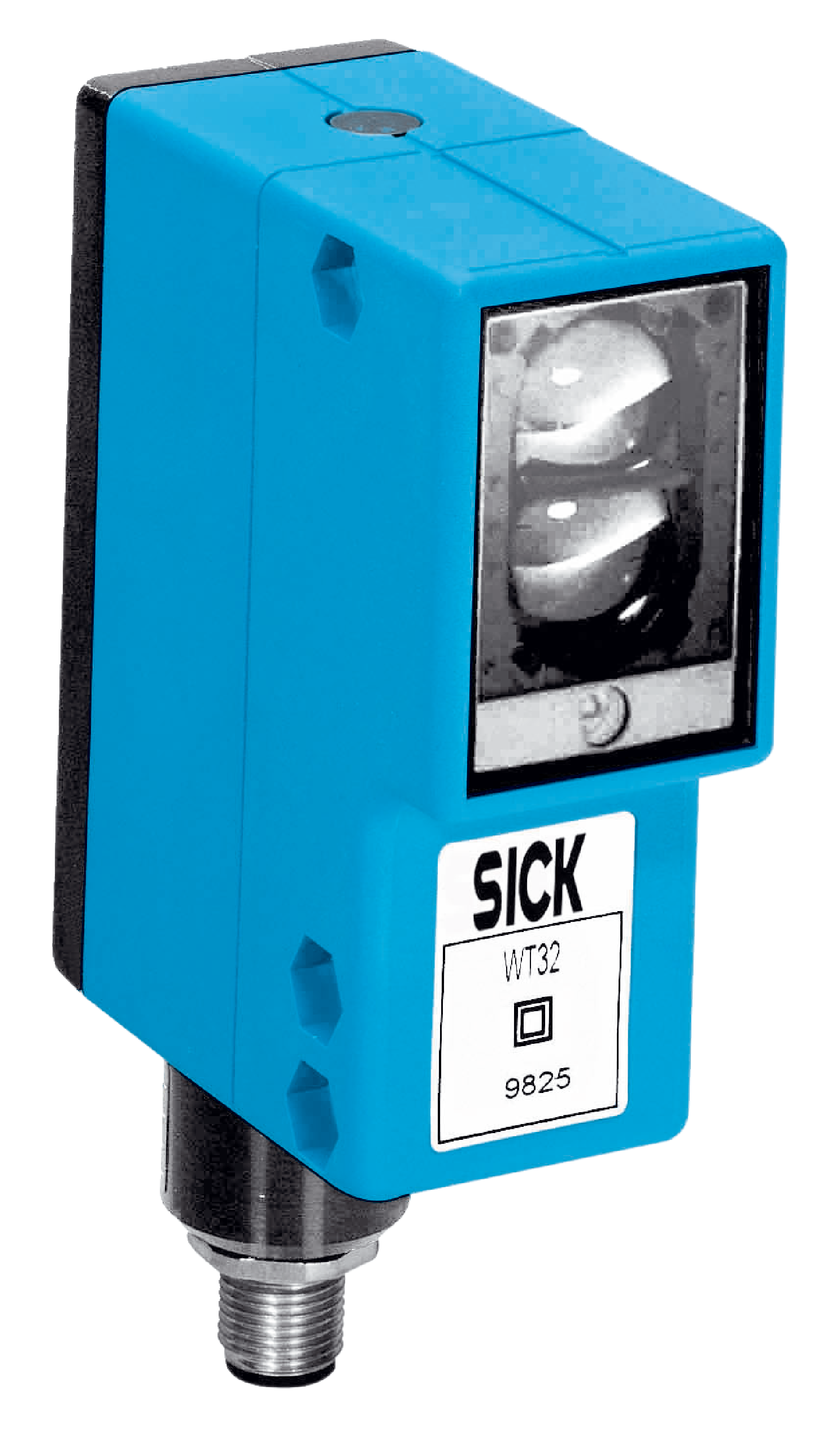

WT32-B330 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Dimensions (W x H x D)
36 mm x 85 mm x 72 mm
Housing design (light emission)
Rectangular
Sensing range max.
100 mm ... 2,000 mm1)
Sensing range
100 mm ... 2,000 mm1)
Type of light
Visible red light
Light source
LED
Adjustment
Potentiometer
Supply voltage
10 V DC ... 30 V DC
Current consumption
40 mA1)
Switching mode
Light/dark switching
Response time
≤ 5.6 ms2)
Connection type
Male connector M12, 4-pin
Housing material
Plastic, Glassfibre reinforced plastic
Optics material
Plastic, PMMA
Enclosure rating
IP65
Ambient operating temperature
–25 °C ... +55 °C
Ambient temperature, storage
–40 °C ... +70 °C
ECLASS 5.0
27270903
ECLASS 5.1.4
27270903
ECLASS 6.0
27270903
ECLASS 6.2
27270903
ECLASS 7.0
27270903
ECLASS 8.0
27270903
ECLASS 8.1
27270903
ECLASS 9.0
27270903
ECLASS 10.0
27270904
ECLASS 11.0
27270904
ETIM 5.0
EC001821
ETIM 6.0
EC001821
ETIM 7.0
EC002719
UNSPSC 16.0901
39121528
