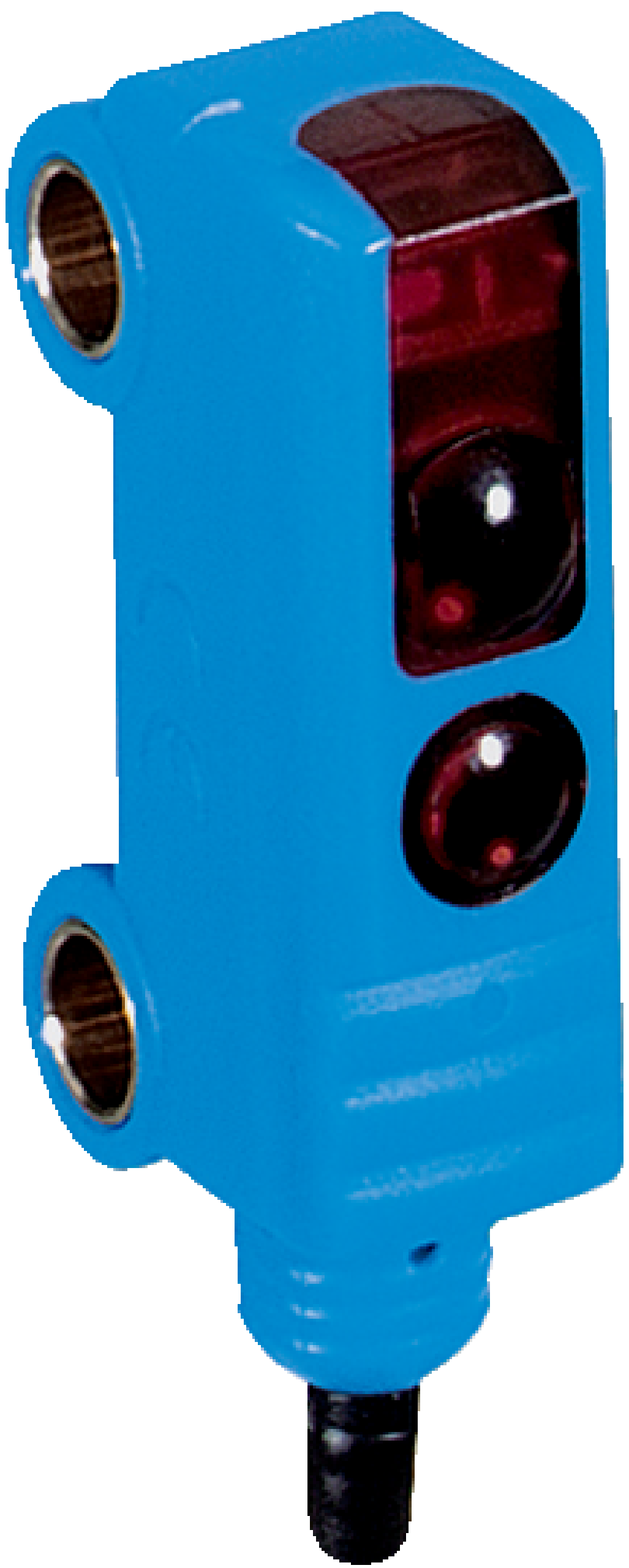

Photoelectric sensors | W2 | WT2S-N131S26 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light switching | Connection type: Cable, 3-wire, 2 m | Adjustment: None | Communication interface: -
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
7.6 mm x 25.1 mm x 12.5 mm
Housing design (light emission)
Rectangular
Sensing range max.
1 mm ... 30 mm1)
Sensing range
1 mm ... 28 mm1)
Focus
15 mm
Type of light
Visible blue light
Light spot size (distance)
1.5 mm x 3 mm (15 mm)
Wave length
460 nm
Adjustment
None
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Switching output
NPN
Switching mode
Light switching
Output current Imax.
≤ 50 mA
Response time
< 0.6 ms3)
Switching frequency
800 Hz4)
Connection type
Cable, 3-wire, 2 m5)
Cable material
Plastic, PVC
Cable diameter
Ø 2.4 mm
Circuit protection
A6)C7)D8)
Weight
20 g
Special device
✔
Reverse polarity protection
✔
Short-circuit protection
✔
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP67IP69K
Ambient operating temperature
–20 °C ... +50 °C
Ambient temperature, storage
–40 °C ... +75 °C
ECLASS 5.0
27270903
ECLASS 5.1.4
27270903
ECLASS 6.0
27270903
ECLASS 6.2
27270903
ECLASS 7.0
27270903
ECLASS 8.0
27270903
ECLASS 8.1
27270903
ECLASS 9.0
27270903
ECLASS 10.0
27270904
ECLASS 11.0
27270904
ECLASS 12.0
27270903
ETIM 5.0
EC001821
ETIM 6.0
EC001821
ETIM 7.0
EC002719
ETIM 8.0
EC002719
UNSPSC 16.0901
39121528
