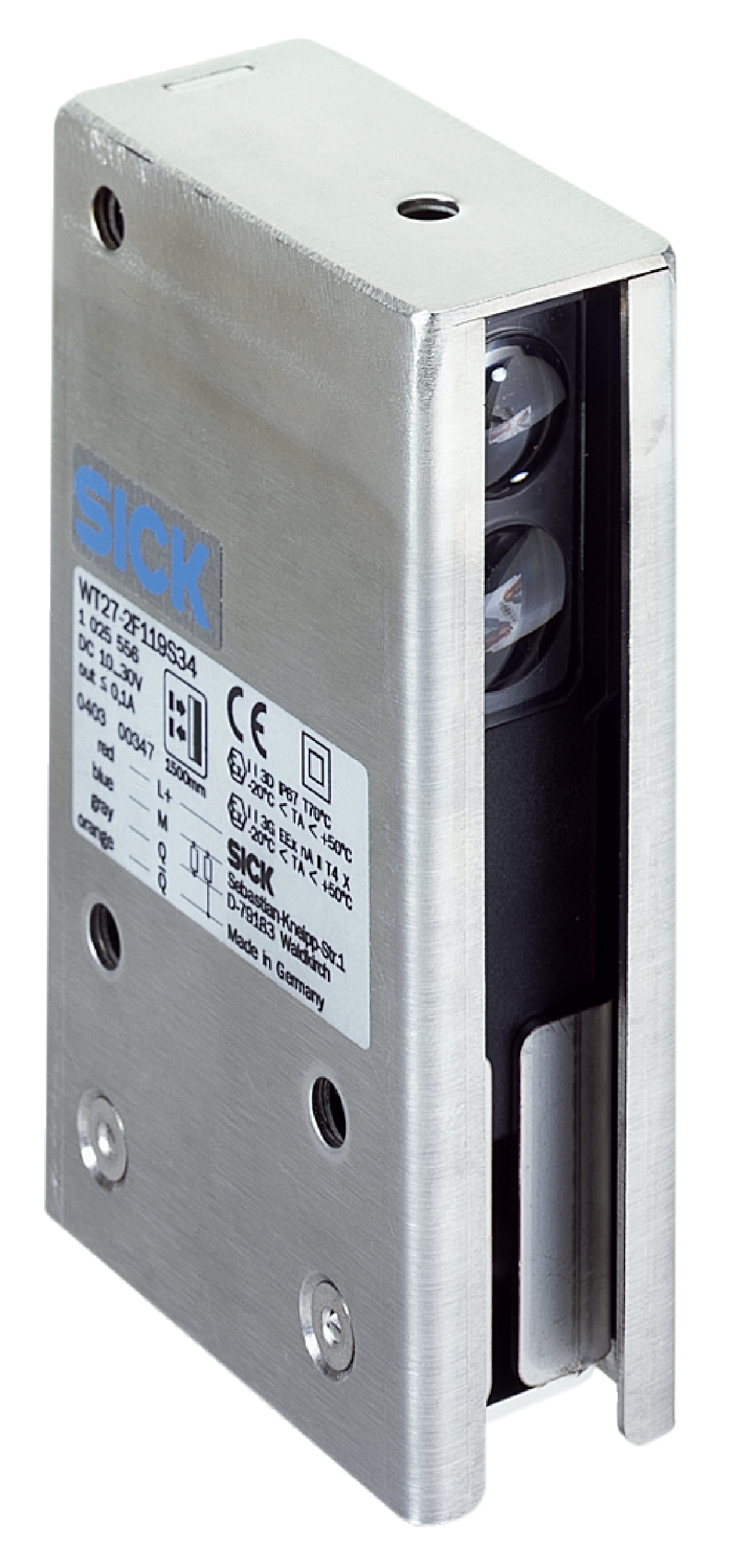

WT27-2F119S34 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 10 m | Light source: LED | Adjustment: Potentiometer
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
31.4 mm x 101.3 mm x 68.4 mm
Housing design (light emission)
Rectangular
Sensing range max.
100 mm ... 1,500 mm1)
Sensing range
100 mm ... 1,500 mm1)
Type of light
Infrared light
Light source
LED
Adjustment
Potentiometer
Supply voltage
10 V DC ... 30 V DC
Ripple
< 5 Vpp
Current consumption
25 mA1)
Switching output
PNP
Switching mode
Light/dark switching
Response time
≤ 2 ms2)
Connection type
Cable, 10 m3)
Cable material
PVC
Conductor cross section
0.25 mm²
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP67
Ambient operating temperature
–20 °C ... +50 °C
Ambient temperature, storage
–40 °C ... +75 °C
UL File No.
EEx II 3D IP67 T70°C, ATEX Nr. 1845Q & EEx II 3G n A II T4 X
