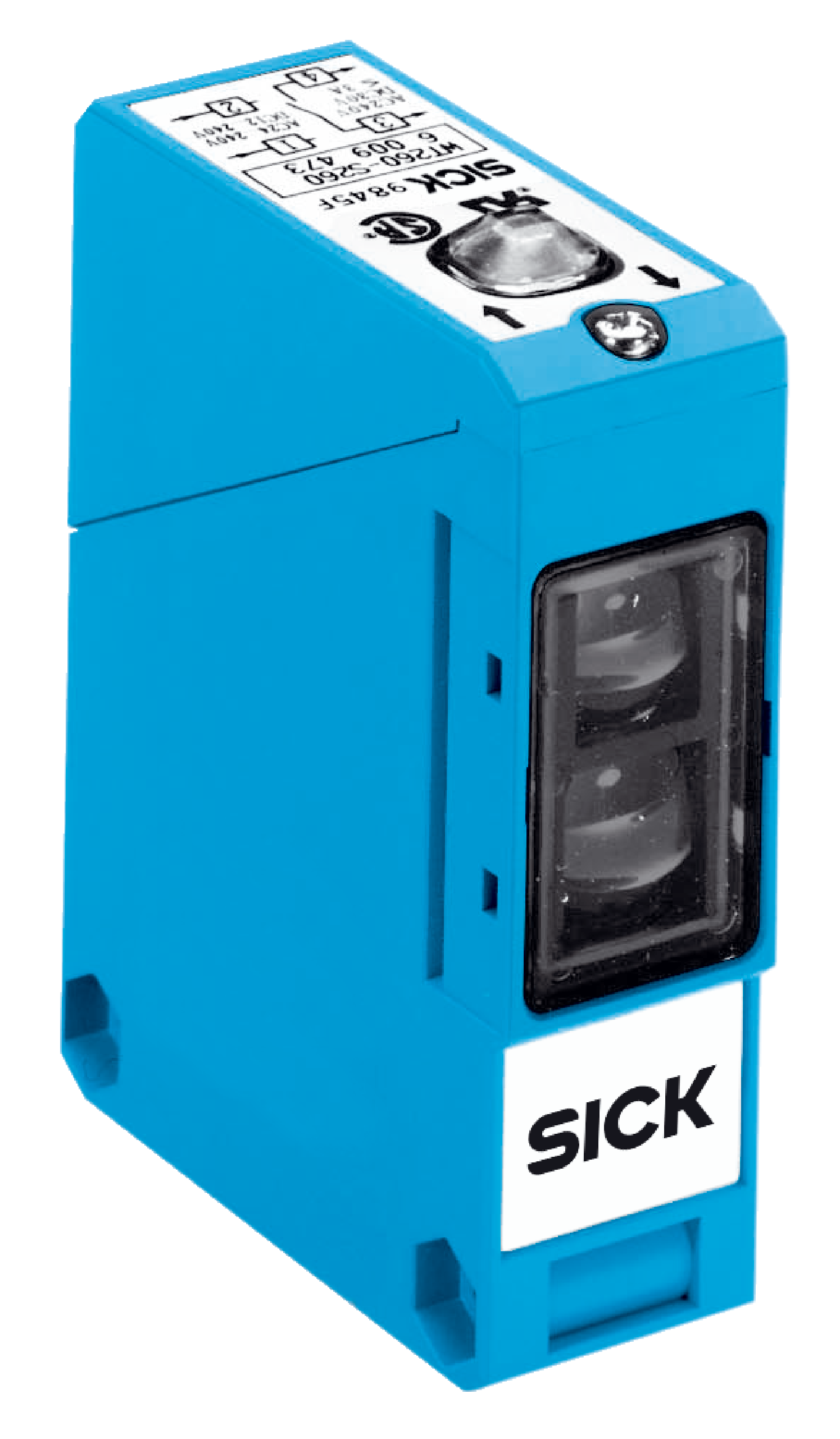

Compact photoelectric sensors | W260 | WT260-S260 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Cable gland | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W260
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
25 mm x 77.8 mm x 63 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 mm ... 380 mm1)
Sensing range
0 mm ... 380 mm2)75 mm ... 160 mm3)
Focus
Approx. 1.5°
Type of light
Infrared light
Light source
LED4)
Light spot size (distance)
Ø 17 mm (300 mm)
Angle of dispersion
Approx. 1.5°
Adjustment
Potentiometer, 270°
Supply voltage
12 V DC ... 240 V DC1)24 V AC ... 240 V AC1)
Power consumption
≤ 5 VA
Switching output
Relay, electrically isolated2)
Output function
NO
Switching mode
Light/dark switching2)
Switching mode selector
Selectable via light/dark selector
Switching current (switching voltage)
3 A (240 V AC)3 A (30 V DC)
Response time
≤ 20 ms
Switching frequency
25 Hz3)
Connection type
Cable gland
Circuit protection
A4)C5)
Protection class
II6)
Weight
120 g
Housing material
Plastic, ABS
Optics material
Plastic, PC
Enclosure rating
IP66
Items supplied
Mounting bracket BEF-W260
Ambient operating temperature
–25 °C ... +55 °C
Ambient temperature, storage
–40 °C ... +70 °C
UL File No.
NRNT2.E128350 & NRNT8.E128350
ECLASS 5.1.4
27270903
ECLASS 6.0
27270903
ECLASS 7.0
27270903
ECLASS 8.0
27270903
ECLASS 9.0
27270903
ECLASS 10.0
27270903
ECLASS 11.0
27270903
ECLASS 12.0
27270903
ECLASS 13.0
27270903
ECLASS 14.0
27270903
ECLASS 15.0
27270903
ETIM 6.0
EC002719
ETIM 7.0
EC002719
ETIM 8.0
EC002719
ETIM 9.0
EC002719
ETIM 10.0
EC002719
UNSPSC 091201.0
32151804
UNSPSC 100501.0
32151804
UNSPSC 111201.0
32151804
UNSPSC 120901.0
32151804
UNSPSC 131201.0
32151804
UNSPSC 140801.0
32151804
UNSPSC 151101.0
32151804
UNSPSC 160901.0
32151804
UNSPSC 171001.0
32151804
UNSPSC 180801.0
32151804
UNSPSC 190501.0
32151804
UNSPSC 200601.0
32151804
UNSPSC 210901.0
32151804
UNSPSC 220601.0
32151804
UNSPSC 230701.0
32151804
UNSPSC 240301.0
32151804
UNSPSC 250901.0
32151804
UNSPSC 260801.0
32151804
