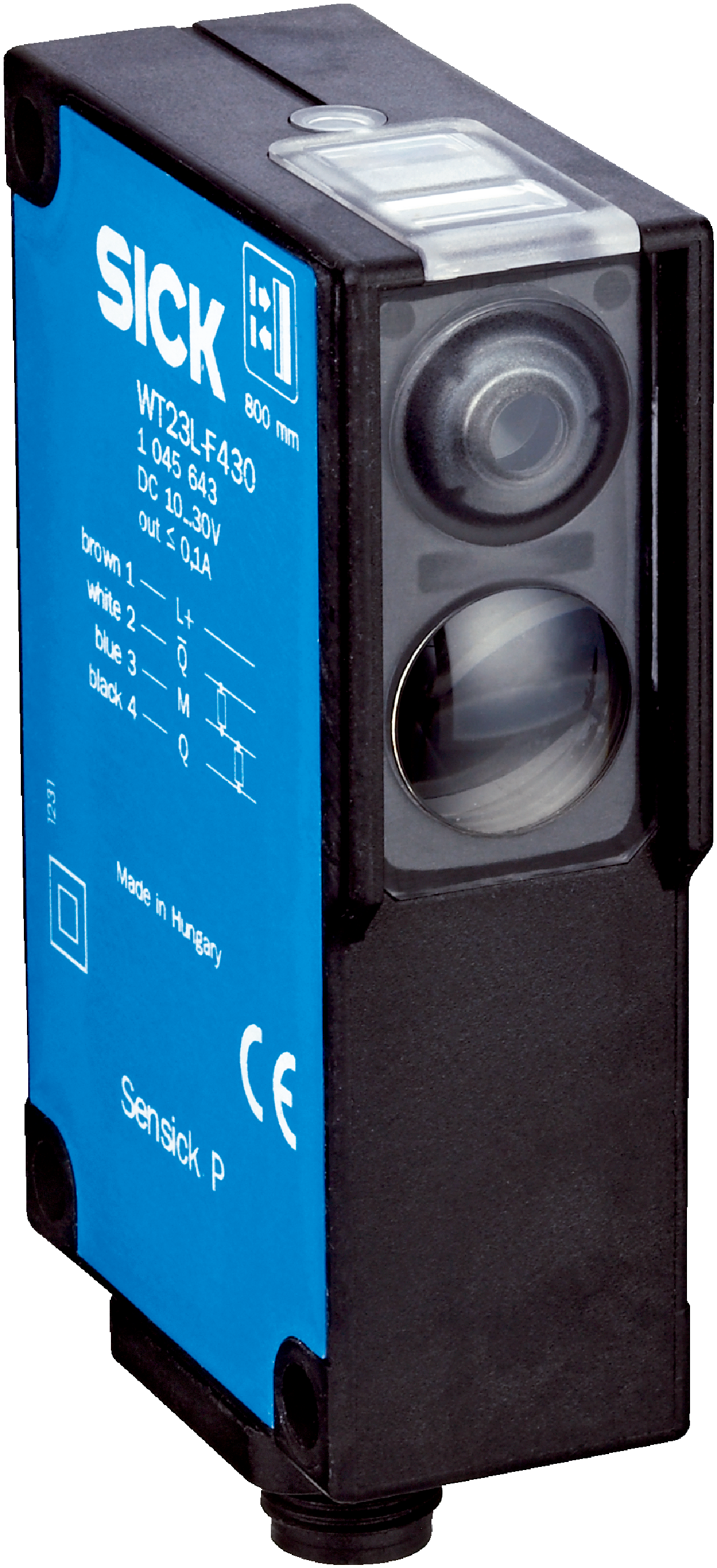

Compact photoelectric sensors | W23 Laser | WT23L-F430 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: Laser | Adjustment: Potentiometer | Laser class: 1 | Communication interface: -
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
24.6 mm x 80 mm x 53.5 mm
Housing design (light emission)
Rectangular
Sensing range max.
50 mm ... 800 mm
Type of light
Visible red light
Light source
Laser1)
Light spot size (distance)
Ø 2 mm (400 mm)
Wave length
650 nm
Laser class
1 (IEC 60825-1)
Adjustment
Potentiometer
Special applications
Detecting small objects
Supply voltage
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Current consumption
35 mA3)
Switching output
PNP
Output function
Complementary
Switching mode
Light/dark switching
Output current Imax.
≤ 100 mA
Response time
≤ 25 ms4)
Switching frequency
50 Hz5)
Connection type
Male connector M12, 4-pin
Circuit protection
A6)C7)D8)
Protection class
II9)
Weight
100 g
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP65
Ambient operating temperature
–10 °C ... +45 °C
Ambient temperature, storage
–10 °C ... +75 °C
UL File No.
NRKH.E181493 & NRKH7.E181493
MTTFD
404 years
DCavg
0 %
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
Laser safety (IEC 60825-1) certificate
✔
ECLASS 5.1.4
27270903
ECLASS 6.0
27270903
ECLASS 7.0
27270903
ECLASS 8.0
27270903
ECLASS 9.0
27270903
ECLASS 10.0
27270903
ECLASS 11.0
27270903
ECLASS 12.0
27270903
ECLASS 13.0
27270903
ECLASS 14.0
27270903
ECLASS 15.0
27270903
ETIM 6.0
EC002719
ETIM 7.0
EC002719
ETIM 8.0
EC002719
ETIM 9.0
EC002719
ETIM 10.0
EC002719
UNSPSC 091201.0
32151804
UNSPSC 100501.0
32151804
UNSPSC 111201.0
32151804
UNSPSC 120901.0
32151804
UNSPSC 131201.0
32151804
UNSPSC 140801.0
32151804
UNSPSC 151101.0
32151804
UNSPSC 160901.0
32151804
UNSPSC 171001.0
32151804
UNSPSC 180801.0
32151804
UNSPSC 190501.0
32151804
UNSPSC 200601.0
32151804
UNSPSC 210901.0
32151804
UNSPSC 220601.0
32151804
UNSPSC 230701.0
32151804
UNSPSC 240301.0
32151804
UNSPSC 250901.0
32151804
UNSPSC 260801.0
32151804
