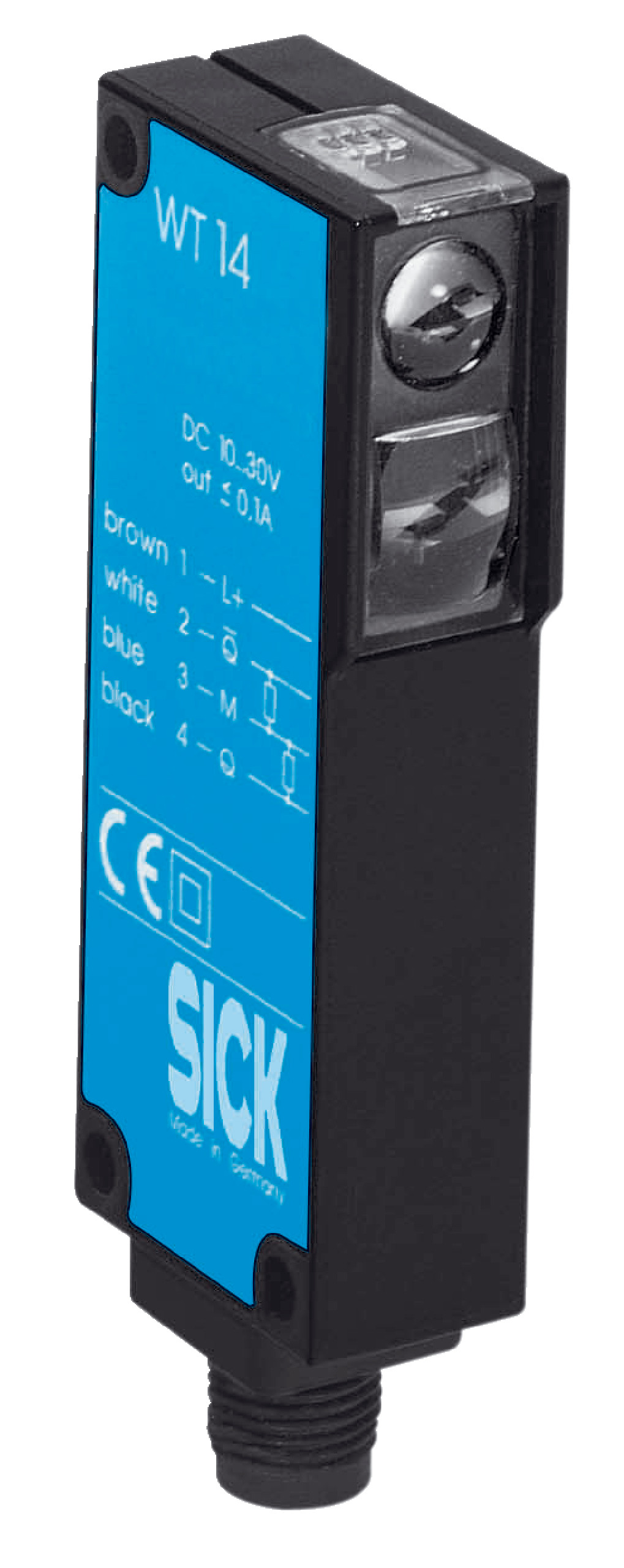

WT14-P112 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 2 m | Light source: LED | Adjustment: Potentiometer
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
17 mm x 75 mm x 32.5 mm
Housing design (light emission)
Rectangular
Sensing range max.
50 mm ... 1,500 mm1)
Sensing range
50 mm ... 1,200 mm1)
Type of light
Infrared light
Light source
LED
Adjustment
Potentiometer
Supply voltage
18 V DC ... 30 V DC
Ripple
< 5 Vpp
Current consumption
25 mA1)
Switching output
PNP
Switching mode
Light/dark switching
Response time
< 2.5 ms2)
Connection type
Cable, 2 m3)
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP65
Ambient operating temperature
–25 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +70 °C
UL File No.
NRKH.E181493 & NRKH7.E181493
ECLASS 5.0
27270904
ECLASS 5.1.4
27270904
ECLASS 6.0
27270904
ECLASS 6.2
27270904
ECLASS 7.0
27270904
ECLASS 8.0
27270904
ECLASS 8.1
27270904
ECLASS 9.0
27270904
ECLASS 10.0
27270904
ECLASS 11.0
27270904
ETIM 5.0
EC002719
ETIM 6.0
EC002719
ETIM 7.0
EC002719
UNSPSC 16.0901
39121528
