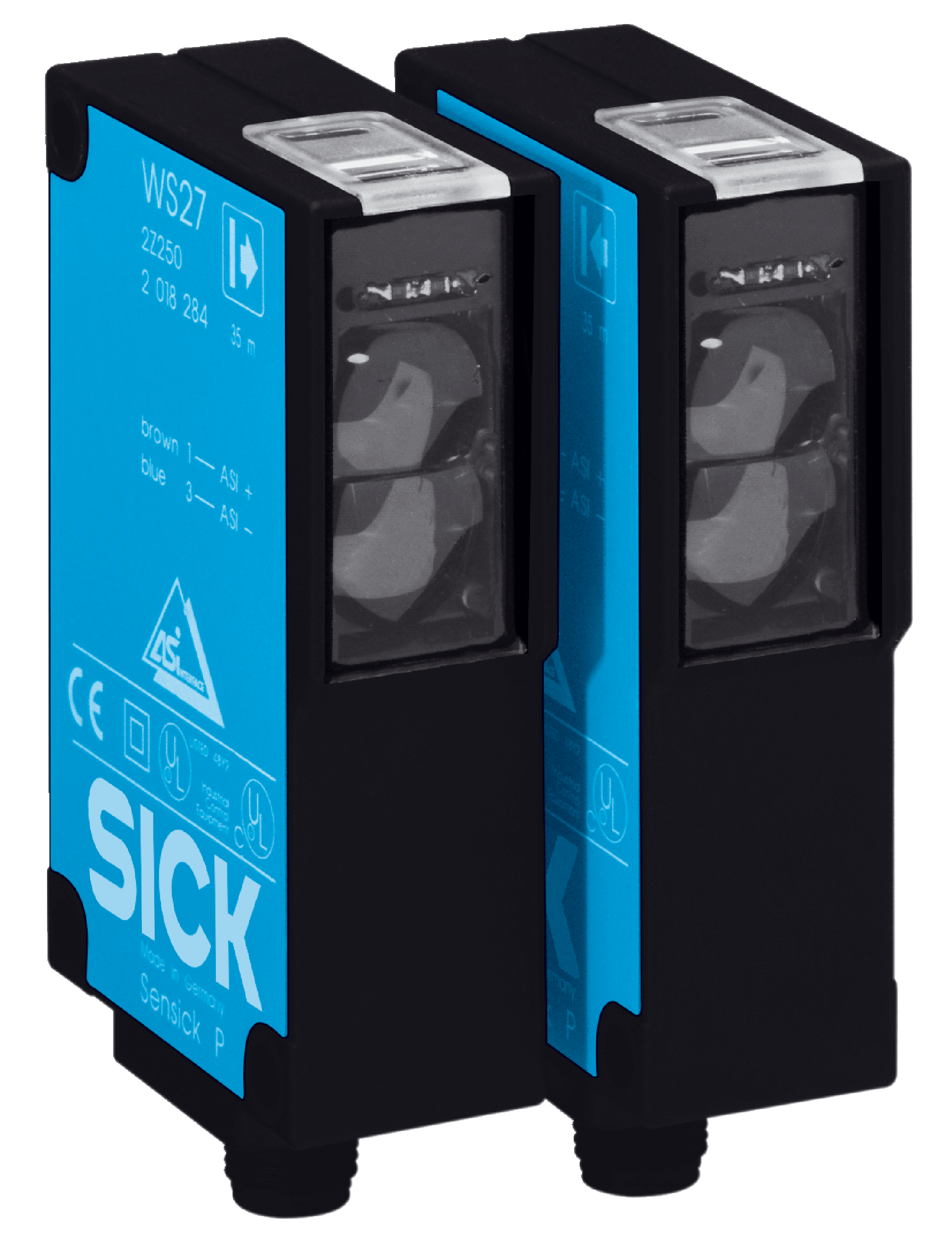

Photoelectric sensors | W27 | WS/WE27-2Z250 | Sensing range max.: 0 m ... 35 m | Functional principle: Through-beam photoelectric sensor | Connection type: Male connector M12, 4-pin | Adjustment: None
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
24.6 mm x 80 mm x 53.5 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 m ... 35 m
Sensing range
0 m ... 35 m
Focus
Approx. 3°
Type of light
Visible red light
Light source
LED1)
Light spot size (distance)
Ø 1,200 mm (25 m)
Angle of dispersion
Approx. 3°
Adjustment
None
Supply voltage UB
26.5 V DC ... 31.6 V DC1)
Ripple
± 5 %2)
Power consumption, sender
35 mA3)
Power consumption, receiver
40 mA3)
Response time
< 500 µs4)
Switching frequency
1,000 Hz5)
Connection type
Male connector M12, 4-pin
Circuit protection
A6)C7)
Protection class
II
Kaal
200 g
Front screen heating
✔
Actuator Sensor Interface Profil
S D.1, S 1.1
Housing material
Plastic, ABS
Enclosure rating
IP67
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
UL File No.
NRKH.E181493 & NRKH7.E181493
ECLASS 5.0
27270901
ECLASS 5.1.4
27270901
ECLASS 6.0
27270901
ECLASS 6.2
27270901
ECLASS 7.0
27270901
ECLASS 8.0
27270901
ECLASS 8.1
27270901
ECLASS 9.0
27270901
ECLASS 10.0
27270901
ECLASS 11.0
27270901
ECLASS 12.0
27270901
ETIM 5.0
EC002716
ETIM 6.0
EC002716
ETIM 7.0
EC002716
ETIM 8.0
EC002716
UNSPSC 16.0901
39121528
