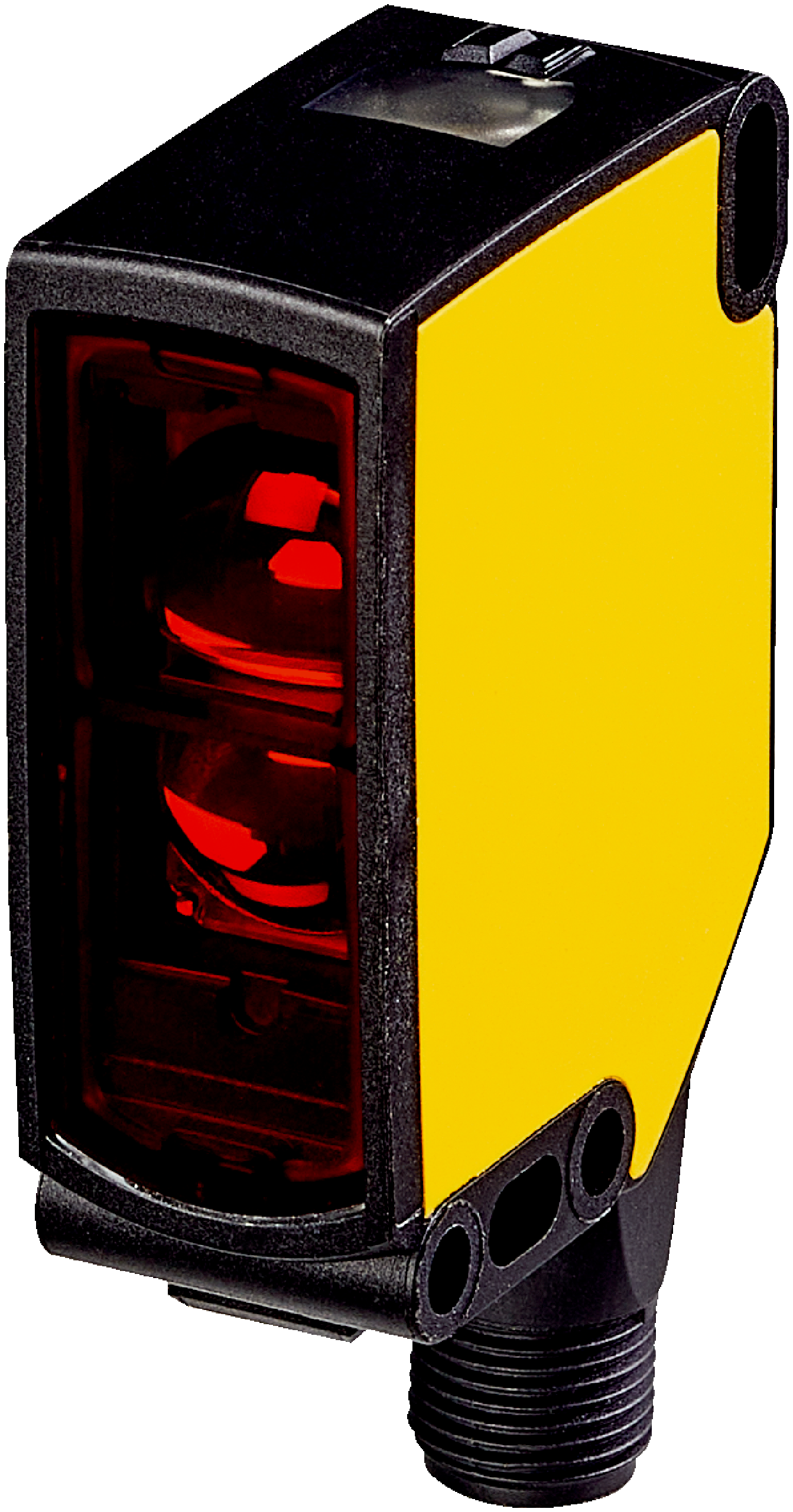

Safety light-beam sensors | L25 | WSO16P-243ZZ1A0ZZZZLLZZZZZZZZ1 | System part: Sender | Safety level: PL c, SIL 1, Type 2 | Smart Sensor: Diagnosis, efficient communication, Smart Task | Scanning range: 20 m | Light source: PinPoint LED | Type of light: Red light, visible | Housing material: VISTAL® | Connection type: Male connector M12, 4-pin | IO-Link: yes
Smart Sensor
DiagnosisEfficient communicationSmart Task
Scanning range
20 m
Number of beams
1
Detection capability
30 mm1)
Response time
0.5 ms + Test device response time
Cascading
Cascading allows up to 4 single-beam photoelectric safety switches to be connected in series. You can find response times and connection diagrams for cascading in the operating instructions.
Type
Type 2 (IEC 61496-1)1)
Safety integrity level
SIL 1 (IEC 61508)1)
Category
Category 2 (EN ISO 13849)1)
Test rate (external test)
100 /s (EN ISO 13849)
Maximum demand rate
60 min⁻¹ (EN ISO 13849)2)
Performance level
PL c (EN ISO 13849)1)
PFHD(mean probability of a dangerous failure per hour)
1.0 x 10-6(EN ISO 13849)1)
TM(mission time)
20 years (EN ISO 13849)
Connection type
Male connector M12, 4-pin, connector 270° rotatable
Configuration method
Via IO-Link
Display elements
LEDs
Alignment aid
Alignment quality via diagnostic LEDsEasy and quick sensor alignment using BluePilot
Application diagnostic output (ADO)
✔
IO-Link
✔
Data exchange via IO-Link
Device information
Configuration via IO-Link
Switching output
IO-Link master
SiLink2 Master IOLA2US-01101
Configuration software
SOPAS ET
Protection class
III (IEC 61140)
Supply voltage VS
24 V DC (19.2 V DC ... 28.8 V DC)
Residual ripple
≤ 5 V
Power consumption
≤ 30 mA
Test input voltage
≤ 3 V (Sender off)1)≥ UV- 4 V (Sender on)1)
Test input response time
≤ 1.1 ms
Design
Rectangular
Dimensions (W x H x D)
20 mm x 42 mm x 55.4 mm
Housing material
VISTAL®
Enclosure rating
IP66 (IEC 60529)IP67 (IEC 60529)IP69K (ISO 20653)
Ambient operating temperature
–40 °C ... +60 °C
Storage temperature
–40 °C ... +75 °C
Air humidity
15 % ... 95 %, Non-condensing
Vibration resistance
5 g, 10 Hz ... 55 Hz (IEC 60068-2-6)
Shock resistance
10 g, 16 ms (IEC 60068-2-27)
Light source
PinPoint LED
Type of light
Red light, visible
Wave length
635 nm
Light spot diameter (distance)
90 mm (8 m)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
ECOLAB certificate
✔
ULus approval
✔
cUL approval
✔
Photobiological safety (DIN EN 62471) certificate
✔
EC-Type-Examination approval
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
