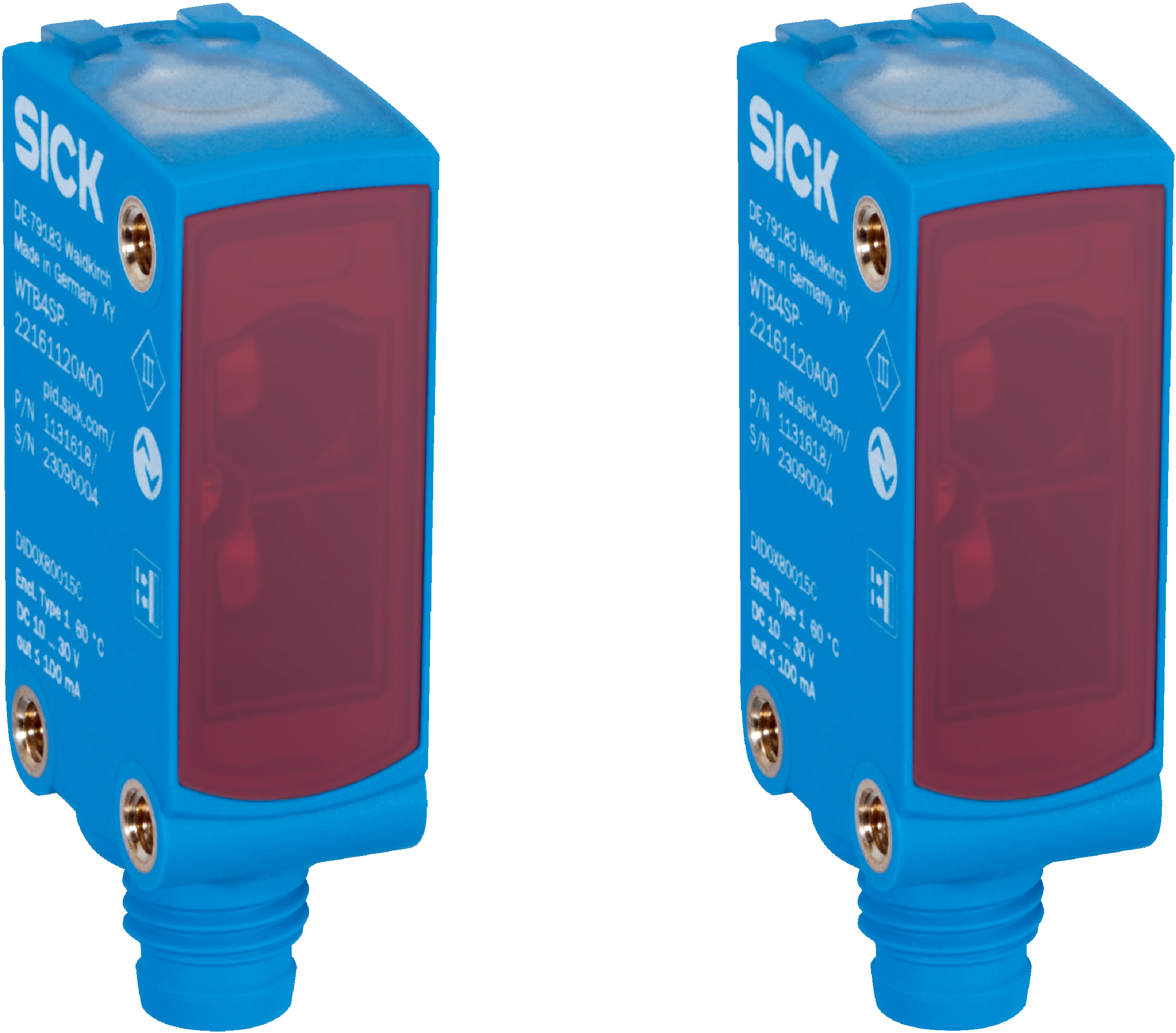

Photoelectric sensors | W4 | WSE4SP-22162800A00 | Sensing range min. / max.: 0 m / 2.5 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task name: Base logics | Special features: Pinhole Ø 2 mm on front screen | Housing: Rectangular
Functional principle
Through-beam photoelectric sensor
Sensing range min.
0 m
Sensing range max.
2.5 m
Maximum distance range from receiver to sender (operating reserve 1)
0 m ... 2.5 m
Recommended distance range from receiver to sender (operating reserve 2)
0 m ... 2 m
Recommended sensing range for the best performance
0 m ... 2 m
Light source
PinPoint LED
Type of light
Visible red light
Shape of light spot
Point-shaped
Light spot size (distance)
60 mm (2 m)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)
< +/- 1.5° (at TU= +23 °C)
Normative reference
EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking
Free group
Wave length
635 nm
Average service life
100,000 h at Ta= +25 °C
LED blue
BluePilot: Alignment aid
LED green
Operating indicatorStatic on: power onFlashing: IO-Link mode
LED yellow
Status of received light beamStatic on: object not presentStatic off: object presentFlashing: Below the 1.5 function reserve
Special features
Pinhole Ø 2 mm on front screen
Special applications
Detection of poorly remitting and tilted objects
Part number of individual components
WSO4SP-223ZZ8A0ZZZ #2142188, WEO4SP-2216280A00 #2142187
IO-Link
✔ , IO-Link V1.1
Data transmission rate
COM2 (38,4 kBaud)
Cycle time
2.3 ms
Process data length
16 Bit
Process data structure
Bit 0 = switching signal QL1
VendorID
26
DeviceID HEX
0x800367
DeviceID DEC
8389479
Supported DeviceIDs for predecessor DEZ models
8389479
Compatible master port type
A
SIO mode support
Yes
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
≤ 5 Vpp
Usage category
DC-12 (According to EN 60947-5-2)DC-13 (According to EN 60947-5-2)
Current consumption
≤ 20 mA, without load. At UB= 24 V
Protection class
III
Number
2
Type
Push-pull: PNP/NPN
Switching mode
Light/dark switching
Signal voltage PNP HIGH/LOW
Approx. UB-2.5 V / 0 V
Signal voltage NPN HIGH/LOW
Approx. UB/ < 2.5 V
Output current Imax.
≤ 100 mA
Circuit protection outputs
Reverse polarity protected
Repeatability (response time)
150 µs
Function of pin 4/black (BK)
Digital output, light switching, object present → output QL1LOW2)
Function of pin 4/black (BK) – detail
The pin 4 function of the sensor can be configured, Additional possible settings via IO-Link
Function of pin 2/white (WH)
Digital output, dark switching, object present → output ǬL1HIGH
Function of pin 2/white (WH) – detail
The pin 2 function of the sensor can be configured, Additional possible settings via IO-Link
Design detail
Slim
Dimensions (W x H x D)
12.1 mm x 41.9 mm x 18.6 mm
Connection
Male connector M8, 4-pin
Housing
Plastic, VISTAL®
Front screen
Plastic, PMMA
Male connector
Plastic, VISTAL®
Maximum tightening torque of the fixing screws
0.4 Nm
Enclosure rating
IP66 (EN 60529)IP67 (EN 60529)
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
Typ. Ambient light immunity
Artificial light: ≤ 15,000 lxSunlight: ≤ 50,000 lx
Shock resistance
30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27))
Vibration resistance
10 Hz ... 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6))
Air humidity
35 % ... 95 %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)
EN 60947-5-2
Resistance to cleaning agent
ECOLAB
UL File No.
NRKH.E181493 & NRKH7.E181493
Smart Task name
Base logics
Logic function
DirectANDOR
Timer function
DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
Inverter
Yes
Switching frequency
SIO Logic: 800 Hz1)
Response time
SIO Logic: 600 µs1)
Repeatability
SIO Logic: 200 µs1)
Switching signal QL1
Switching output
Switching signal ǬL1
Switching output
Measuring range
Very cold, cold, moderate, warm, hot
Device status
Yes
Detailed device status
Yes
Operating hour counter
Yes
Operating hours counter with reset function
Yes
Quality of teach
Yes
Quality of run
Yes, Contamination display
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
ECLASS 5.1.4
27270903
ECLASS 6.0
27270903
ECLASS 7.0
27270903
ECLASS 8.0
27270903
ECLASS 9.0
27270903
ECLASS 10.0
27270903
ECLASS 11.0
27270903
ECLASS 12.0
27270903
ECLASS 13.0
27270903
ECLASS 14.0
27270903
ECLASS 15.0
27270903
ETIM 6.0
EC002719
ETIM 7.0
EC002719
ETIM 8.0
EC002719
ETIM 9.0
EC002719
ETIM 10.0
EC002719
UNSPSC 091201.0
32151804
UNSPSC 100501.0
32151804
UNSPSC 111201.0
32151804
UNSPSC 120901.0
32151804
UNSPSC 131201.0
32151804
UNSPSC 140801.0
32151804
UNSPSC 151101.0
32151804
UNSPSC 160901.0
32151804
UNSPSC 171001.0
32151804
UNSPSC 180801.0
32151804
UNSPSC 190501.0
32151804
UNSPSC 200601.0
32151804
UNSPSC 210901.0
32151804
UNSPSC 220601.0
32151804
UNSPSC 230701.0
32151804
UNSPSC 240301.0
32151804
UNSPSC 250901.0
32151804
UNSPSC 260801.0
32151804
