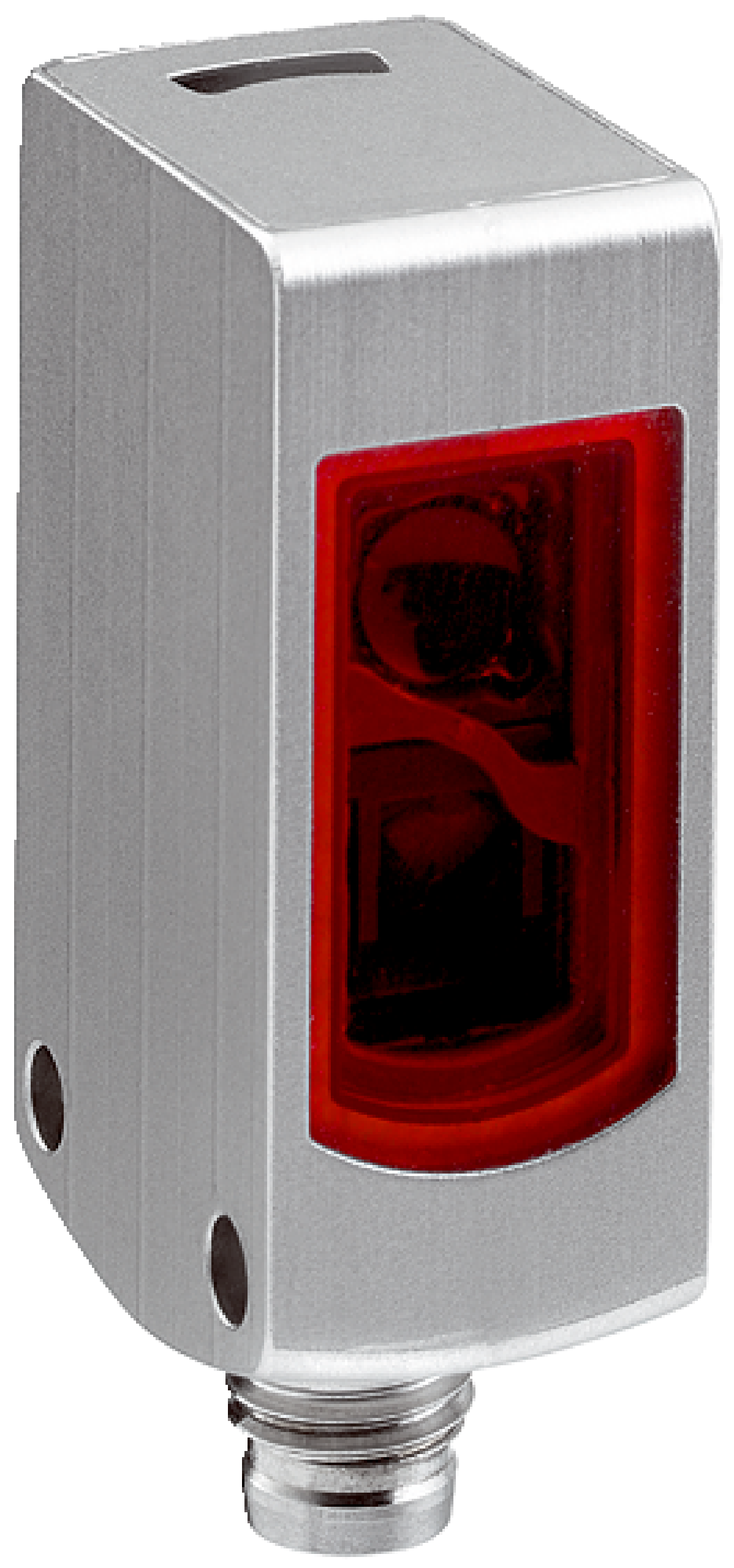

Photoelectric sensors | W4 | WSE4S-3E1330V | Sensing range max.: 0 m ... 5 m | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: None | Housing: Rectangular
Functional principle
Through-beam photoelectric sensor
Sensing range max.
0 m ... 5 m
Sensing range
0 m ... 4.5 m
Light source
PinPoint LED1)
Type of light
Visible red light
Light spot size (distance)
Ø 50 mm (2 m)
Wave length
650 nm
Adjustment
None
Special applications
Hygienic and washdown zones
Part number of individual components
2058460 WS4S-3D1330V 2058462 WE4S-3E1330V
Housing design
Washdown
MTTFD
753 years
DCavg
0 %
TM(mission time)
20 years
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Protection class
III
Type
NPN
Switching mode
Dark switching
Output current Imax.
≤ 100 mA
Response time
< 0.5 ms3)
Switching frequency
1,000 Hz4)
Circuit protection
A5)B6)C7)
Test input sender off
TE to 0 V
Design detail
Slim
Dimensions (W x H x D)
15.25 mm x 48.6 mm x 22.2 mm
Connection
Cable, 3-wire, 2 m1)
Conductor size
0.14 mm²
Length of cable (L)
2 m1)
Housing
Metal, Stainless steel V4A (1.4404, 316L)
Front screen
Plastic, PMMA
Cable
Plastic, PVC
Weight
80 g
Enclosure rating
IP66IP67IP68IP69K
Ambient operating temperature
–30 °C ... +70 °C1)
Ambient temperature, storage
–30 °C ... +75 °C
UL File No.
NRKH.E181493 & NRKH7.E181493
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
ECOLAB certificate
✔
Photobiological safety (DIN EN 62471) certificate
✔
ECLASS 5.1.4
27270903
ECLASS 6.0
27270903
ECLASS 7.0
27270903
ECLASS 8.0
27270903
ECLASS 9.0
27270903
ECLASS 10.0
27270903
ECLASS 11.0
27270903
ECLASS 12.0
27270903
ECLASS 13.0
27270903
ECLASS 14.0
27270903
ECLASS 15.0
27270903
ETIM 6.0
EC002719
ETIM 7.0
EC002719
ETIM 8.0
EC002719
ETIM 9.0
EC002719
ETIM 10.0
EC002719
UNSPSC 091201.0
32151804
UNSPSC 100501.0
32151804
UNSPSC 111201.0
32151804
UNSPSC 120901.0
32151804
UNSPSC 131201.0
32151804
UNSPSC 140801.0
32151804
UNSPSC 151101.0
32151804
UNSPSC 160901.0
32151804
UNSPSC 171001.0
32151804
UNSPSC 180801.0
32151804
UNSPSC 190501.0
32151804
UNSPSC 200601.0
32151804
UNSPSC 210901.0
32151804
UNSPSC 220601.0
32151804
UNSPSC 230701.0
32151804
UNSPSC 240301.0
32151804
UNSPSC 250901.0
32151804
UNSPSC 260801.0
32151804
