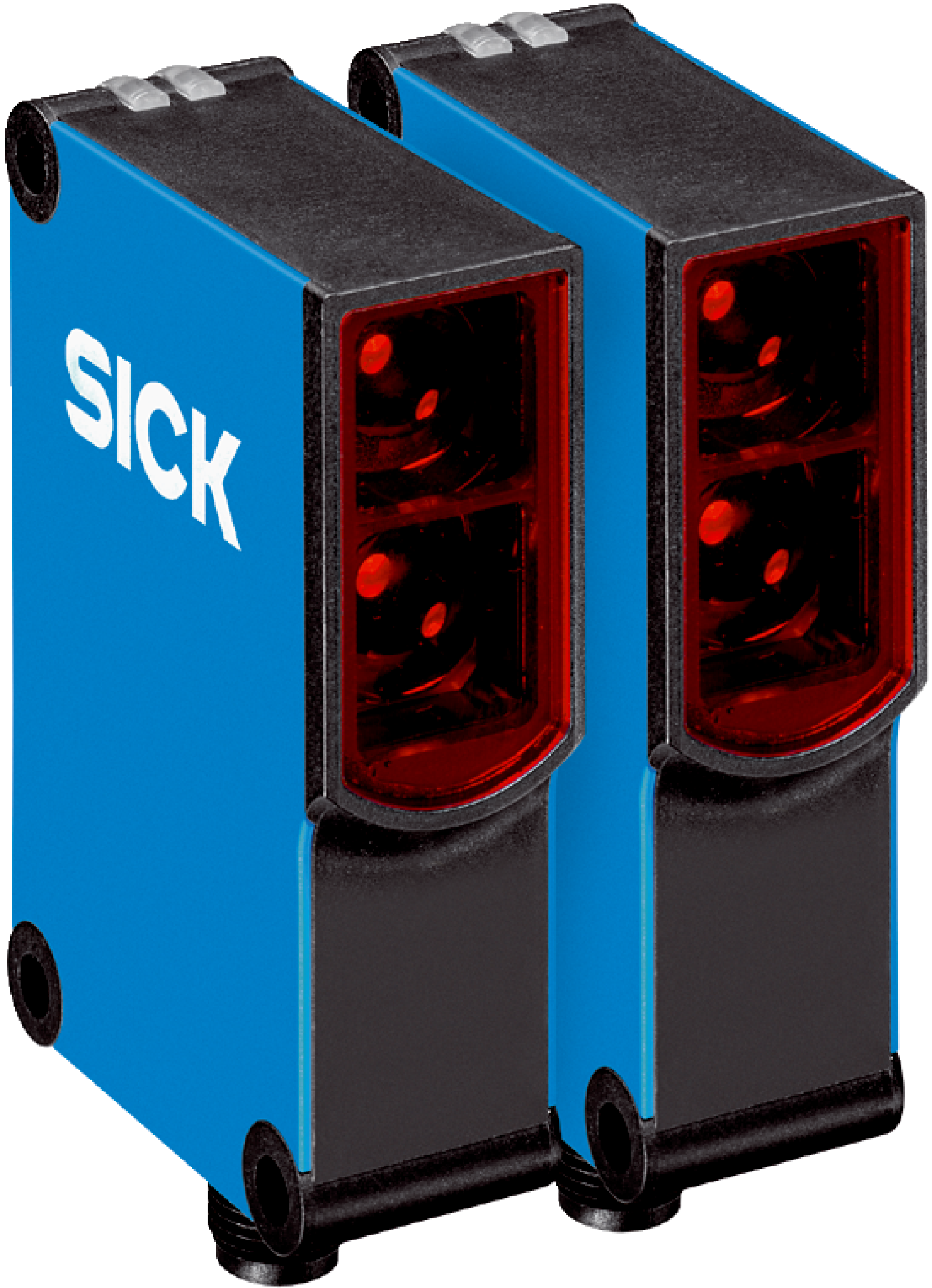

Photoelectric sensors | W27 | WSE27-3P2450 | Sensing range max.: 0 m ... 35 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Adjustment: None
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
24.6 mm x 80.6 mm x 54 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 m ... 35 m
Sensing range
0 m ... 25 m
Focus
Approx. 1.5°
Type of light
Visible red light
Light source
LED1)
Light spot size (distance)
Ø 600 mm (25 m)
Angle of dispersion
Approx. 1.5°
Wave length
645 nm
Adjustment
None
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Power consumption, sender
50 mA3)
Power consumption, receiver
35 mA3)
Switching output
PNP
Output function
Complementary
Switching mode
Light/dark switching
Signal voltage PNP HIGH/LOW
Approx. VS– 2.5 V / 0 V
Output current Imax.
≤ 100 mA
Response time
≤ 500 µs4)
Switching frequency
1,000 Hz5)
Angle of reception
Approx. 3°
Connection type
Male connector M12, 4-pin
Circuit protection
A6)B7)C8)
Protection class
II9)
Вес
200 g
Front screen heating
✔
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP69K
Test input sender off
TE to 0 V
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
UL File No.
NRKH.E181493 & NRKH7.E181493
Part number of individual components
2033598 WS27-3D2450 2033604 WE27-3P2450
MTTFD
996 years
DCavg
0 %
ECLASS 5.0
27270901
ECLASS 5.1.4
27270901
ECLASS 6.0
27270901
ECLASS 6.2
27270901
ECLASS 7.0
27270901
ECLASS 8.0
27270901
ECLASS 8.1
27270901
ECLASS 9.0
27270901
ECLASS 10.0
27270901
ECLASS 11.0
27270901
ECLASS 12.0
27270901
ETIM 5.0
EC002716
ETIM 6.0
EC002716
ETIM 7.0
EC002716
ETIM 8.0
EC002716
UNSPSC 16.0901
39121528
