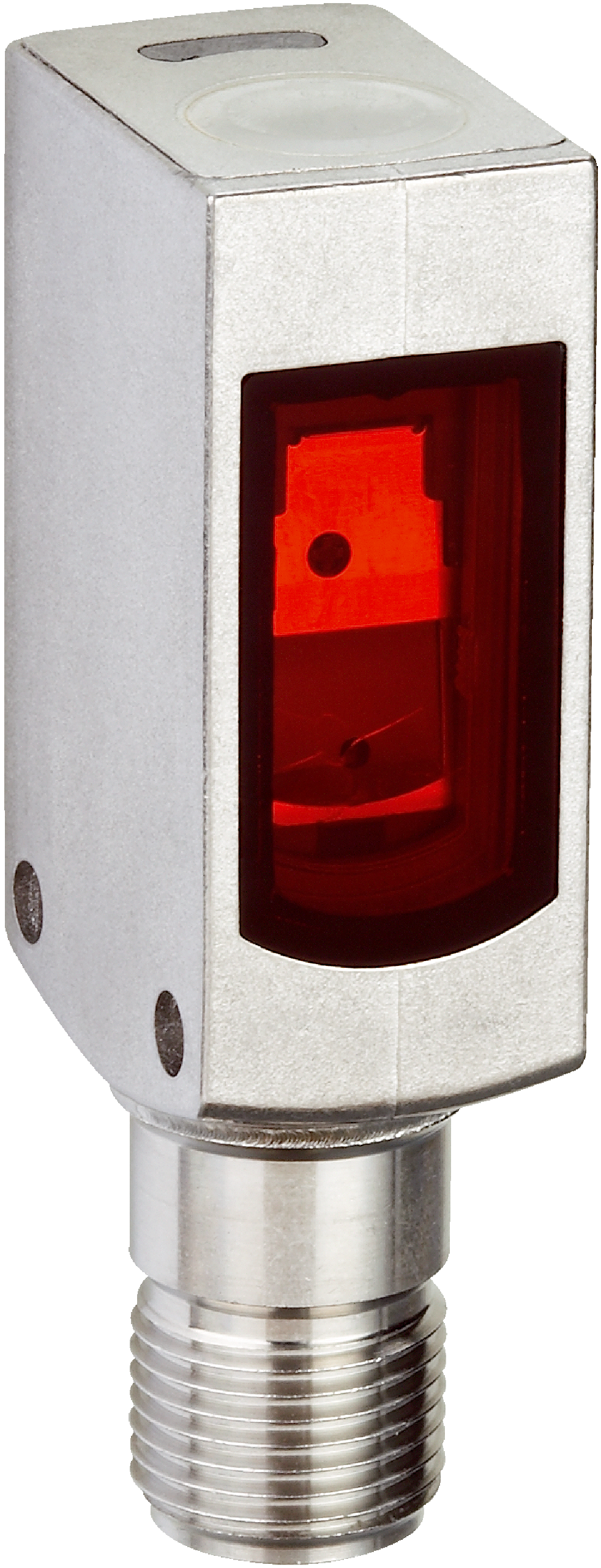

Photoelectric sensors | W4 | WL4SLG-3F2434V | Sensing range max.: 0 m ... 4.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Dark switching | Connection type: Male connector M12, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Wire/pin, Teach-in button | Housing: Rectangular
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
Without reflector minimum distance (autocollimation/coaxial optics)
Sensing range max.
0 m ... 4.5 m1)2)
Sensing range
0 m ... 2 m1)2)
Polarisation filter
Yes
Light source
Laser3)
Type of light
Visible red light
Light spot size (distance)
Ø 1 mm (500 mm)
Normative reference
EN 60825-1:2014, IEC 60825-1:2014 / CDRH 21 CFR 1040.10 & 1040.11
Laser class
14)
Wave length
650 nm
Adjustment
Cable, Single teach-in button5)
Special applications
Hygienic and washdown zones, Detecting transparent objects, Detecting small objects
Housing design
Washdown6)
Mounting hole
M3
MTTFD
655 years (EN ISO 13849-1)1)
DCavg
0 %
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Current consumption
30 mA3)
Protection class
III
Type
PNP
Switching mode
Dark switching
Output current Imax.
≤ 100 mA
Response time
≤ 0.5 ms4)
Switching frequency
1,000 Hz5)
Circuit protection
A6)B7)C8)
Design detail
Slim
Dimensions (W x H x D)
15.3 mm x 55.4 mm x 22.2 mm
Connection
Male connector M12, 4-pin1)
Housing
Metal, Stainless steel V4A (1.4404, 316L)
Front screen
Plastic, PMMA
Weight
45 g
Enclosure rating
IP66IP67IP68IP69K1)
Ambient operating temperature
–10 °C ... +50 °C
Ambient operating temperature extended
–30 °C ... +55 °C2)3)
Ambient temperature, storage
–30 °C ... +70 °C
RoHS certificate
✔
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
ECOLAB certificate
✔
Laser safety (IEC 60825-1) certificate
✔
ECLASS 5.1.4
27270903
ECLASS 6.0
27270903
ECLASS 7.0
27270903
ECLASS 8.0
27270903
ECLASS 9.0
27270903
ECLASS 10.0
27270903
ECLASS 11.0
27270903
ECLASS 12.0
27270903
ECLASS 13.0
27270903
ECLASS 14.0
27270903
ECLASS 15.0
27270903
ETIM 6.0
EC002719
ETIM 7.0
EC002719
ETIM 8.0
EC002719
ETIM 9.0
EC002719
ETIM 10.0
EC002719
UNSPSC 091201.0
32151804
UNSPSC 100501.0
32151804
UNSPSC 111201.0
32151804
UNSPSC 120901.0
32151804
UNSPSC 131201.0
32151804
UNSPSC 140801.0
32151804
UNSPSC 151101.0
32151804
UNSPSC 160901.0
32151804
UNSPSC 171001.0
32151804
UNSPSC 180801.0
32151804
UNSPSC 190501.0
32151804
UNSPSC 200601.0
32151804
UNSPSC 210901.0
32151804
UNSPSC 220601.0
32151804
UNSPSC 230701.0
32151804
UNSPSC 240301.0
32151804
UNSPSC 250901.0
32151804
UNSPSC 260801.0
32151804
