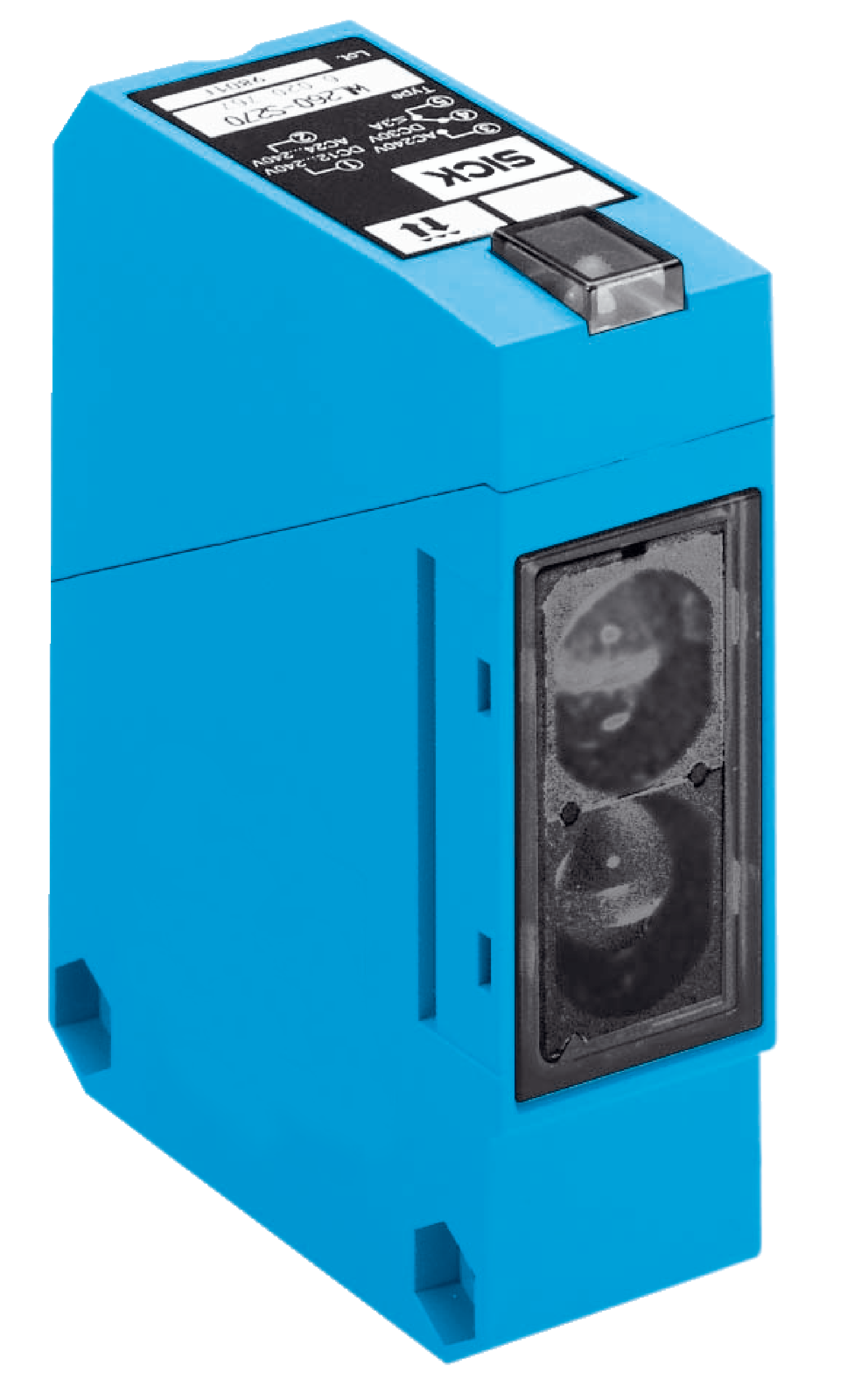

Compact photoelectric sensors | W260 | WL260-E470 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Dual lens | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Reflector P250, mounting bracket BEF-W260
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
Dual lens
Dimensions (W x H x D)
25 mm x 78 mm x 63 mm
Housing design (light emission)
Rectangular
Sensing range max.
0.01 m ... 14 m1)
Sensing range
0.01 m ... 9.5 m2)0.01 m ... 11.5 m1)
Focus
Approx. 1.7°
Type of light
Visible red light
Light source
LED3)
Light spot size (distance)
Ø 240 mm (8 m)
Angle of dispersion
Approx. 1.7°
Adjustment
Potentiometer, 270°
Supply voltage
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Current consumption
35 mA3)
Switching output
NPN
Switching mode
Light/dark switching
Switching mode selector
Selectable via light/dark selector
Output current Imax.
≤ 100 mA
Response time
≤ 1.5 ms4)
Switching frequency
333 Hz5)
Connection type
Male connector M12, 4-pin
Circuit protection
A6)B7)C8)D9)
Protection class
II10)
Weight
120 g
Polarisation filter
✔
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP67
Items supplied
Reflector P250, mounting bracket BEF-W260
Test input sender off
TE to 0 V
Ambient operating temperature
–25 °C ... +55 °C
Ambient temperature, storage
–40 °C ... +70 °C
UL File No.
NRNT2.E128350 & NRNT8.E128350
MTTFD
947 years
DCavg
0 %
