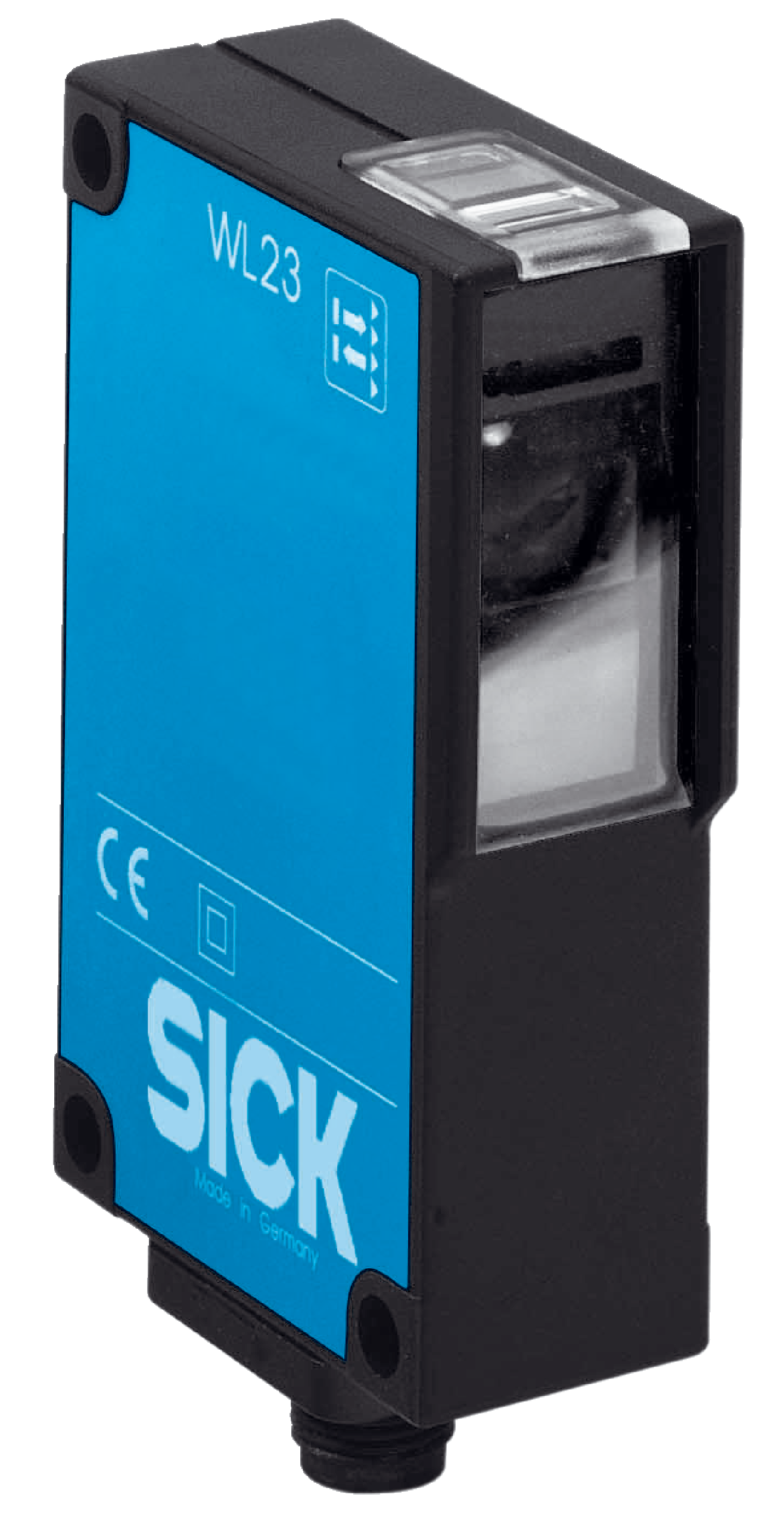

WL23-F132 | Functional principle: Photoelectric retro-reflective sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 2 m | Light source: LED | Adjustment: Potentiometer
Functional principle
Photoelectric retro-reflective sensor
Dimensions (W x H x D)
24.6 mm x 80 mm x 53.5 mm
Housing design (light emission)
Rectangular
Sensing range max.
0.1 m ... 9 m1)
Sensing range
0.1 m ... 6 m1)
Type of light
Visible red light
Light source
LED
Adjustment
Potentiometer
Supply voltage
10 V DC ... 30 V DC
Ripple
< 5 Vpp
Current consumption
25 mA1)
Switching output
PNP
Switching mode
Light/dark switching
Response time
< 2.5 ms2)
Connection type
Cable, 2 m3)
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP65
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
