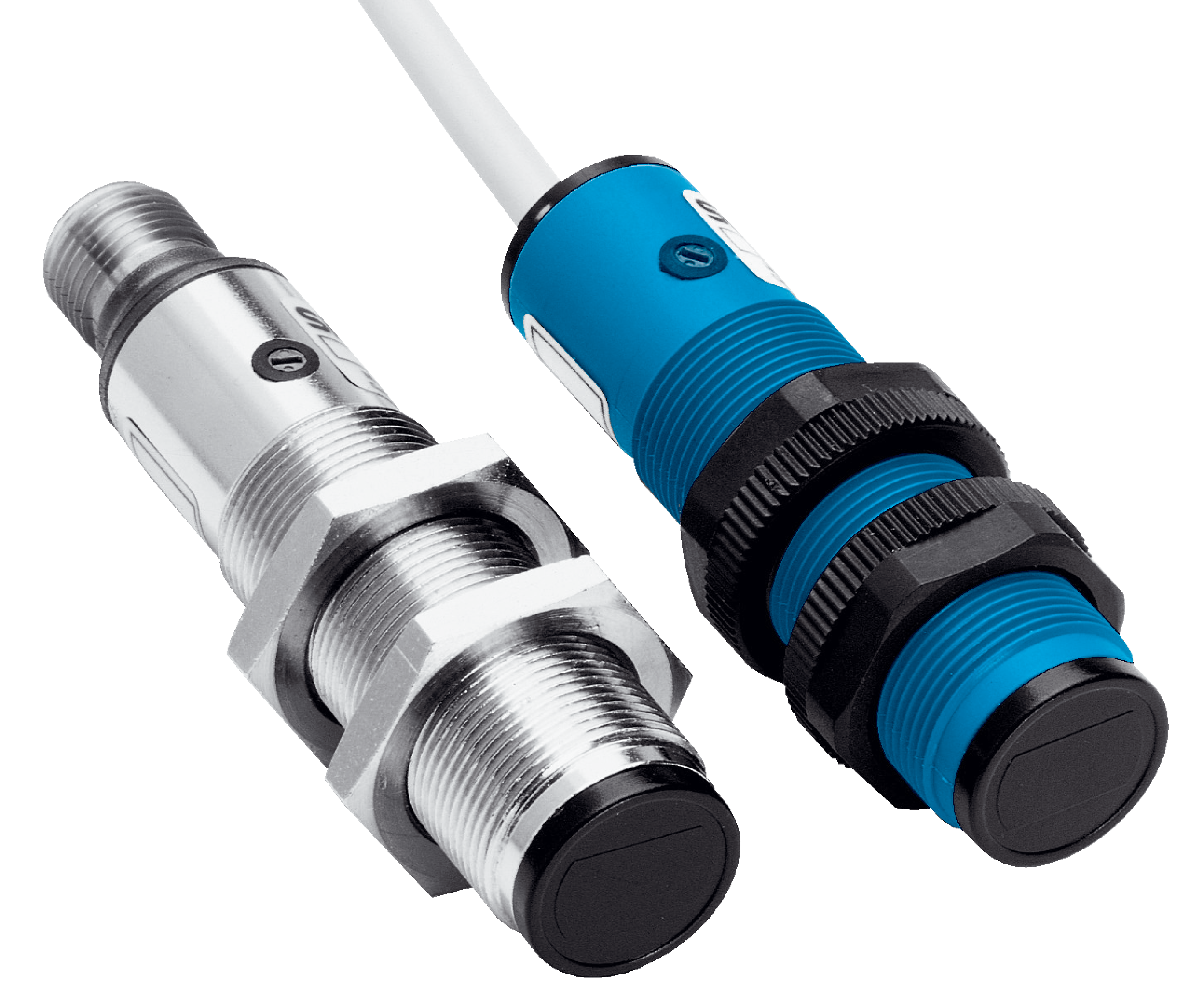

VTE18-3E4440 | Photoelectric sensors | VTE18-3E4440 | Functional principle: Photoelectric proximity sensor | Switching output: NPN | Switching mode: Light switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer
Functional principle
Photoelectric proximity sensor
Dimensions (W x H x D)
75 mm
Housing design (light emission)
Cylindrical, angled
Sensing range max.
5 mm ... 400 mm1)
Sensing range
5 mm ... 350 mm1)
Focus
2.8°
Type of light
Infrared light
Light source
LED
Angle of dispersion
2.8°
Adjustment
Potentiometer
Supply voltage UB
10 V DC ... 30 V DC
Ripple
± 10 %
Current consumption
30 mA1)
Switching output
NPN
Switching mode
Light switching
Response time
≤ 2 ms2)
Connection type
Male connector M12, 4-pin
Housing material
Metal, Brass nickel-plated, plastic
Optics material
Plastic, PMMA
Enclosure rating
IP67
Ambient operating temperature
–25 °C ... +70 °C
Ambient temperature, storage
–25 °C ... +70 °C
UL File No.
NMFT2.E175606
