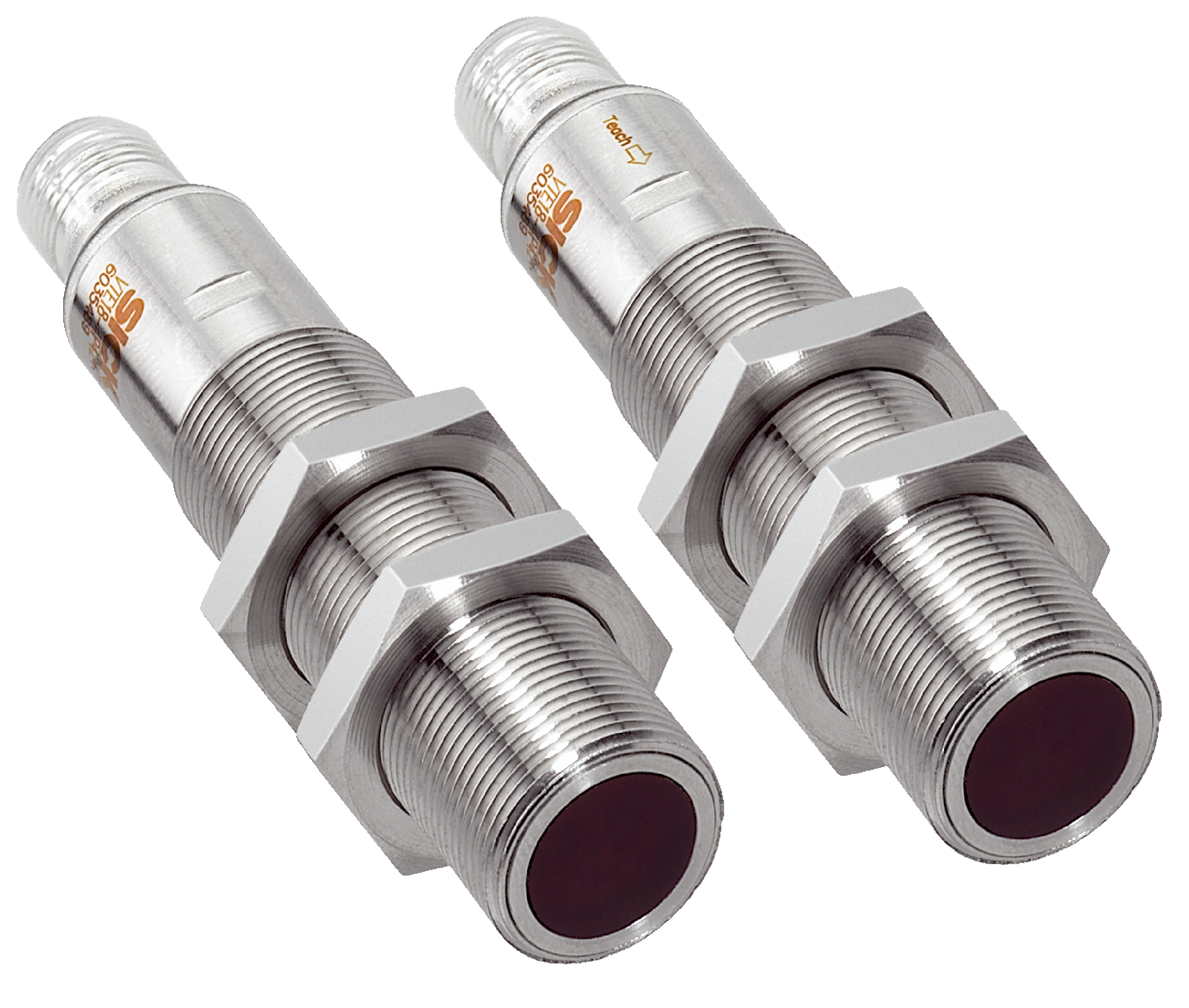

Photoelectric sensors | V18 | VS/VE18-4P3140V | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: None | Communication interface: -
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
18 mm x 18 mm x 83 mm
Housing design (light emission)
Cylindrical
Housing length
83 mm
Thread diameter (housing)
M18 x 1
Optical axis
Axial
Sensing range max.
0 m ... 20 m
Sensing range
0 m ... 18 m
Focus
2.5°
Type of light
Infrared light
Light source
LED1)
Light spot size (distance)
Ø 600 mm (15 m)
Angle of dispersion
2.5°
Wave length
880 nm
Adjustment
None
Special applications
Hygienic and washdown zones
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
± 10 %2)
Power consumption, sender
35 mA3)
Power consumption, receiver
40 mA3)
Switching output
PNP4)
Switching mode
Light/dark switching4)
Switching mode selector
Selectable via L/D control cable
Signal voltage PNP HIGH/LOW
Approx. VS – 2.0 V / 0 V
Output current Imax.
≤ 100 mA
Response time
≤ 2 ms5)
Switching frequency
250 Hz6)
Angle of reception
8°
Attenuation along light beam
≥ 20 %
Connection type
Male connector M12, 4-pin7)
Circuit protection
A8)B9)C10)D11)
Protection class
III
Kaal
240 g
Housing material
Metal, Stainless steel V4A (1.4404, 316L)
Optics material
Plastic, Plan, PPS (Grilamid)
Enclosure rating
IP67IP68IP69K12)
Test input sender off
TE to 0 V
Ambient operating temperature
–25 °C ... +80 °C13)
Ambient temperature, storage
–40 °C ... +80 °C
UL File No.
FDA, UL No. NRKH.E181493 & cUL No. NRKH7.E181493
MTTFD
415 years
DCavg
0 %
