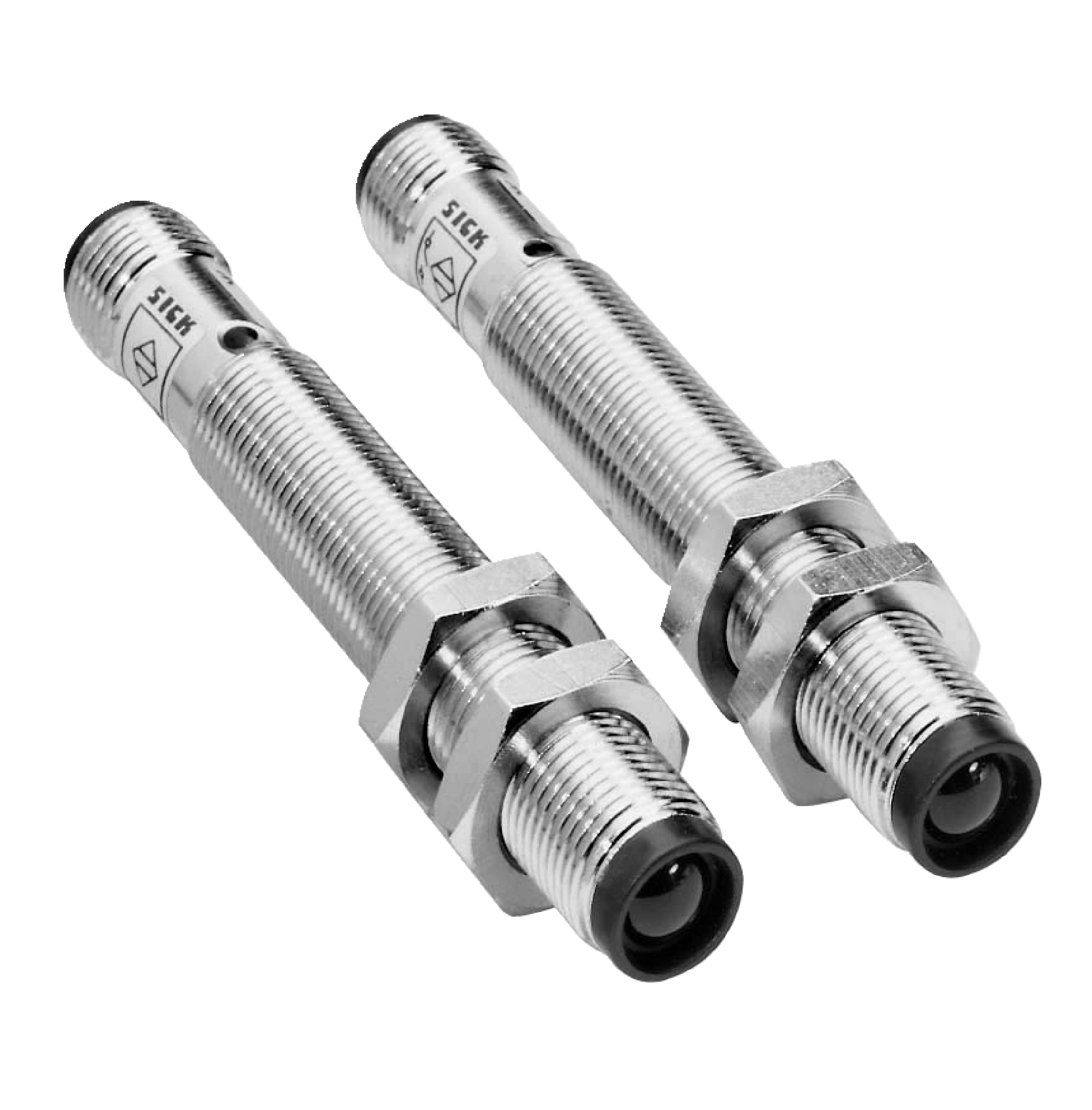

VS/VE12-1P2132 | Functional principle: Through-beam photoelectric sensor | Switching mode: Dark switching | Connection type: Cable, 2 m | Light source: LED | Adjustment: Potentiometer
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
66 mm
Housing design (light emission)
Cylindrical
Sensing range max.
0 m ... 5 m1)
Sensing range
0 m ... 4 m1)
Type of light
Visible red light
Light source
LED
Adjustment
Potentiometer
Supply voltage
10 V DC ... 30 V DC
Ripple
± 10 %
Current consumption
20 mA1)
Switching mode
Dark switching
Response time
≤ 10 ms2)
Connection type
Cable, 2 m3)
Cable material
PVC
Conductor cross section
0.14 mm²
Cable diameter
Ø 3.1 mm
Housing material
Metal, Brass nickel-plated, plastic
Optics material
Plastic, PMMA
Enclosure rating
IP67
Ambient operating temperature
–25 °C ... +70 °C
Ambient temperature, storage
–25 °C ... +70 °C
